Eaton

Eaton Distribution parts

Name: Eaton Distribution parts
Brand: Eaton
SKU: 027446

رقم القطعة: 027446

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

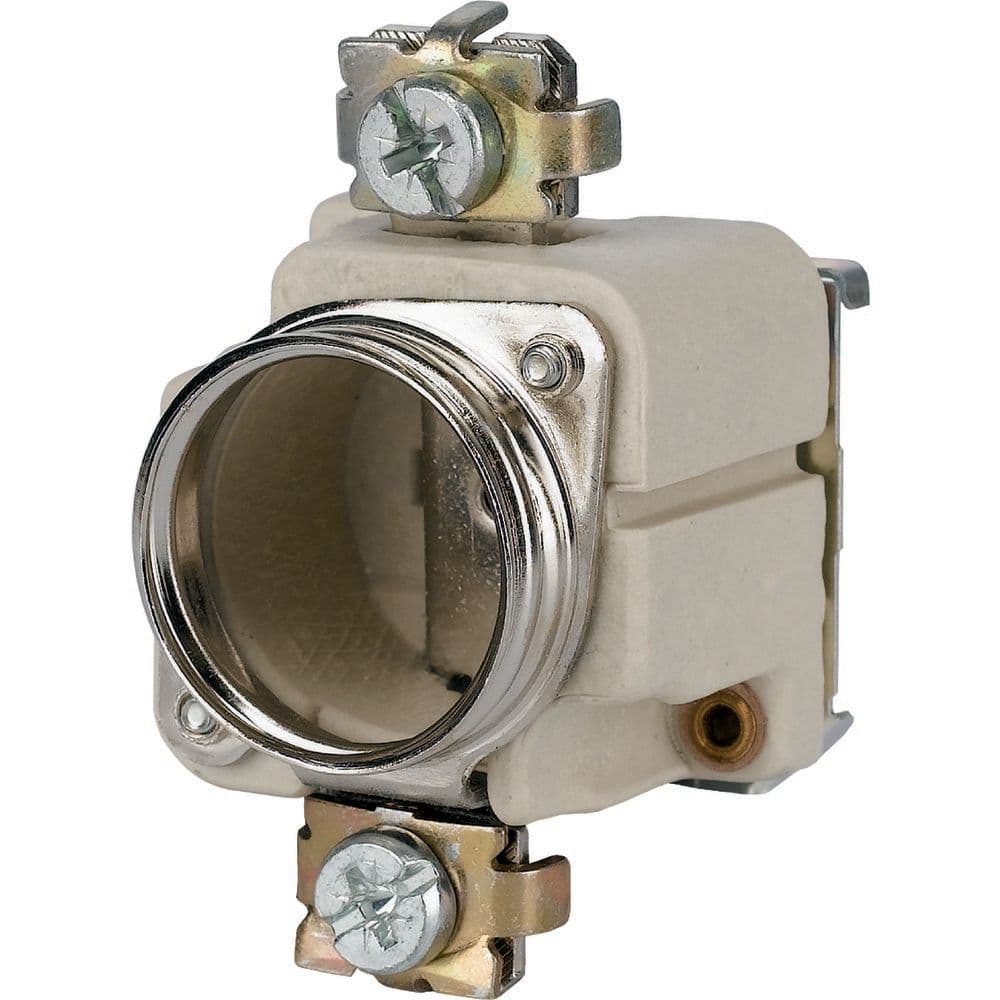

Eaton Distribution parts

المواصفات

Ambient operating temperature - max	55 °C
Ambient operating temperature - min	-25 °C
Special features	Can be snap fitted on top-hat rail to IEC/EN 60715 (35 mm)For gauge ring (gauge screw:/FORMP)Gauge rings/gauge screws, fuse-links and fuse caps not included as standardLoad carrying capacity of fuse enclosures taking into account the derating factors to IEC/EN 60439 and VDE 0660 Part 500 and Part 504, and the cross-sections of the incoming cable.
Product Name	Eaton Distribution parts
Catalog Number	027446
Model Code	S33-1/C/FORMP
EAN	4015080274469
Product Length/Depth	80 mm
Product Height	79 mm
Product Width	45 mm
Product Weight	0.148 kg
Compliances	DIN 49524 (gauge ring system) VDE 0636 (protective covers) DIN 49326 (gauge ring system) DIN 49327 (gauge ring system) DIN 49510 (RS27 (33)-3/FORMP gauge screw system) CEE 16 (fuse bases: S27(-1), S33(-1)) VDE 0636 (fuse bases: S27(-1), S33(-1)) RoHS conform
Source URL	https://www.eaton.com/gb/en-gb/skuPage.027446.html
Used with	Fuse bases 1 pole Fuse bases
Type	Fuse basesFuse bases 1 pole
Ambient operating temperature details	-5 °C - 25 °C (40 °C, where annual and 24-hour mean value ≦ 35 °C)
Mounting method	DIN rail
Material	Plastic
Model	Fitted screw
Mounting position	As required
Number of poles	Single-pole
Amperage Rating	63 A
Voltage rating at AC	660 V AC690 V ACContacts: 690 V ACRelay contacts: 660 V AC at AC-15Relay contacts: 690 V AC at AC-15
Rated operational voltage (Ue) - max	690 V
Current heat loss per contact at rated uninterrupted current lu	7.5 W
Rated uninterrupted current (Iu)	63 A
Construction size	DIII
Creepage and clearance distances	VDE 0636 Part 31 (Standard)
Fuse cartridge	DIII, E33
Rated operation current (Ie)	63 A
Voltage rating	690 V
Terminal capacity (solid wire)	2.5 mm² - 16 mm² at box terminal 2.5 mm² - 16 mm²
Terminal capacity (stranded cable)	1.5 mm² - 25 mm² with ferrule
