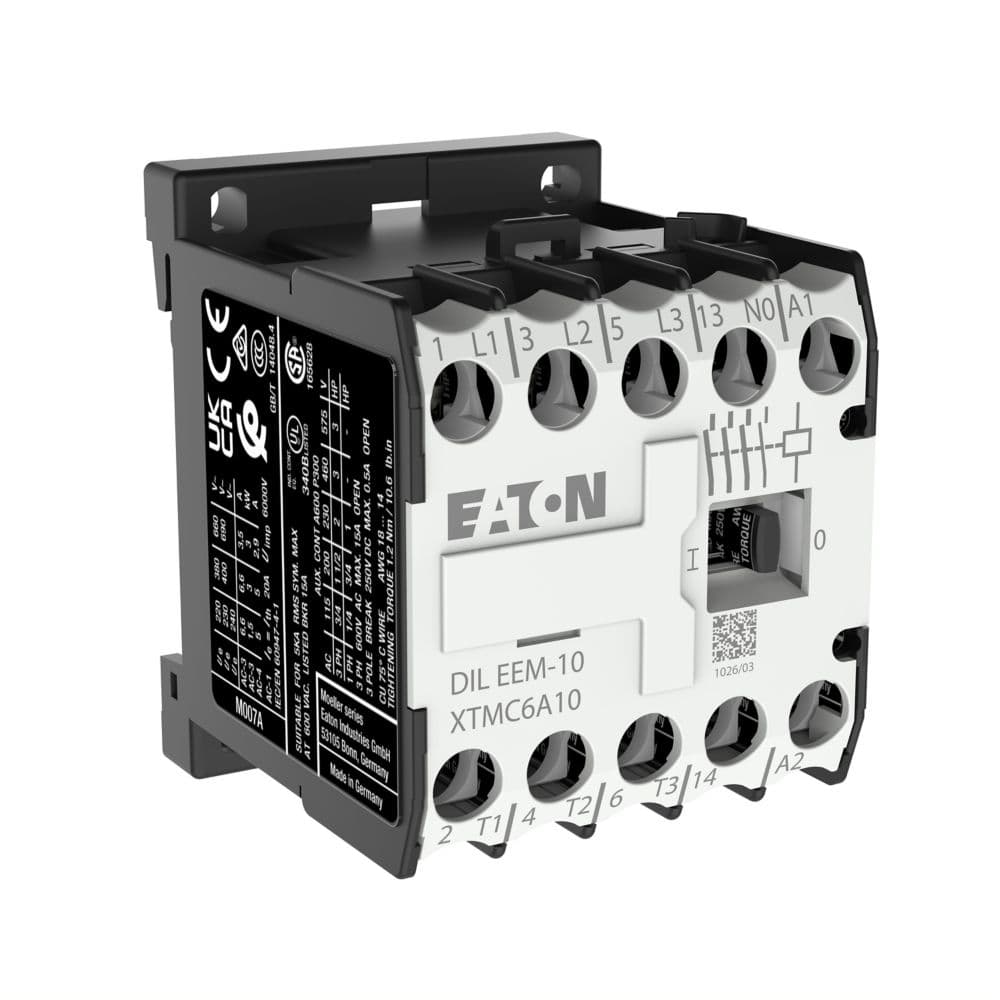

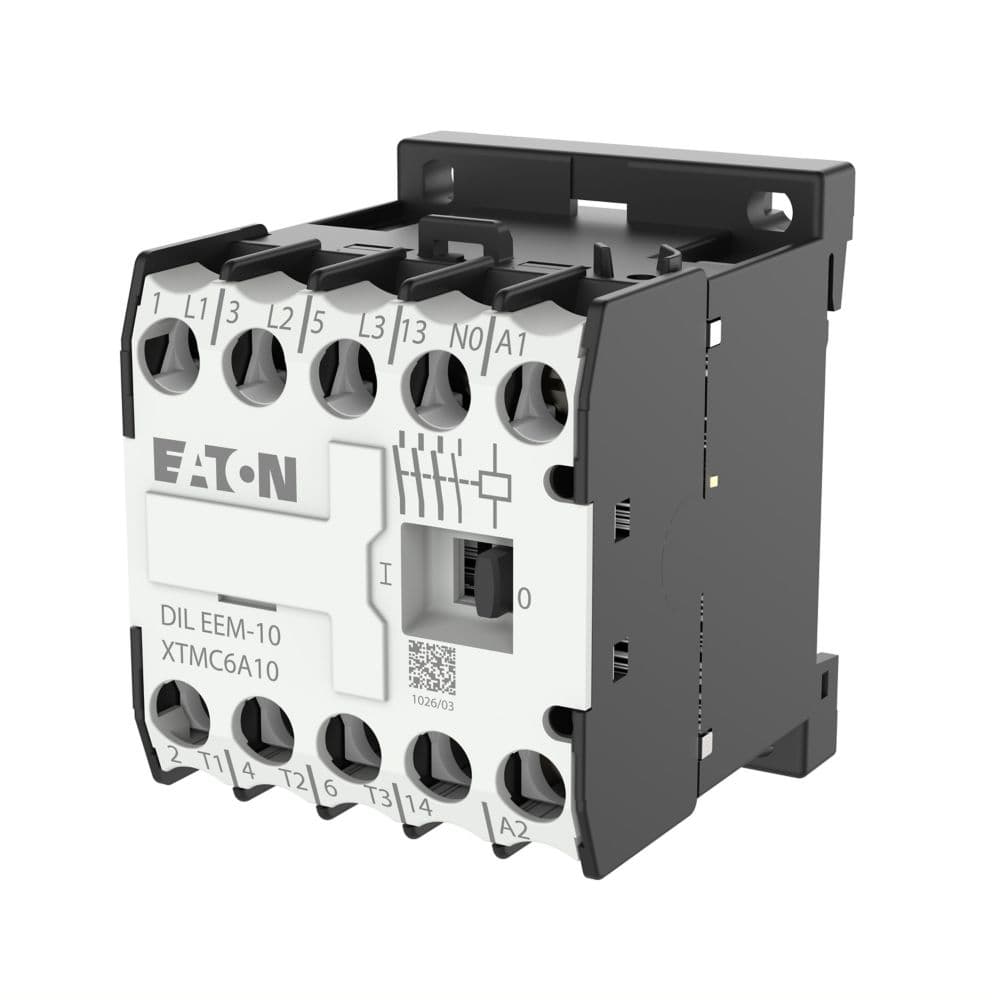

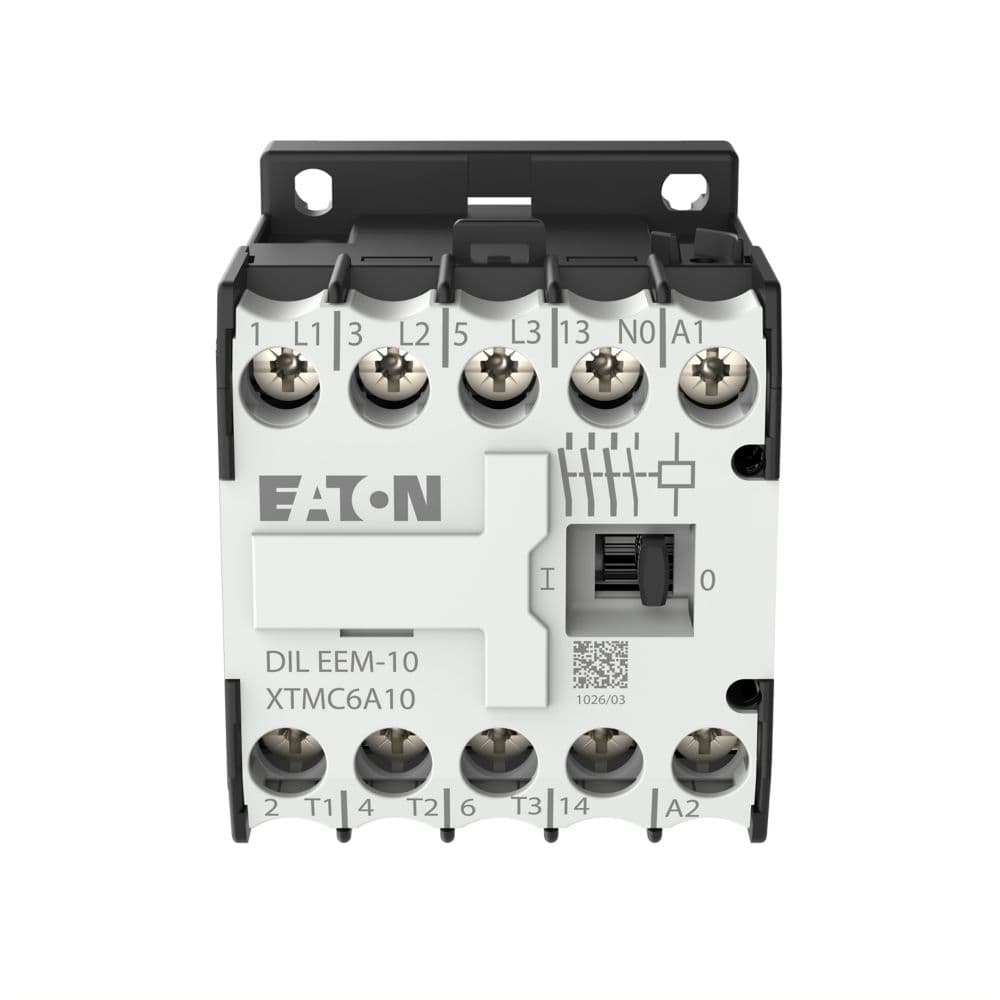

Eaton Moeller® series DILEEM Mini contactor

Name: Eaton Moeller® series DILEEM Mini contactor
Brand: Eaton
SKU: 051606

رقم القطعة: 051606

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series DILEEM Mini contactor

Ambient operating temperature (enclosed) - max	40 °C
Ambient operating temperature (enclosed) - min	-25 °C
Ambient operating temperature - max	50 °C
Ambient operating temperature - min	-25 °C
Ambient storage temperature - max	80 °C
Ambient storage temperature - min	-40 °C
Climatic proofing	Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78
Product Name	Eaton Moeller® series DILEEM Mini contactor
Catalog Number	051606
Model Code	DILEEM-10(400V50HZ,440V60HZ)
EAN	4015080516064
Product Length/Depth	52 mm
Product Height	58 mm
Product Width	45 mm
Product Weight	0.17 kg
Certifications	CE CSA-C22.2 No. 14-05 UL 508 UL UL Category Control No.: NLDX IEC/EN 60947 CSA CSA File No.: 012528 VDE 0660 CSA Class No.: 3211-04 IEC/EN 60947-4-1 UL File No.: E29096
Source URL	https://www.eaton.com/gb/en-gb/skuPage.051606.html
Catalog Notes	Also tested according to AC-3e.
