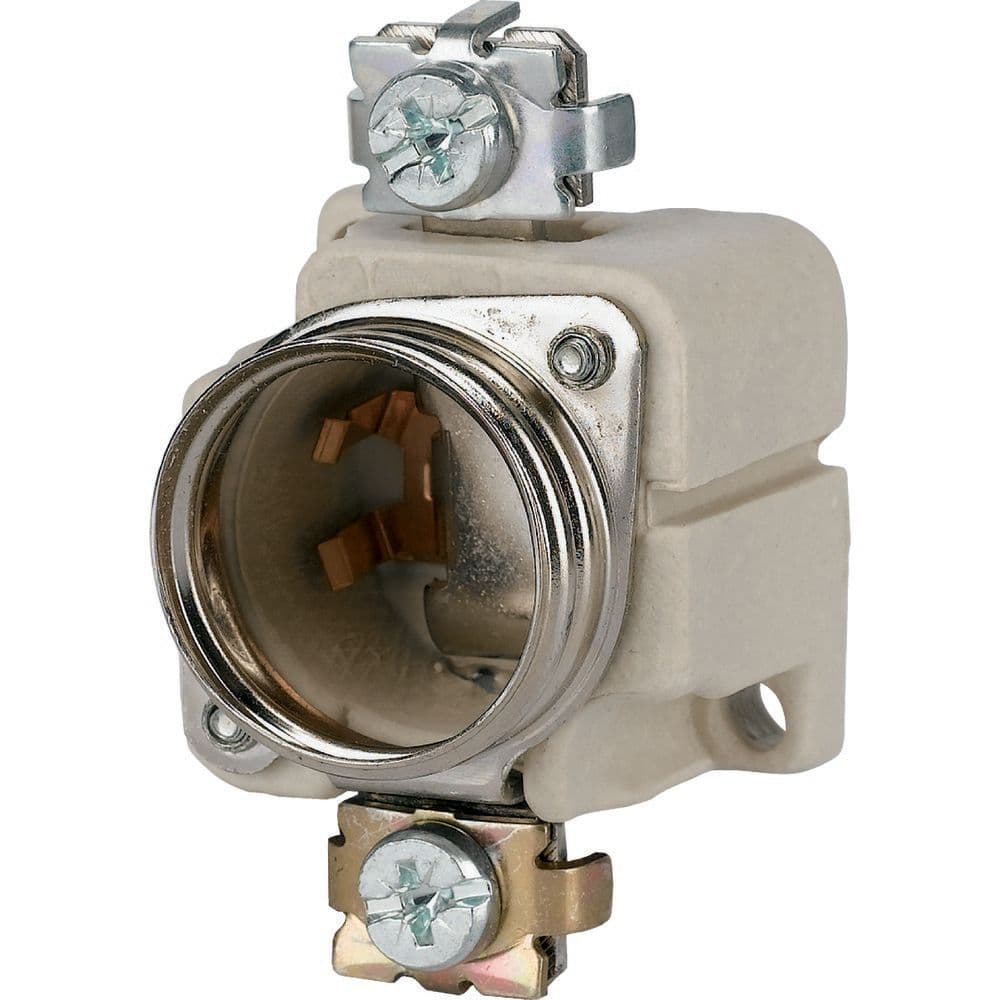

Eaton Distribution parts

Eaton

Eaton Distribution parts

رقم القطعة: 069595

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Distribution parts

المواصفات

Ambient operating temperature - max55 °C
Ambient operating temperature - min-25 °C
Special featuresFor gauge ring (gauge screw:/FORMP)Gauge rings/gauge screws, fuse-links and fuse caps not included as standardLoad carrying capacity of fuse enclosures taking into account the derating factors to IEC/EN 60439 and VDE 0660 Part 500 and Part 504, and the cross-sections of the incoming cable.Screw fixing (holes for M4 screws)
Product NameEaton Distribution parts
Catalog Number069595
Model CodeS33-1
EAN4015080695950
Product Length/Depth80 mm
Product Height79 mm
Product Width45 mm
Product Weight0.15 kg
CompliancesDIN 49524 (gauge ring system) VDE 0636 (fuse bases: S27(-1), S33(-1)) VDE 0636 (protective covers) DIN 49327 (gauge ring system) DIN 49510 (RS27 (33)-3/FORMP gauge screw system) CEE 16 (fuse bases: S27(-1), S33(-1)) DIN 49326 (gauge ring system) RoHS conform
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.069595.html
Used withFuse bases Fuse bases 1 pole
TypeFuse basesFuse bases 1 pole
Ambient operating temperature details-5 °C - 25 °C (40 °C, where annual and 24-hour mean value ≦ 35 °C)
Mounting methodScrew
MaterialPlastic
ModelFitted ring
Mounting positionAs required
Number of polesSingle-pole
Amperage Rating63 A
Voltage rating at AC660 V AC690 V ACContacts: 690 V ACRelay contacts: 660 V AC at AC-15Relay contacts: 690 V AC at AC-15
Rated operational voltage (Ue) - max690 V
Current heat loss per contact at rated uninterrupted current lu7.5 W
Rated uninterrupted current (Iu)63 A
Construction sizeDIII
Creepage and clearance distancesVDE 0636 Part 31 (Standard)
Fuse cartridgeDIII, E33
Rated operation current (Ie)63 A
Voltage rating690 V
Terminal capacity (solid wire)2.5 mm² - 16 mm² 2.5 mm² - 16 mm² at box terminal
Terminal capacity (stranded cable)1.5 mm² - 25 mm² with ferrule
