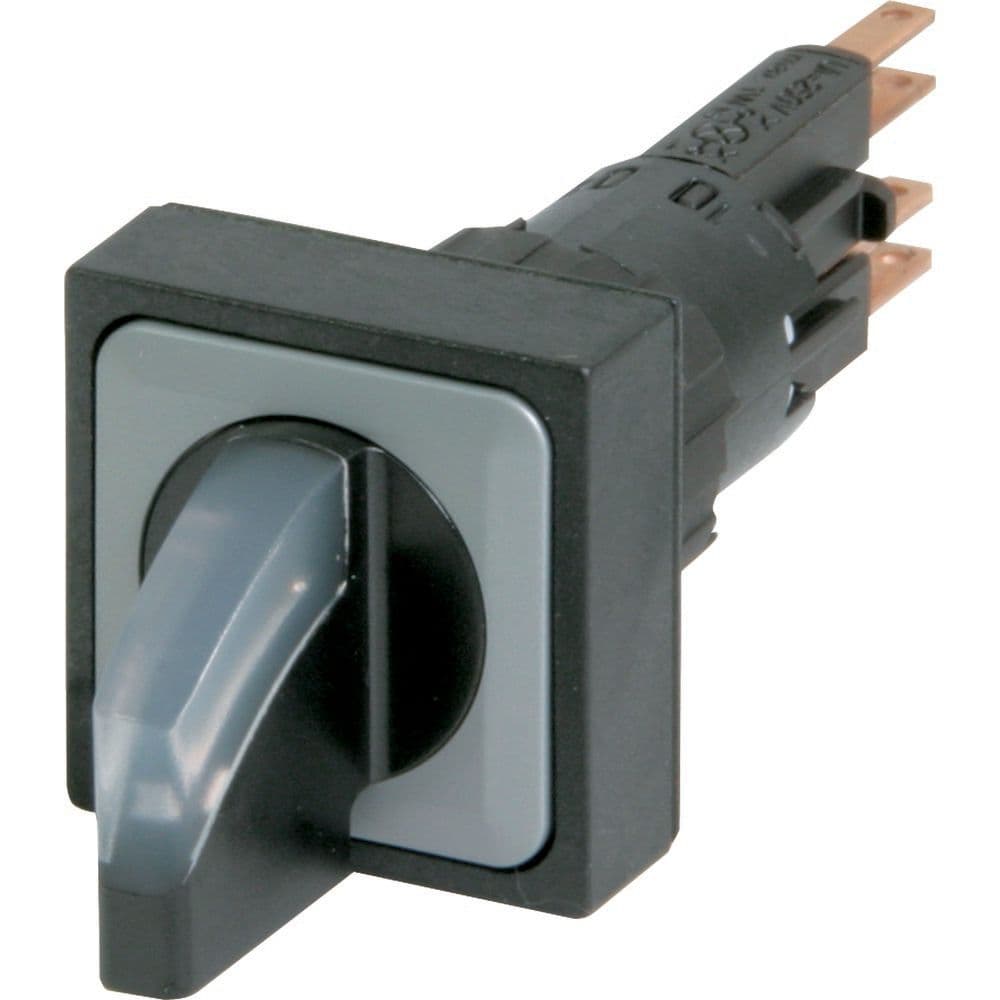

Eaton Moeller® series RMQ16 Illuminated selector switch actuator

Eaton

Eaton Moeller® series RMQ16 Illuminated selector switch actuator

رقم القطعة: 072361

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series RMQ16 Illuminated selector switch actuator

المواصفات

Ambient operating temperature (enclosed) - max40 °C
Ambient operating temperature (enclosed) - min25 °C
Ambient operating temperature - max60 °C
Ambient operating temperature - min-25 °C
Climatic proofingDamp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30
Product NameEaton Moeller® series RMQ16 Illuminated selector switch actuator
Catalog Number072361
Model CodeQ25LWK3R-WS
EAN4015080723615
Product Length/Depth75 mm
Product Height25 mm
Product Width25 mm
Product Weight0.017 kg
CertificationsUL 508 UL CSA Class No.: 3211-03 UL Category Control No.: NKCR CSA-C22.2 No. 14-05 IEC/EN 60947 CSA CSA File No.: 46552 CE IEC/EN 60947-5 UL File No.: E29184
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.072361.html
Catalog NotesFilament bulb or LED needs to be ordered separately
Actuator functionSwitching function latching Maintained
Actuator typeToggle
Number of switch positions3
Actuator colorBlack
Suitable forIllumination
TypeIlluminated selector switch actuator
10.10 Temperature riseNot applicable.
10.11 Short-circuit ratingIs the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibilityIs the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical functionThe device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistanceMeets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosuresMeets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heatMeets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effectsMeets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiationPlease enquire
10.2.5 LiftingDoes not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impactDoes not apply, since the entire switchgear needs to be evaluated.
10.2.7 InscriptionsMeets the product standard's requirements.
10.3 Degree of protection of assembliesDoes not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distancesMeets the product standard's requirements.
10.5 Protection against electric shockDoes not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and componentsDoes not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connectionsIs the panel builder's responsibility.
10.8 Connections for external conductorsIs the panel builder's responsibility.
10.9.2 Power-frequency electric strengthIs the panel builder's responsibility.
10.9.3 Impulse withstand voltageIs the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating materialIs the panel builder's responsibility.
Degree of protectionNEMA 1
Fitted with:VS anti-rotation tab
Mounting positionAs required
Shock resistance40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms Mechanical, According to IEC/EN 60068-2-27
Opening diameter16 mm
Equipment heat dissipation, current-dependent Pvid0 W
Heat dissipation capacity Pdiss0 W
Heat dissipation per pole, current-dependent Pvid0 W
Rated operational current for specified heat dissipation (In)0 A
Static heat dissipation, non-current-dependent Pvs0 W
Product categoryRMQ16
Connection to SmartWire-DTNo
DesignWith thumb-grip
Pollution degree3
Rated insulation voltage (Ui)250 V
Overvoltage categoryIII
Operating frequency1800 Operations/h
Opening height0 mm
Operating torque0.2 Nm
Rated operational voltage (Ue) at AC - max24 V
Switching angle45 °
Width opening0 mm
Rated impulse withstand voltage (Uimp)800 V AC
Bezel colorBlack
Bezel materialPlastic
Terminal capacity0.5 - 1.0 mm²
Terminal size2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors 2.8 x 0.8 mm to DIN 46244, Blade terminal
Control circuit reliability1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA) 1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)
Degree of protection (front side)IP65
Indicator colorWhite
Lens typeSquare
Lifespan, mechanical3,000,000 Operations
SizeFront dimensions: 25 × 25 mm
