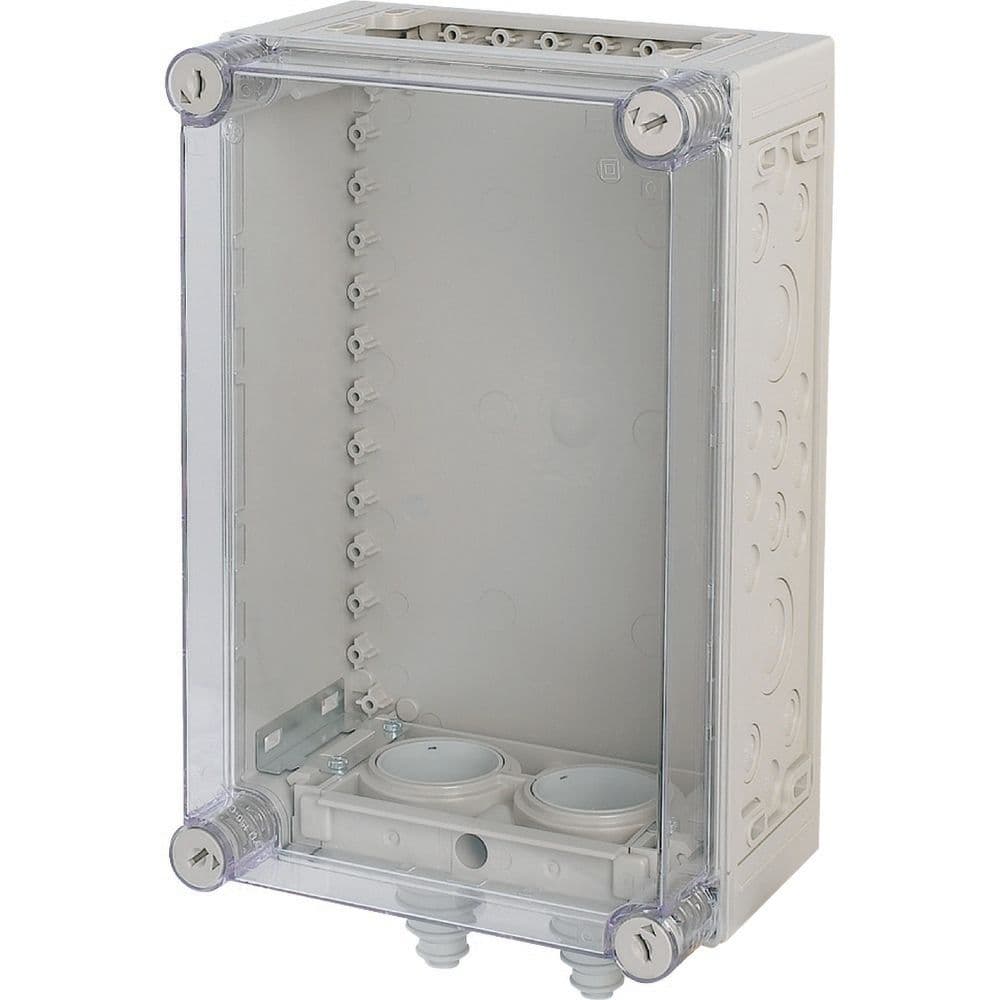

Eaton xEnergy Safety Ci empty enclosure insulated

Eaton

Eaton xEnergy Safety Ci empty enclosure insulated

رقم القطعة: 074520

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton xEnergy Safety Ci empty enclosure insulated

المواصفات

FunctionsExtension possible
RAL-number7035
Special featuresLow-voltage fuses (IEC/EN 60269, VDE 0636) Sealable cover fasteners Sides closed, but with full area knockout Open top Fitting of cable supports in the distribution board with wedge-lock fastener Gland plate can be split, cables can be inserted from the front
Product NameEaton xEnergy Safety Ci empty enclosure insulated
Catalog Number074520
Model CodeKST34-150
EAN4015080745204
Product Length/Depth175 mm
Product Height375 mm
Product Width250 mm
Product Weight2.307 kg
CompliancesIEC/EN 60439-1, VDE 0660 Part 500 RoHS conform
CertificationsEN 62208 EN 61439-2
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.074520.html
Suitable forLightning protection Outdoor use
Used withThe reference values indicated in the table apply to the basic elements of the distribution board. As far as devices, terminals etc. fitted into the enclosures are concerned, their own specific technical data and rated values apply.
FeaturesCover with overpressure release
Protection classII
Flammability characteristics of glow rod testVDE 0304 Part 3 level IIb, level IIb to IEC 60707
