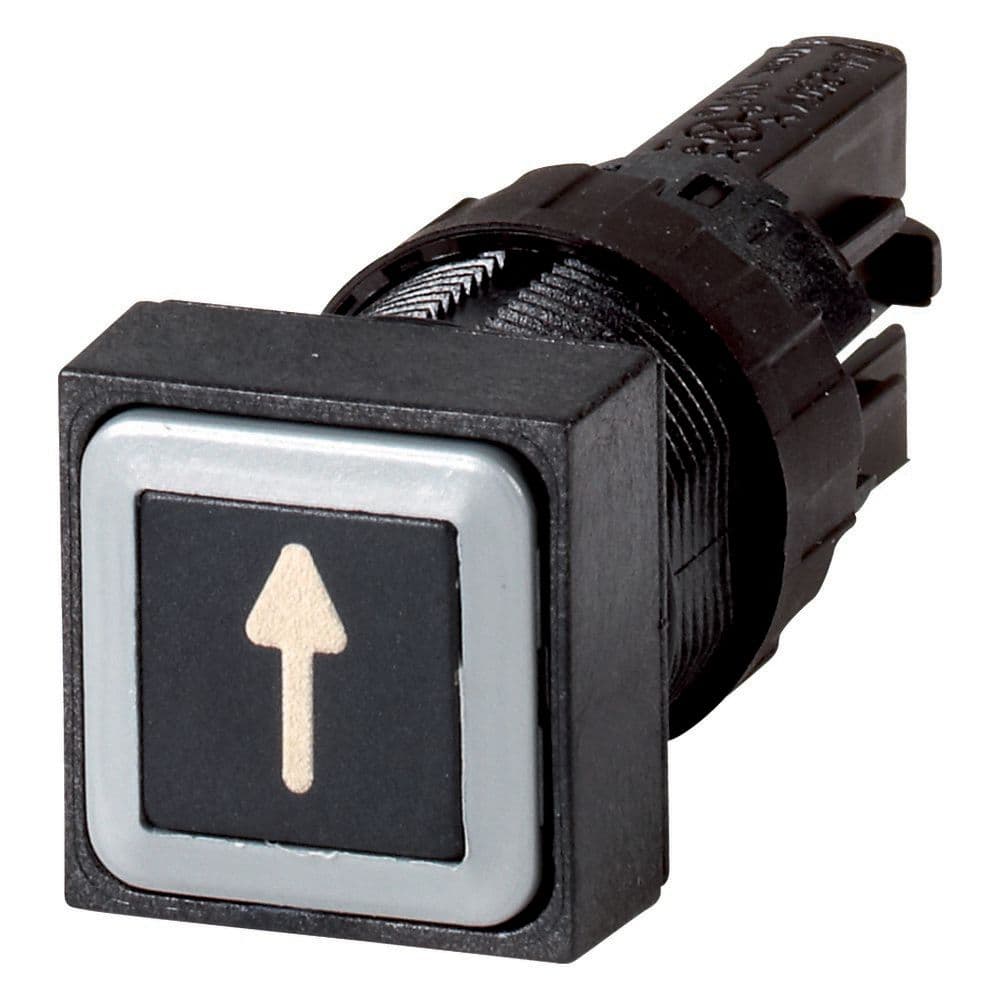

Eaton Moeller® series RMQ16 Pushbutton

Eaton

Eaton Moeller® series RMQ16 Pushbutton

رقم القطعة: 079395

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series RMQ16 Pushbutton

المواصفات

Ambient operating temperature (enclosed) - max40 °C
Ambient operating temperature (enclosed) - min25 °C
Ambient operating temperature - max60 °C
Ambient operating temperature - min25 °C
Product NameEaton Moeller® series RMQ16 Pushbutton
Catalog Number079395
Model CodeQ18D-32
EAN4015080793953
Product Length/Depth50 mm
Product Height18 mm
Product Width18 mm
Product Weight0.007 kg
CertificationsVDE 0660 IEC/EN 60947
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.079395.html
Actuator functionSpring-return
Actuator colorBlack
FeaturesLabelled
TypePushbutton actuator
10.10 Temperature riseNot applicable.
10.11 Short-circuit ratingIs the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibilityIs the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical functionThe device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistanceMeets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosuresMeets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heatMeets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effectsMeets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiationPlease enquire
10.2.5 LiftingDoes not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impactDoes not apply, since the entire switchgear needs to be evaluated.
10.2.7 InscriptionsMeets the product standard's requirements.
10.3 Degree of protection of assembliesDoes not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distancesMeets the product standard's requirements.
10.5 Protection against electric shockDoes not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and componentsDoes not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connectionsIs the panel builder's responsibility.
10.8 Connections for external conductorsIs the panel builder's responsibility.
10.9.2 Power-frequency electric strengthIs the panel builder's responsibility.
10.9.3 Impulse withstand voltageIs the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating materialIs the panel builder's responsibility.
Degree of protectionIP65
Fitted with:Front ring
Mounting positionAs required
Shock resistanceMechanical, According to IEC/EN 60068-2-27 40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Opening diameter16 mm
Equipment heat dissipation, current-dependent Pvid0 W
Heat dissipation capacity Pdiss0 W
Heat dissipation per pole, current-dependent Pvid0 W
Rated operational current for specified heat dissipation (In)0 A
Static heat dissipation, non-current-dependent Pvs0 W
Product categoryRMQ16
Connection to SmartWire-DTNo
Opening height0 mm
Width opening0 mm
Bezel colorBlack
Bezel materialPlastic
Degree of protection (front side)NEMA 1 IP65
Lens typeSquare
Lifespan, mechanical3,000,000 Operations
Number of command positions1
Actuating force4 N
Front element typeFlat
