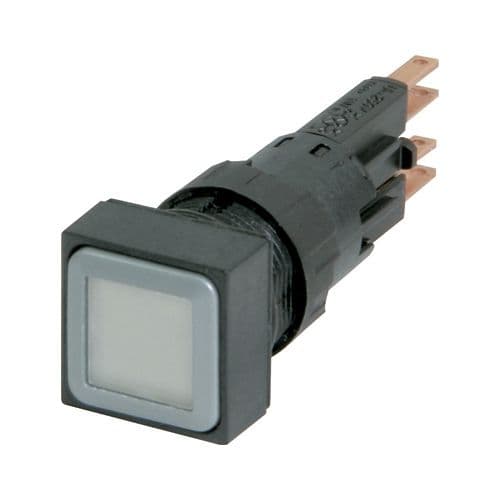

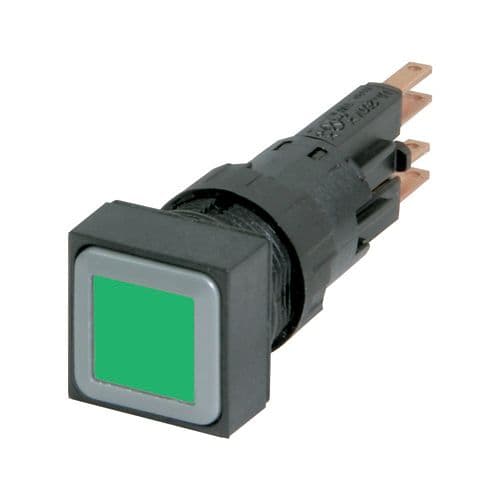

Eaton Moeller® series RMQ16 Illuminated pushbutton actuator

Name: Eaton Moeller® series RMQ16 Illuminated pushbutton actuator
Brand: Eaton
SKU: 089102

رقم القطعة: 089102

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series RMQ16 Illuminated pushbutton actuator

المواصفات

Ambient operating temperature (enclosed) - max	40 °C
Ambient operating temperature (enclosed) - min	-25 °C
Ambient operating temperature - max	60 °C
Ambient operating temperature - min	-25 °C
Climatic proofing	Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78
Product Name	Eaton Moeller® series RMQ16 Illuminated pushbutton actuator
Catalog Number	089102
Model Code	Q25LT-BL/WB
EAN	4015080891024
Product Length/Depth	59 mm
Product Height	25 mm
Product Width	25 mm
Product Weight	0.011 kg
Certifications	UL Category Control No.: NKCR CSA File No.: 46552 UL 508 CSA Class No.: 3211-03 IEC/EN 60947 UL IEC/EN 60947-5 CE CSA CSA-C22.2 No. 14-05 UL File No.: E29184
Source URL	https://www.eaton.com/gb/en-gb/skuPage.089102.html
Actuator function	Momentary Spring-return
Actuator color	Blue
Suitable for	Illumination
Type	Illuminated pushbutton actuator
10.10 Temperature rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance	Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation	Please enquire
10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions	Meets the product standard's requirements.
10.3 Degree of protection of assemblies	Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances	Meets the product standard's requirements.
10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
10.8 Connections for external conductors	Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength	Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage	Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material	Is the panel builder's responsibility.
Degree of protection	NEMA 1 IP65
Fitted with:	Filament bulb (24 V)
Mounting position	As required
Shock resistance	40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms Mechanical, According to IEC/EN 60068-2-27
Opening diameter	16 mm
Equipment heat dissipation, current-dependent Pvid	0 W
Heat dissipation capacity Pdiss	0 W
Heat dissipation per pole, current-dependent Pvid	0 W
Rated operational current for specified heat dissipation (In)	0 A
Static heat dissipation, non-current-dependent Pvs	1 W
Product category	RMQ16
Connection to SmartWire-DT	No
Design	Flat
Pollution degree	3
Rated insulation voltage (Ui)	250 V
Overvoltage category	III
Operating frequency	3600 Operations/h
Opening height	0 mm
Rated operational voltage (Ue) at AC - max	24 V
Width opening	0 mm
Rated impulse withstand voltage (Uimp)	800 V AC
Bezel color	Black
Bezel material	Plastic
Terminal size	2.8 x 0.8 mm to DIN 46244, Blade terminal 2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Control circuit reliability	1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA) 1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)
Degree of protection (front side)	IP65 NEMA 1
Lens type	Square
Lifespan, mechanical	3,000,000 Operations
Size	Front dimensions: 25 x 25 mm
Inscription	Blank
Number of command positions	1
Actuating force	4 N
Front element type	Flat
