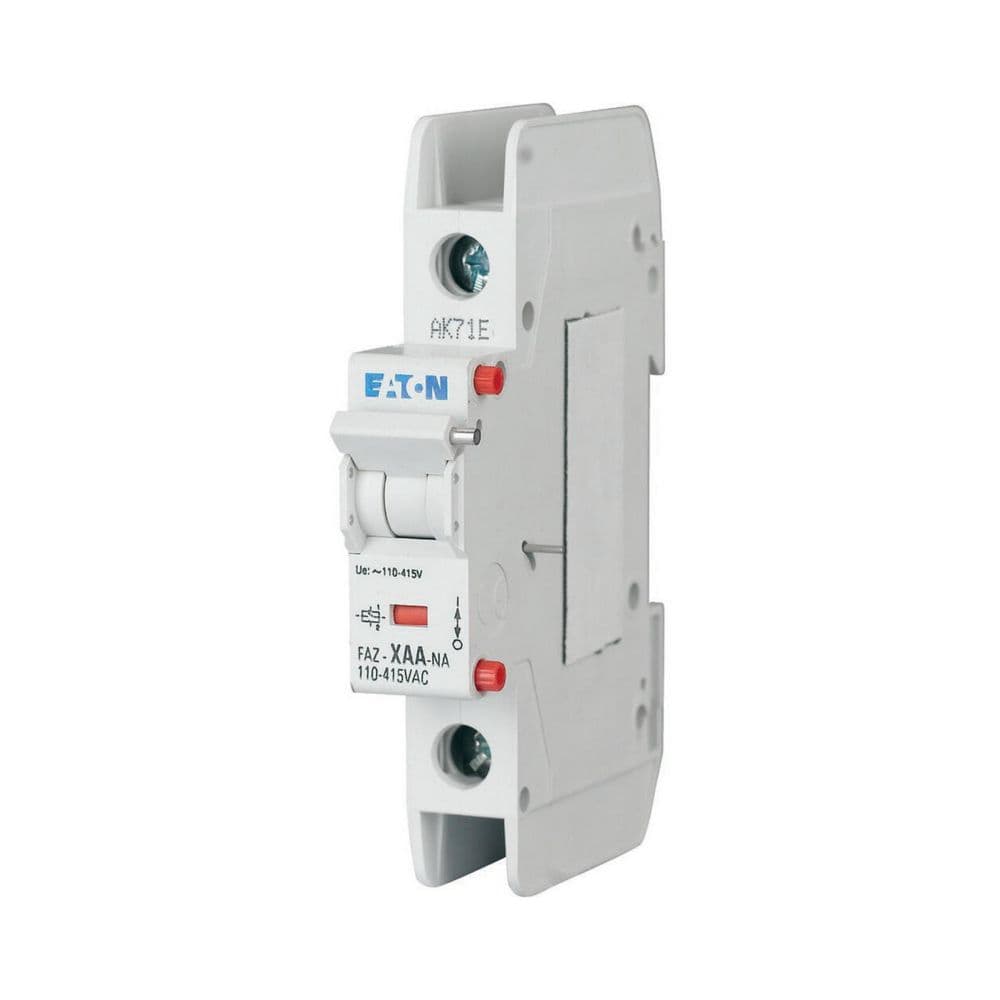

Eaton Shunt trip

Name: Eaton Shunt trip
Brand: Eaton
SKU: 102036

رقم القطعة: 102036

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Shunt trip

المواصفات

Ambient operating temperature - max	75 °C
Ambient operating temperature - min	-35 °C
Functions	Shunt release (for power circuit breaker)
Number of contacts (normally closed contacts)	1
Number of contacts (normally open contacts)	1
Product Name	Eaton Shunt trip
Catalog Number	102036
Model Code	FAZ-XAA-NA110-415VAC
EAN	4015081019274
Product Length/Depth	105 mm
Product Height	75.5 mm
Product Width	17.7 mm
Product Weight	0.11 kg
Compliances	RoHS conform
Certifications	North America (UL listed, CSA certified) IEC/EN 60898 CSA (Class No. 1437-01) UL 489 CSA (File No. 204453) CE marking UL (File No. E257181) CSA-C22.2 No. 5-09 UL (Category Control Number DIHS, DIHS7) EN45545-2 IEC 61373
Source URL	https://www.eaton.com/gb/en-gb/skuPage.102036.html
Used with	Shunt releases Accessory for miniature circuit breaker Accessory
Type	AccessoryAccessory for miniature circuit breaker
Degree of protection	IP20 (IEC) IP40 UL/CSA Type: -
Mounting method	Quick attachment with 2 latch positions for top-hat rail EN 50022 For fitting on left to: FAZ-NA, FAZ-RT
Accessory/spare part type	Shunt release
Rated operational voltage (Ue) - max	415 V
Frequency rating	50 Hz / 60 Hz
Frame	Standard front dimension: 45 mm
Voltage type	AC/DC
Number of contacts (change-over contacts)	0
Number of switches (fault signal)	0
Mounting width	17.5 mm (1 space unit)
Application	Switchgear for 110-V systems
Additional equipment required	Shunt release (for power circuit breaker)
Assembly width	1
Number of poles at main contact unit - max	1
Device fitting	Miniature circuit breaker (MCB)
Terminal protection	Busbar tag shroud to BGV A3
Terminal type	Twin-purpose terminals
Voltage range	110 V AC - 415 V AC
Enclosure width	105 mm
