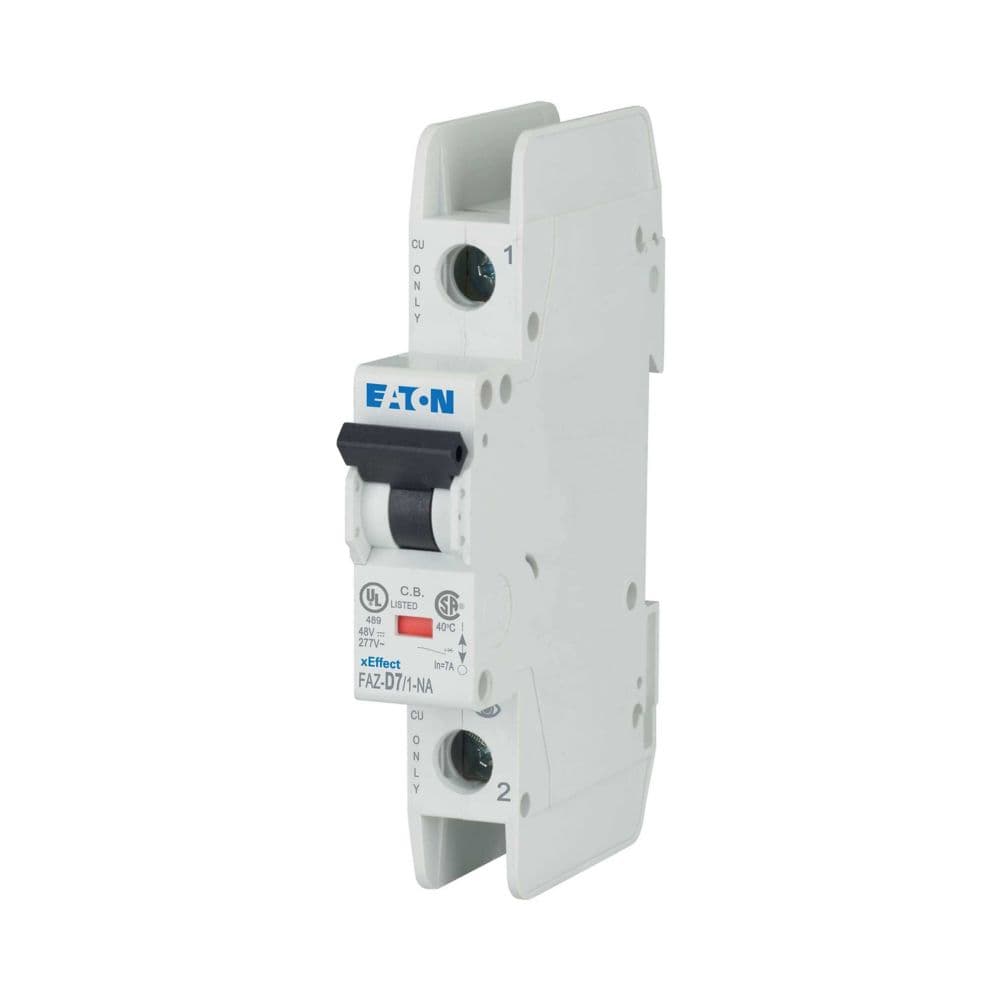

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

Eaton

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

رقم القطعة: 102105

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

المواصفات

FunctionsCurrent limiting circuit breaker
Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB
Catalog Number102105
Model CodeFAZ-D7/1-NA
EAN4015081019816
Product Length/Depth105 mm
Product Height75.5 mm
Product Width17.7 mm
Product Weight0.121 kg
CompliancesRoHS conform
CertificationsUL 489 Specially designed for North America, suitable as BCPD CSA (File No. 204453) North America (UL listed, CSA certified) IEC/EN 60947-2 IEC 60947-2 CSA-C22.2 No. 5-09 CSA (Class No. 1432-01) CE marking UL (Category Control Number DIVQ) UL (File No. E235139) UL 489, CSA C22.2 No. 5 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.102105.html
Used withFAZ-NA Miniature circuit breaker
FeaturesAdditional equipment possible
Current limiting class3
