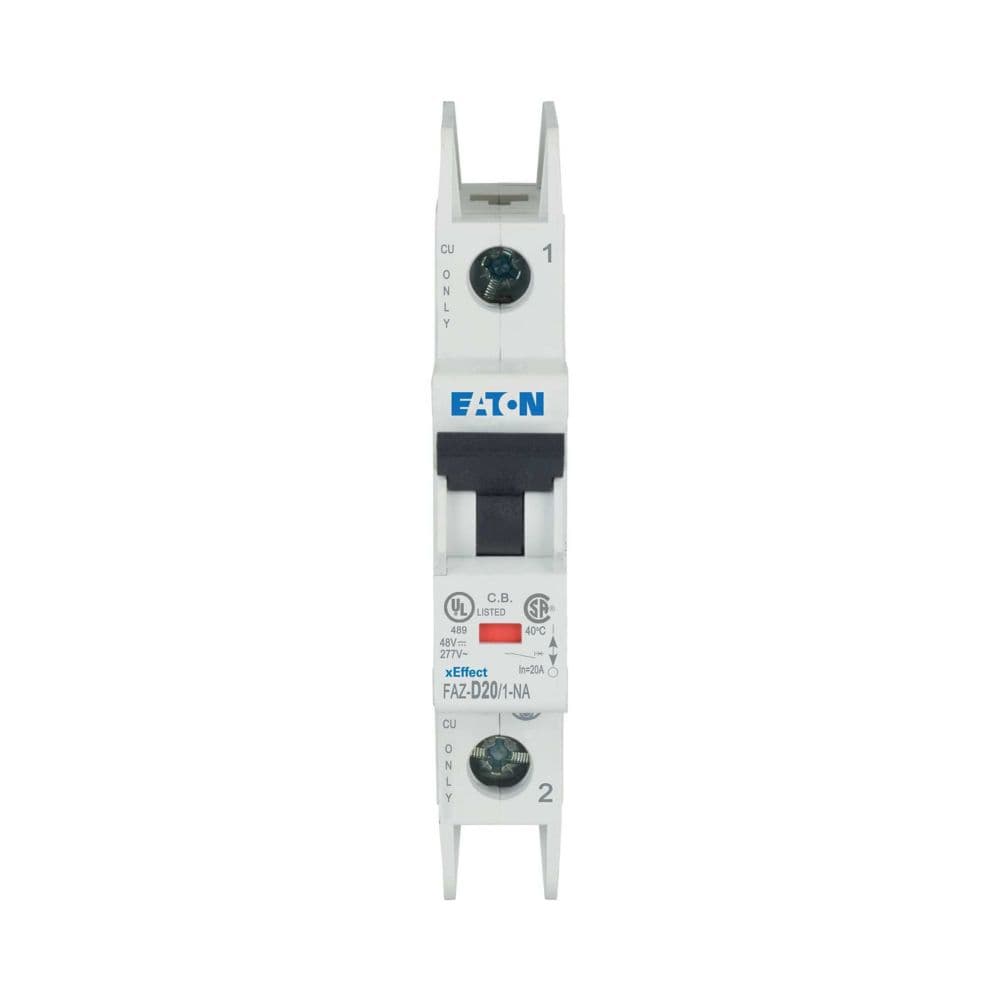

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

Eaton

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

رقم القطعة: 102111

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

المواصفات

FunctionsCurrent limiting circuit breaker
Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB
Catalog Number102111
Model CodeFAZ-D20/1-NA
EAN4015081019878
Product Length/Depth105 mm
Product Height75.5 mm
Product Width17.7 mm
Product Weight0.121 kg
CompliancesRoHS conform
CertificationsIEC 60947-2 UL (Category Control Number DIVQ) CE marking IEC/EN 60947-2 Specially designed for North America, suitable as BCPD UL 489 CSA-C22.2 No. 5-09 UL (File No. E235139) CSA (File No. 204453) North America (UL listed, CSA certified) CSA (Class No. 1432-01) UL 489, CSA C22.2 No. 5 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.102111.html
Catalog NotesMagnetic range for higher startup inrush levels that are usually seen in motors and transformers, and other high inductive systems.
Used withMiniature circuit breaker FAZ-NA
FeaturesAdditional equipment possible
Current limiting class3
