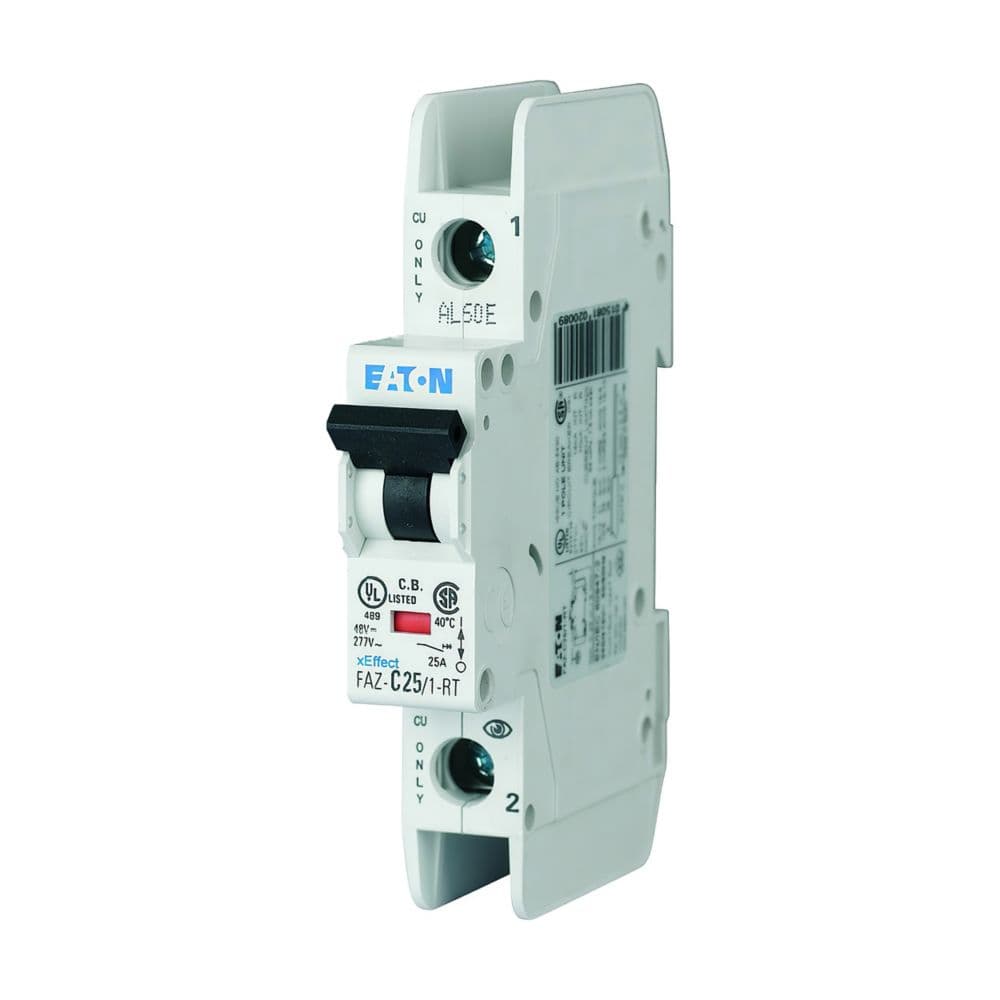

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

Eaton

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

رقم القطعة: 102155

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

المواصفات

FunctionsCurrent limiting circuit breaker
Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB
Catalog Number102155
Model CodeFAZ-D35/1-RT
EAN4015081020317
Product Length/Depth105 mm
Product Height75.5 mm
Product Width17.7 mm
Product Weight0.128 kg
CompliancesRoHS conform
CertificationsNorth America (UL listed, CSA certified) UL (Category Control Number DIVQ) UL 489 CSA (File No. 204453) CSA (Class No. 1432-01) UL 489, CSA C22.2 No. 5 Specially designed for North America, suitable as BCPD IEC/EN 60947-2 IEC 60947-2 CE marking UL (File No. E235139) CSA-C22.2 No. 5-09 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.102155.html
Used withFAZ-RT Miniature circuit breaker
FeaturesAdditional equipment possible
Current limiting class3
