Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

Eaton

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

رقم القطعة: 102162

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

المواصفات

FunctionsCurrent limiting circuit breaker
Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB
Catalog Number102162

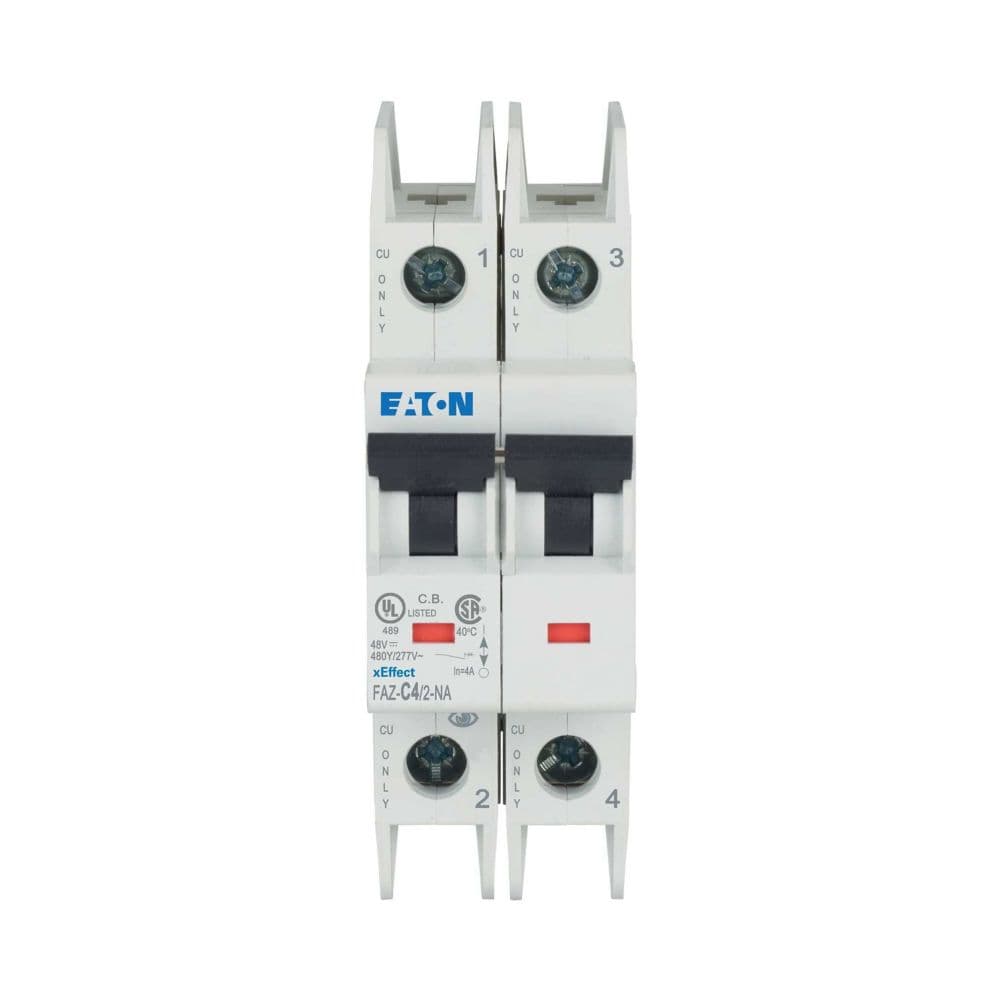

Model CodeFAZ-C4/2-NA
EAN4015081020386
Product Length/Depth105 mm
Product Height75.5 mm
Product Width35.4 mm
Product Weight0.246 kg
CompliancesRoHS conform
CertificationsNorth America (UL listed, CSA certified) Specially designed for North America, suitable as BCPD CSA (File No. 204453) CE marking IEC/EN 60947-2 CSA (Class No. 1432-01) UL (Category Control Number DIVQ) UL (File No. E235139) CSA-C22.2 No. 5-09 IEC 60947-2 UL 489 UL 489, CSA C22.2 No. 5 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.102162.html
Used withMiniature circuit breaker FAZ-NA
FeaturesAdditional equipment possible
Current limiting class3
