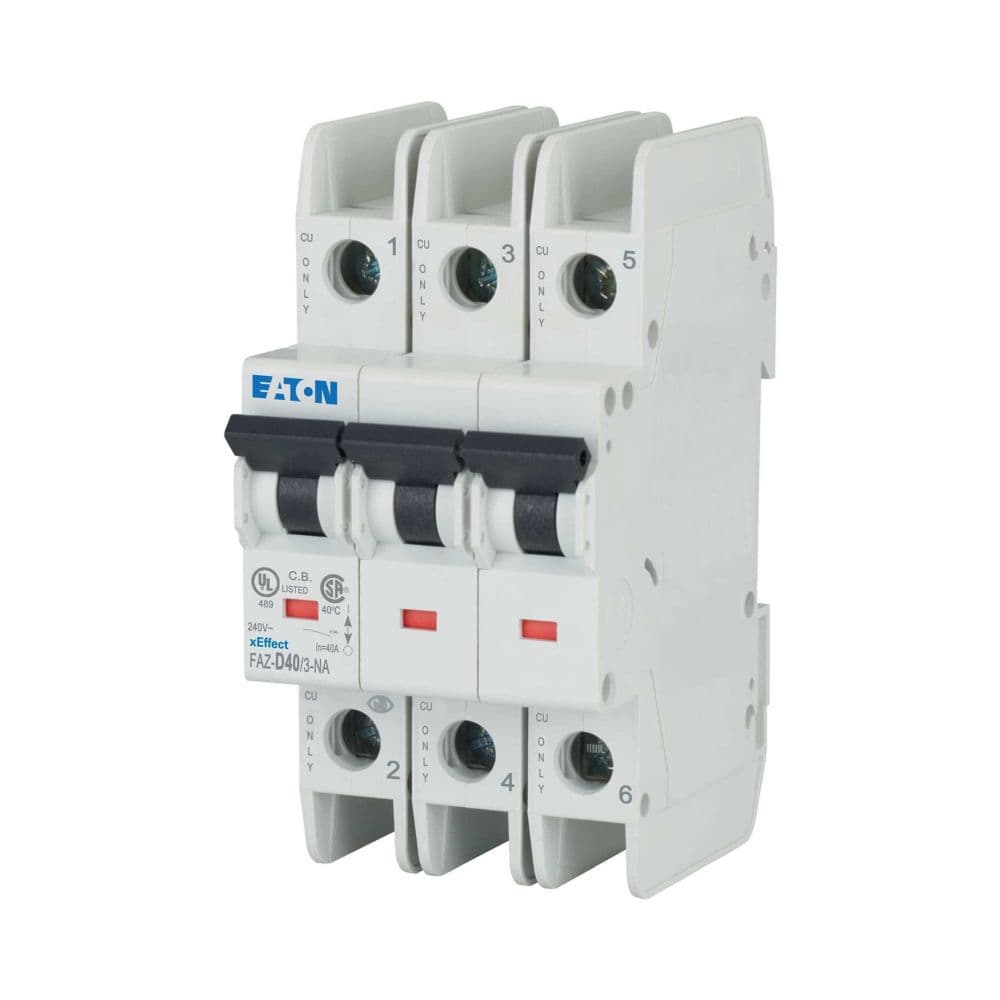

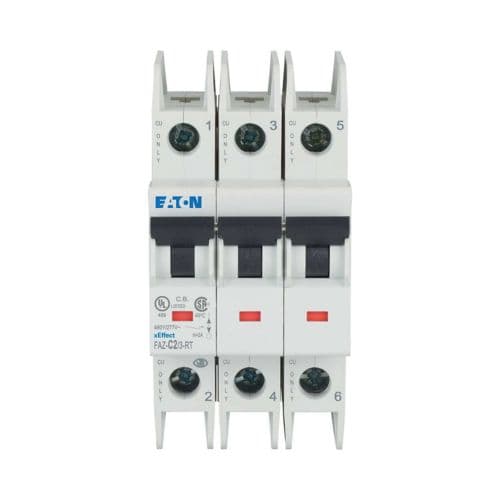

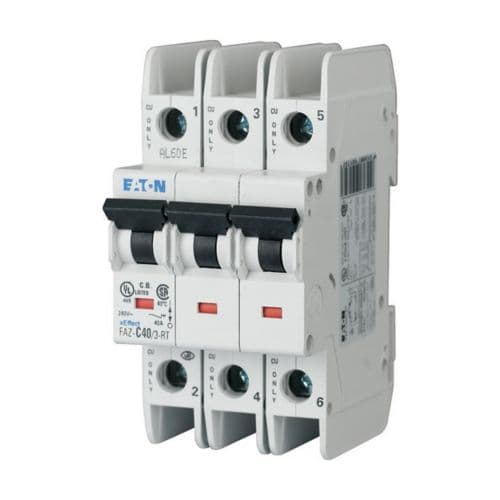

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

Eaton

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

رقم القطعة: 102276

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

المواصفات

FunctionsCurrent limiting circuit breaker
Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB
Catalog Number102276
Model CodeFAZ-D40/3-NA
EAN4015081021529
Product Length/Depth105 mm
Product Height75.5 mm
Product Width53.1 mm
Product Weight0.382 kg
CompliancesRoHS conform
CertificationsUL 489 UL (File No. E235139) Specially designed for North America, suitable as BCPD North America (UL listed, CSA certified) IEC 60947-2 UL (Category Control Number DIVQ) UL 489, CSA C22.2 No. 5 CSA (File No. 204453) CE marking CSA (Class No. 1432-01) IEC/EN 60947-2 CSA-C22.2 No. 5-09 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.102276.html
Used withMiniature circuit breaker FAZ-NA
FeaturesAdditional equipment possible
Current limiting class3
