Eaton Moeller® series LS Position switch

Eaton

Eaton Moeller® series LS Position switch

رقم القطعة: 106803

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series LS Position switch

المواصفات

Product NameEaton Moeller® series LS Position switch
Catalog Number106803
Model CodeLS-S11S/RLA
EAN4015081065707
Product Length/Depth33.5 mm
Product Height120 mm
Product Width31 mm
Product Weight0.085 kg
CertificationsCE CSA-C22.2 No. 14 UL File No.: E29184 UL Category Control No.: NKCR IEC/EN 60947 UL CSA IEC/EN 60947-5 CSA Class No.: 3211-03 UL 508 CSA File No.: 012528
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.106803.html
Catalog NotesUsing the product in areas exposed to ozone and UV radiation or in sub-zero temperatures in unprotected outdoor environments (e.g. altitudes above 1,000 m, unprotected sunlight) may reduce the degree of protection. The customer / user must validate the overall application accordingly. If applicable, the use of the LS-…-CC (Cold Climate) variants should be considered.

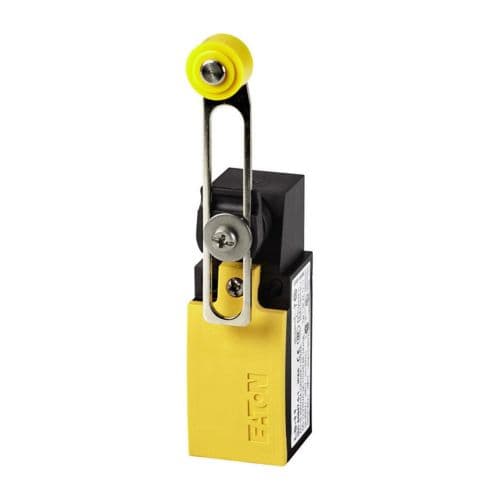

Actuator typeAdjustable roller lever
Actuating force at beginning/end of stroke1.0 N/8.0 N
Actuating torque of rotary drives0.2 Nm
Operating speedFor angle of actuation α = 30°, L = 125 mm Max. 1.5 m/s (with DIN cam, mechanical actuation)
