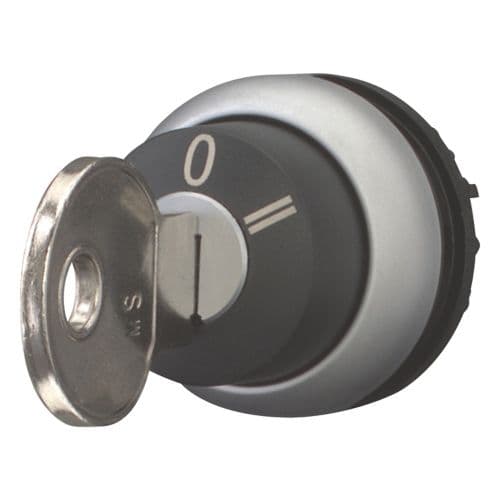

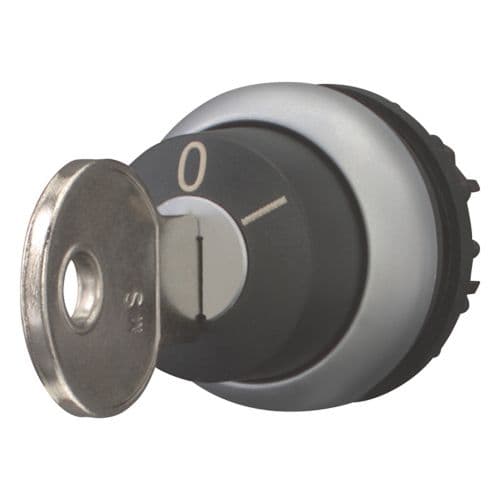

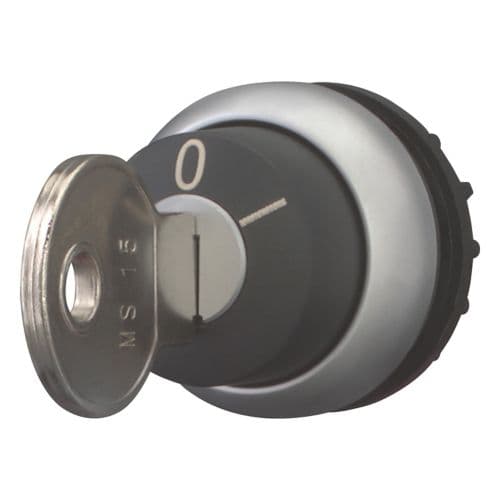

Eaton Moeller® series M22 key-operated actuator

Name: Eaton Moeller® series M22 key-operated actuator
Brand: Eaton
SKU: 111774

رقم القطعة: 111774

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 key-operated actuator

Functions	Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
Product Name	Eaton Moeller® series M22 key-operated actuator
Catalog Number	111774
Model Code	M22-WRS3-MS3
EAN	4015081113248
Product Length/Depth	70 mm
Product Height	30 mm
Product Width	30 mm
Product Weight	0.034 kg
Certifications	CSA UL CSA-C22.2 No. 14-05 VDE 0660 CE CSA File No.: 012528 IEC/EN 60947 IEC/EN 60947-5 UL Category Control No.: NKCR UL File No.: E29184 CSA-C22.2 No. 94-91 CSA Class No.: 3211-03 UL 508 DNV GL LR
Source URL	https://www.eaton.com/gb/en-gb/skuPage.111774.html
Actuator function	Key withdrawable in position 0 Maintained Switching function latching Key withdrawable in position 2 Key withdrawable in position 1
Actuator type	Key
Number of switch positions	3
Actuator color	Black
Fitted with:	Front ring Plunger bridge for the middle contact
Design	Key operated Classical
Bezel color	Titanium
Bezel material	Plastic
Indicator color	Other
Lens type	Round
Key code	MS3
