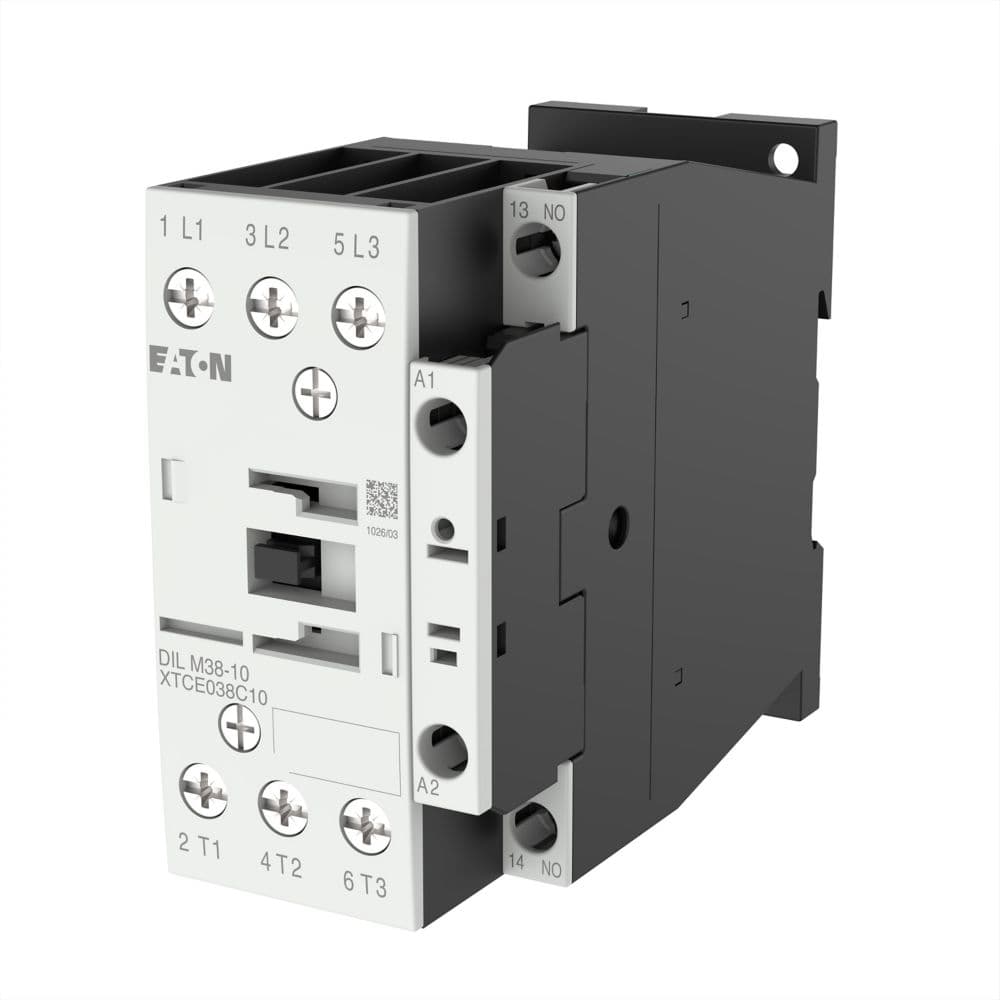

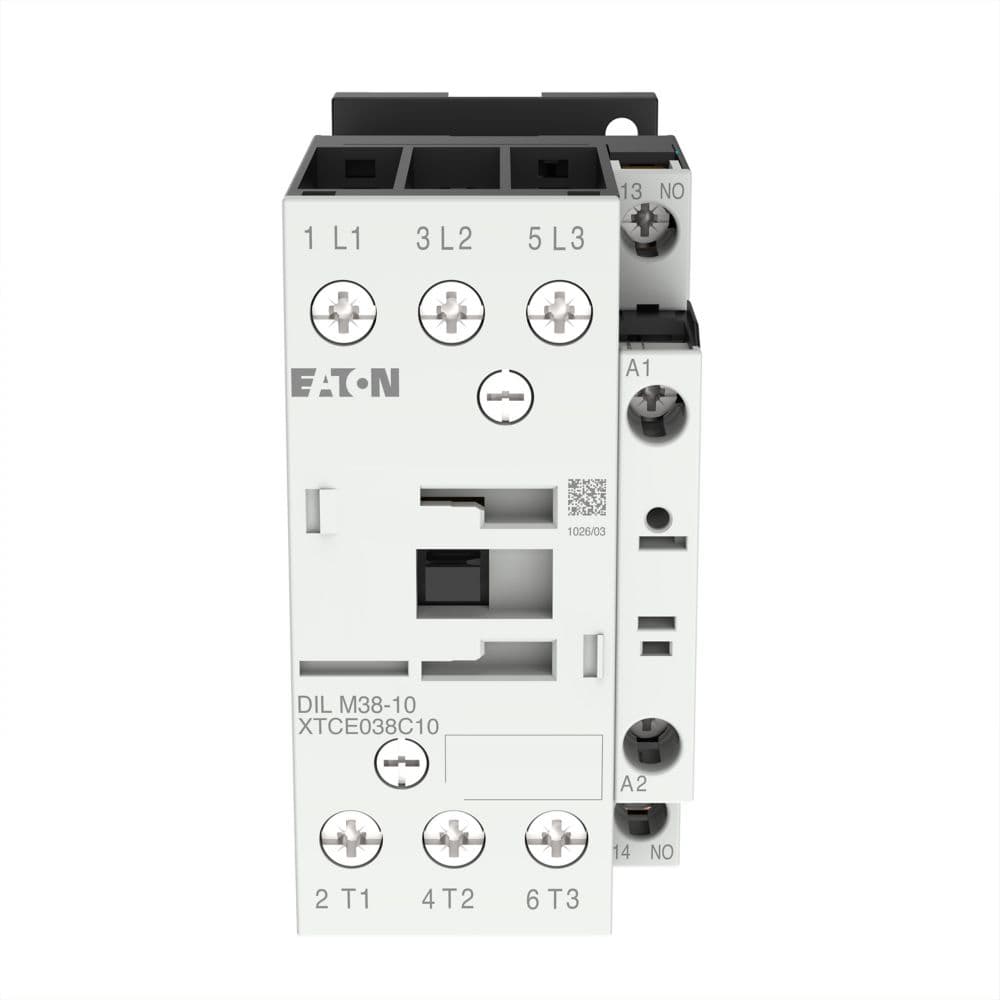

Eaton Moeller® series DILM contactor

Eaton

Eaton Moeller® series DILM contactor

رقم القطعة: 112425

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series DILM contactor

المواصفات

Product NameEaton Moeller® series DILM contactor
Catalog Number112425
Model CodeDILM38-10(110V50HZ,120V60HZ)
EAN4015081119837
Product Length/Depth97 mm
Product Height85 mm
Product Width45 mm
Product Weight0.428 kg
CompliancesCE Marked
CertificationsUL 508 EN 60947-4-1 IEC 60947-4-1 CSA Std. C22.2 No. 14-05 VDE CE CSA-C22.2 No. 60947-4-1-14 CSA UL 60947-4-1 UL Category Control No.: NLDX IEC/EN 60947 VDE 0660 CSA File No.: 012528 CSA Class No.: 2411-03, 3211-04 IEC/EN 60947-4-1 UL File No.: E29096 UL
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.112425.html
Catalog NotesContacts according to EN 50012
Shock resistance6.9 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 5.3 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 3.5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms
