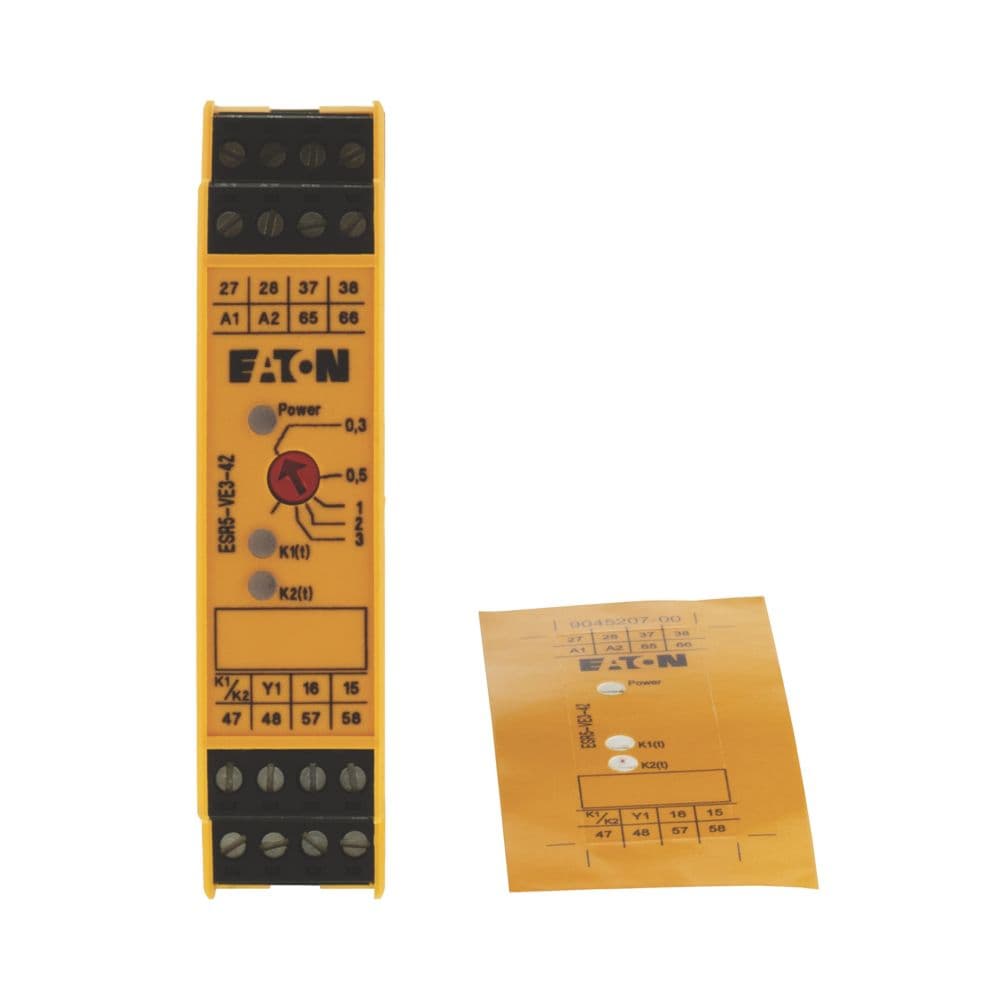

Eaton ESR5 Contact expansion module

Eaton

Eaton ESR5 Contact expansion module

رقم القطعة: 118706

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton ESR5 Contact expansion module

المواصفات

Product NameEaton ESR5 Contact expansion module
Catalog Number118706
Model CodeESR5-VE3-42
EAN4015081168460
Product Length/Depth114.5 mm
Product Height99 mm
Product Width22.5 mm
Product Weight0.173 kg
CertificationsUL File No.: E29184 Certified by UL for use in Canada CSA Class No.: 3211-83; 3211-03 UL 2014/30/EU IEC 62061 UL 508 IEC/EN 60204 EN 50178 CE UL report applies to both US and Canada UL Category Control No.: NKCR; NKCR7 EN ISO 13849-1 CSA-C22.2 No. 14-95 IEC 61508, Parts 1-7 Machines 2006/42/EG
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.118706.html
Catalog NotesThe base unit determines the maximum stop category according to IEC 61508 and IEC 60204
Mounting positionAs required
Vibration resistance10 - 150 Hz, Amplitude: 0.15 mm, Acceleration: 2 g, (IEC/EN 60068-2-6)
Prooftest67 Months (Low Demand) 240 Months (High Demand)
Switching capacity3 A at 3600 O/h, AC-15 at 230 V, Outputs In accordance with IEC 60947-5-1, Outputs 0.4 W 3 A at 3600 O/h, DC-13 at 24 V, Outputs
