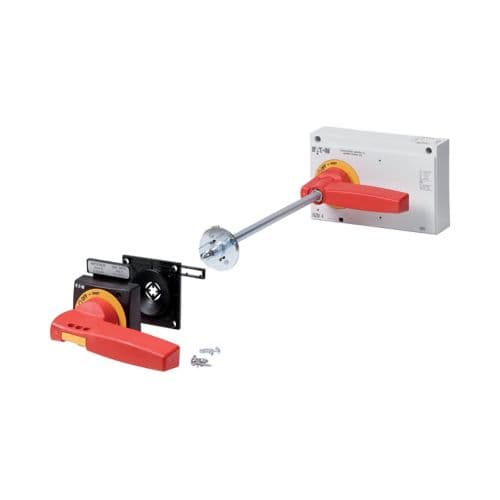

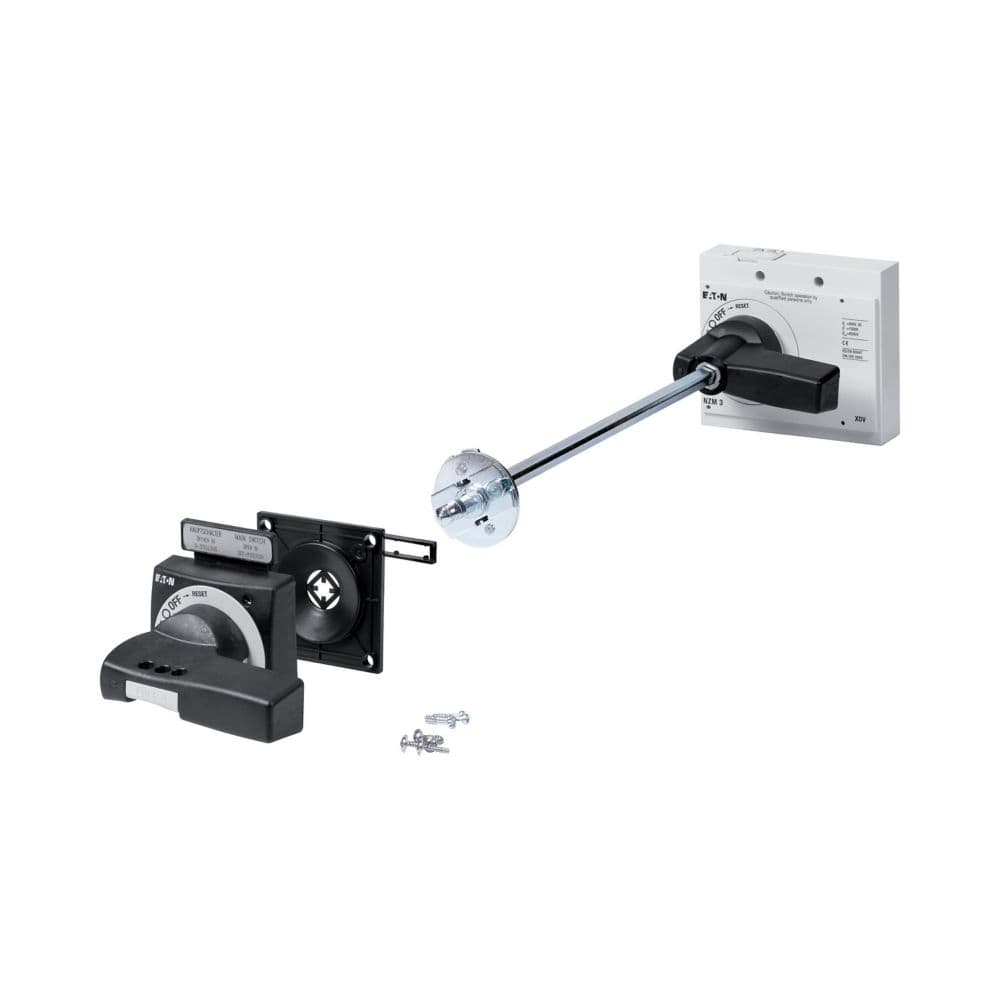

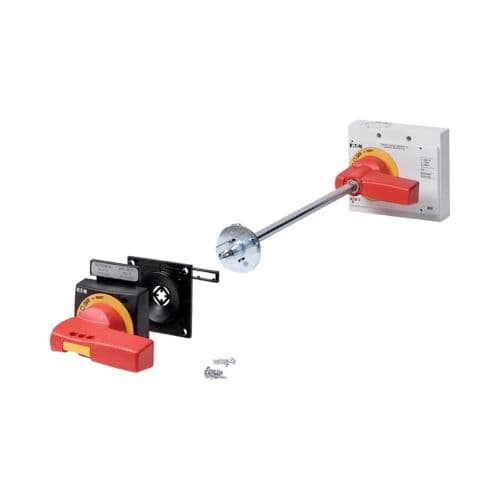

Eaton Moeller series NZM operating element NA

Eaton

Eaton Moeller series NZM operating element NA

رقم القطعة: 119000

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element NA

المواصفات

Special featuresExternal warning plate/designation label can be clipped on.For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.Kit for use as a main switch
Product NameEaton Moeller series NZM operating element NA
Catalog Number119000
Model CodeNZM3-XHB-DA-NA
EAN4015081171279
Product Length/Depth440 mm
Product Height230 mm
Product Width250 mm
Product Weight2.7 kg
CompliancesIEC UL/CSA RoHS conform
CertificationsCE marking IEC60947 CSA (Class No. 1437-01) UL489 CSA certified UL (File No. E140305) CSA (File No. 22086) UL508A UL listed Specially designed for North America NFPA79 UL (Category Control Number DIHS) CSA-C22.2 No. 5-09
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.119000.html
Suitable forPower circuit breaker Switch disconnector
Used withNZM3(-4) PN3(-4) N(S)3(-4)
FeaturesLockable With black door coupling rotary handle
TypeMain switch assembly kit
Fitted with:Extension shaft Add-on rotary handle on switch with "Deliberate Action" operation as per NFPA79 and UL508A Part 2 Black and yellow lightning symbol Extension shaft NZM…-XV6 for mounting depth 600 mm External warning plate/marking plate in German/English Door coupling rotary handle with rotary drive Padlock
FrameNZM3
