Eaton Moeller series xEffect - FAZ-NA-DC MCB

Name: Eaton Moeller series xEffect - FAZ-NA-DC MCB
Brand: Eaton
SKU: 120644

رقم القطعة: 120644

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

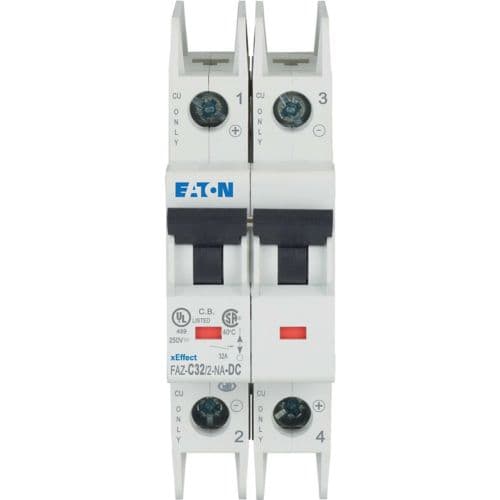

Eaton Moeller series xEffect - FAZ-NA-DC MCB

المواصفات

Ambient operating temperature - max	75 °C
Ambient operating temperature - min	-25 °C
Special features	Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product Name	Eaton Moeller series xEffect - FAZ-NA-DC MCB
Catalog Number	120644
Model Code	FAZ-C16/2-NA-DC
EAN	4015081184743
Product Length/Depth	105 mm
Product Height	75.5 mm
Product Width	35.4 mm
Product Weight	0.243 kg
Compliances	RoHS conform
Certifications	IEC 60947-2 UL 489, CSA C22.2 No. 5 EN45545-2 IEC 61373
Source URL	https://www.eaton.com/gb/en-gb/skuPage.120644.html
Used with	Miniature circuit breaker FAZ-DC
Features	Additional equipment possible
Type	FAZ-DCMiniature circuit breaker
10.10 Temperature rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance	Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation	Meets the product standard's requirements.
10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions	Meets the product standard's requirements.
10.3 Degree of protection of assemblies	Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances	Meets the product standard's requirements.
10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
10.8 Connections for external conductors	Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength	Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage	Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material	Is the panel builder's responsibility.
Degree of protection	IP20
Built-in depth	70.5 mm
Width in number of modular spacings	2
Number of poles	Two-pole
Amperage Rating	16 A
Rated operational voltage (Ue) - max	250 V
Rated operational current for specified heat dissipation (In)	16 A
Voltage rating at DC	500 V DC
Pollution degree	2
Rated insulation voltage (Ui)	440 V
Overvoltage category	III
Rated impulse withstand voltage (Uimp)	4 kV
Voltage type	DC
Connectable conductor cross section (multi-wired) - max	25 mm²
Connectable conductor cross section (multi-wired) - min	1 mm²
Connectable conductor cross section (solid-core) - max	25 mm²
Connectable conductor cross section (solid-core) - min	1 mm²
Heat dissipation per pole, current-dependent	0 W
Equipment heat dissipation, current-dependent	4.3 W
Application	Switchgear for export to North America (UL-listed)
Static heat dissipation, non-current-dependent	0 W
Heat dissipation capacity	0 W
Current limiting class	3
Tripping characteristic	C
Number of poles (protected)	2
Number of poles (total)	2
Release characteristic	C
Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 230 V	10 kA
Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 400 V	10 kA
Rated switching capacity (IEC/EN 60947-2)	10 kA
Power loss	4.2 W
