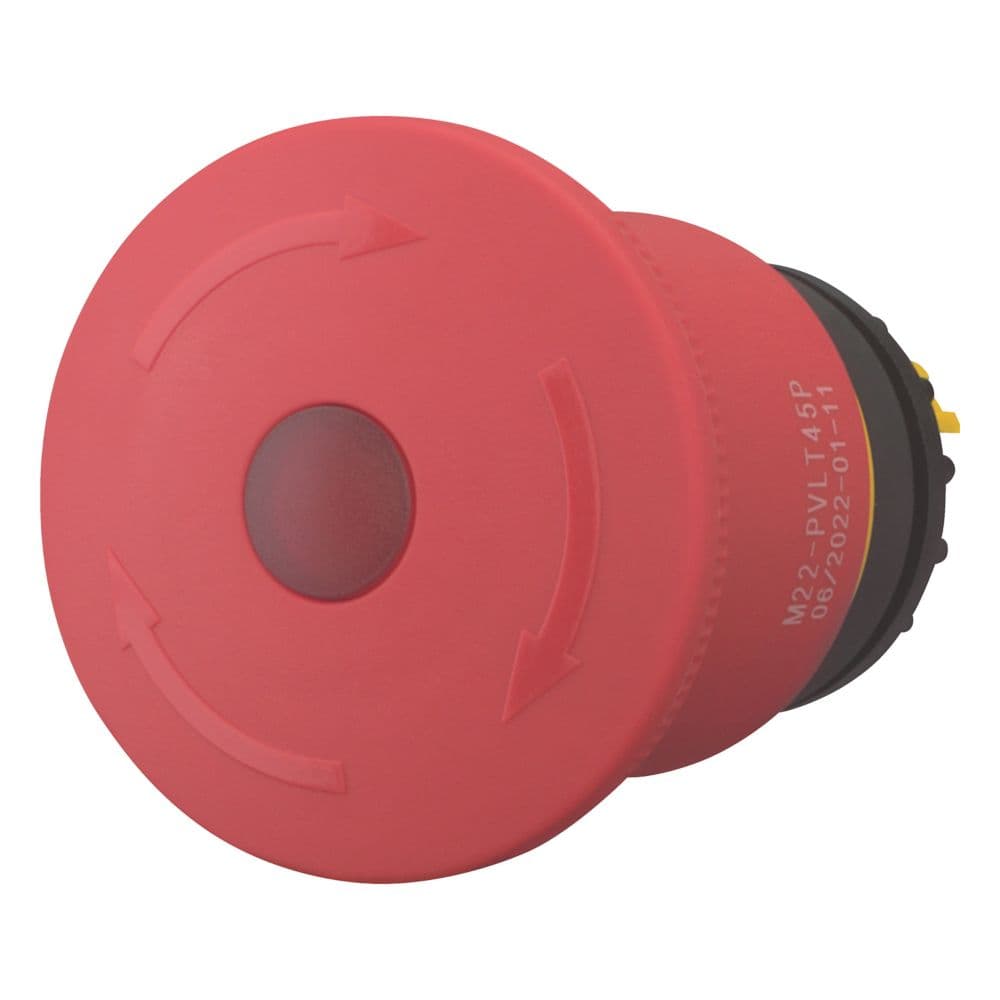

Eaton Moeller® series M22 emergency stop/emergency switching off pushbutton

Eaton

Eaton Moeller® series M22 emergency stop/emergency switching off pushbutton

رقم القطعة: 121460

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 emergency stop/emergency switching off pushbutton

المواصفات

Product NameEaton Moeller® series M22 emergency stop/emergency switching off pushbutton
Catalog Number121460
Model CodeM22-PVLT45P
EAN4015081192809
Product Length/Depth67 mm
Product Height45 mm
Product Width45 mm
Product Weight0.043 kg
CertificationsIEC/EN 60947 VDE 0660 DNV GL LR
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.121460.html
Catalog NotesMax. Configuration: 4 x M22-(C)K01, …10 or 2 x M22-(C)K02, …20, …11 and 1 x M22-(F)LED... - When using M22-PVL… with 1 x M22-K01SMC10 (single channel), article M22-XSMC (order no.: 173030) is required. Order this item separately.
Actuator functionTurn-to-release Switching function latching
Actuator colorRed
ColorRed
DesignPalm-tree shaped Classical
Actuating force50 N
Actuator diameter45 mm
IlluminationIlluminated with LED element
Unlocking methodTurn-release
