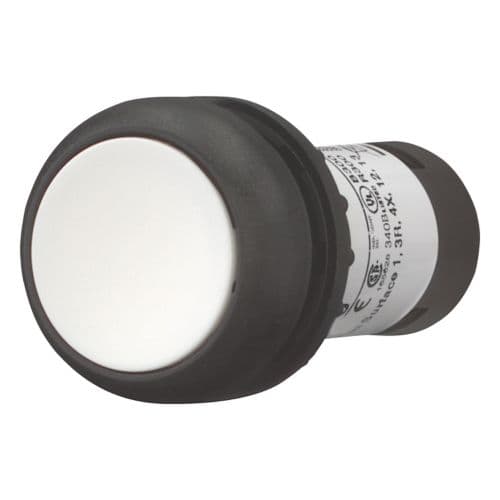

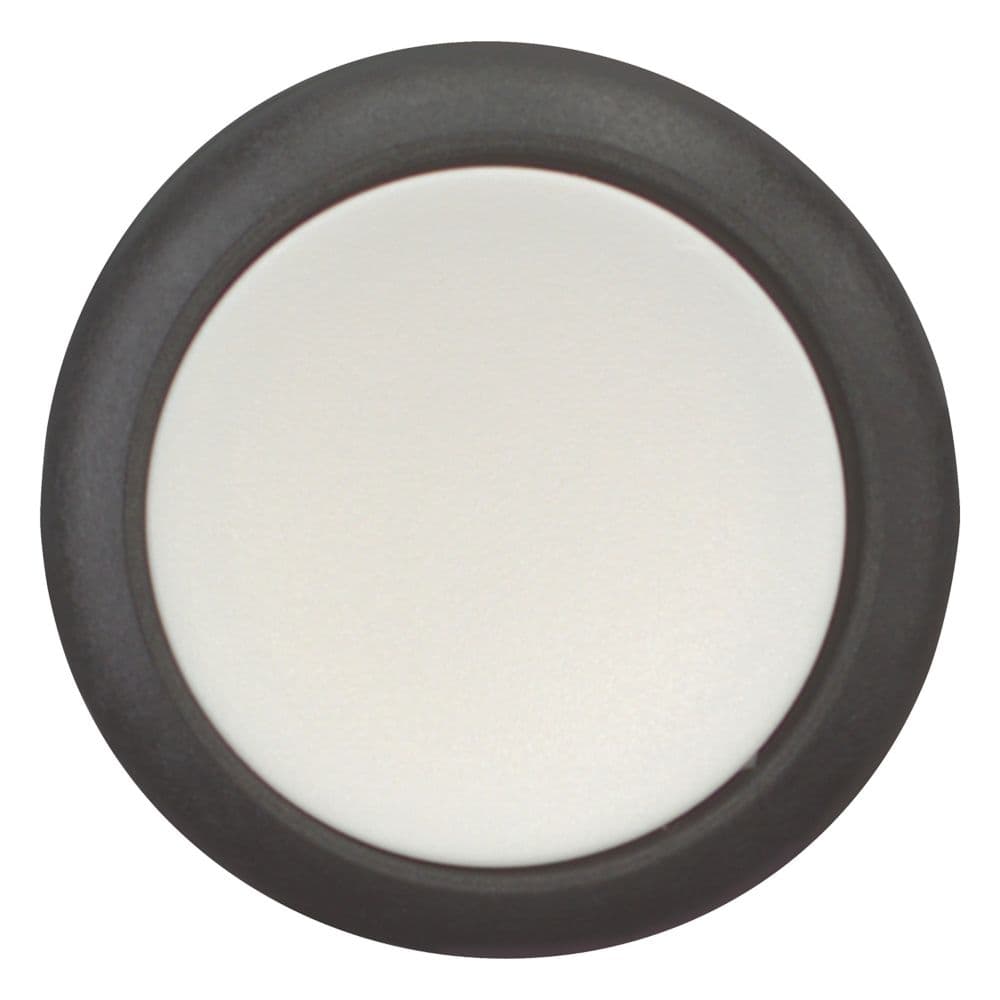

Eaton Moeller® series C22 Pushbutton

Eaton

Eaton Moeller® series C22 Pushbutton

رقم القطعة: 121546

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series C22 Pushbutton

المواصفات

Product NameEaton Moeller® series C22 Pushbutton
Catalog Number121546
Model CodeC22S-DR-W-K11
EAN4015081193646
Product Length/Depth55 mm
Product Height30 mm
Product Width30 mm
Product Weight0.021 kg
CertificationsCE marking CSA-C22.2 No. 14-05 and 94-M91 CSA certified UL File No.: E29184 IEC/EN 60947-5-1 UL Category Control No.: NKCR CSA Class No.: 321103 UL 508 UL Listed VDE 0660 CSA File No.: 165628
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.121546.html
Catalog NotesContacts with safety function, by positive opening to IEC/EN 60947-5-1
Actuator functionMaintained Switching function latching
Actuator colorWhite
Actuating force5 N
Actuator diameter29.7 mm
Knob travel5.7 mm
Actuator travel and actuation force (DIN EN 60947-5-1)4.65 mm
