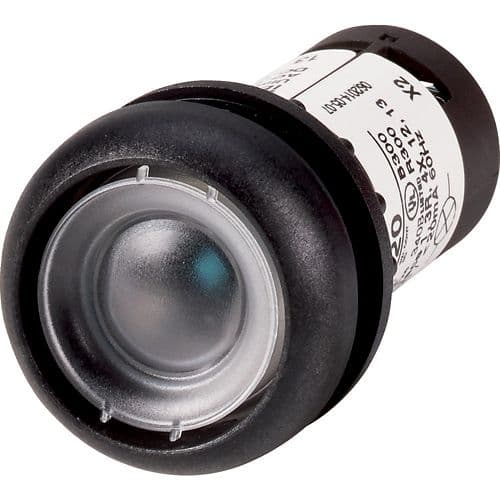

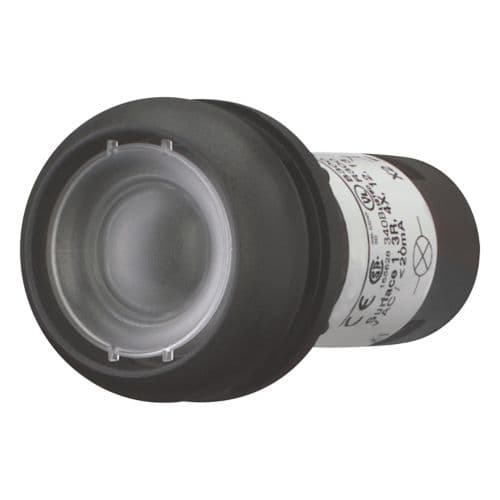

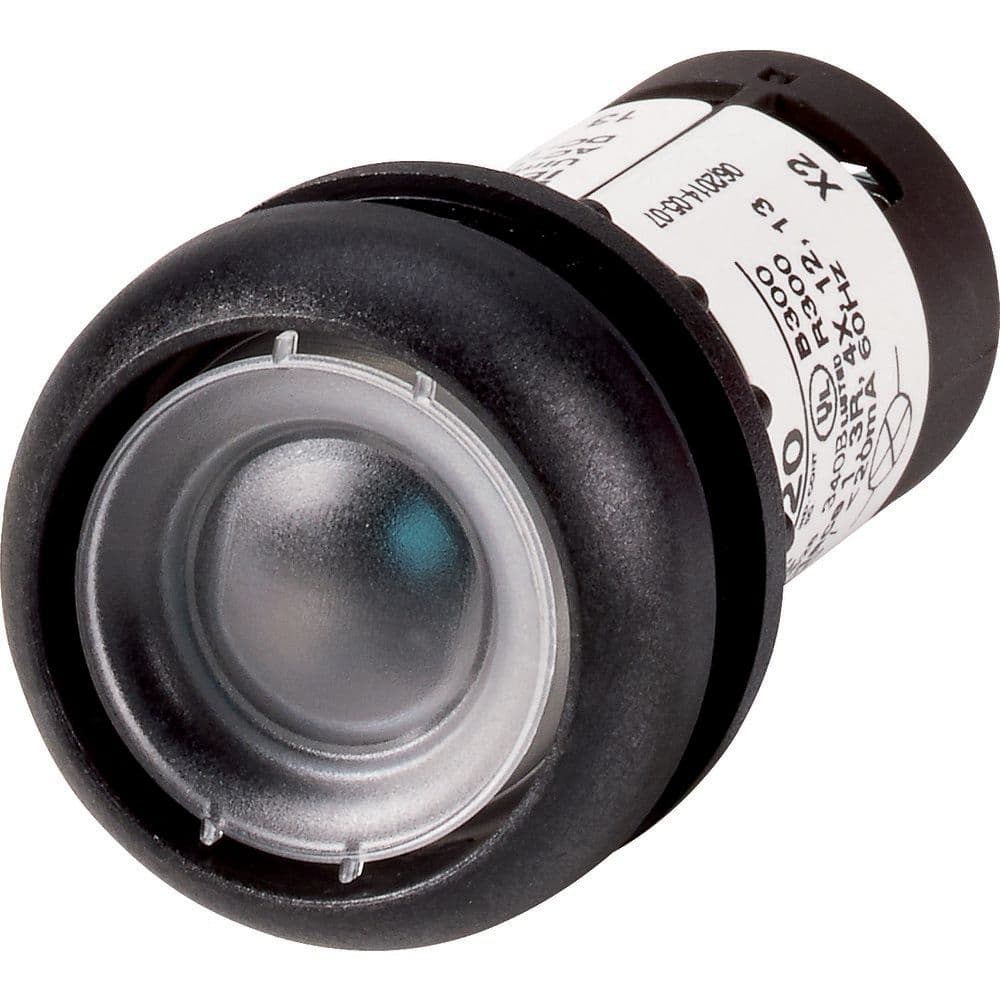

Eaton Moeller® series C22 Illuminated pushbutton actuator

Eaton

Eaton Moeller® series C22 Illuminated pushbutton actuator

رقم القطعة: 121695

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series C22 Illuminated pushbutton actuator

المواصفات

Product NameEaton Moeller® series C22 Illuminated pushbutton actuator
Catalog Number121695
Model CodeC22S-DL-XR-K01-230
EAN4015081195091
Product Length/Depth55 mm
Product Height30 mm
Product Width30 mm
Product Weight0.02 kg
CertificationsCSA-C22.2 No. 14-05 and 94-M91 UL 508 UL Listed CSA File No.: 165628 IEC/EN 60947-5-1 CSA Class No.: 321103 UL Category Control No.: NKCR VDE 0660 UL File No.: E29184 CSA certified CE marking
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.121695.html
Catalog NotesContacts with safety function, by positive opening to IEC/EN 60947-5-1
Actuator functionMomentary Spring-return
Actuator colorWithout button plate
Actuating force5 N
Actuator diameter29.7 mm
Knob travel5.7 mm
Actuator travel and actuation force (DIN EN 60947-5-1)4.65 mm
