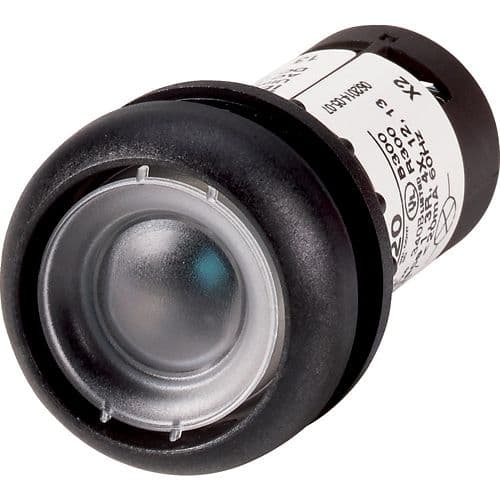

Eaton Moeller® series C22 Illuminated pushbutton actuator

Eaton

Eaton Moeller® series C22 Illuminated pushbutton actuator

رقم القطعة: 121704

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series C22 Illuminated pushbutton actuator

المواصفات

Product NameEaton Moeller® series C22 Illuminated pushbutton actuator
Catalog Number121704
Model CodeC22S-DRL-XG-K10-120
EAN4015081195183
Product Length/Depth55 mm
Product Height30 mm
Product Width30 mm
Product Weight0.02 kg
CertificationsUL 508 UL File No.: E29184 UL Listed VDE 0660 IEC/EN 60947-5-1 CSA certified CSA File No.: 165628 CE marking CSA-C22.2 No. 14-05 and 94-M91 CSA Class No.: 321103 UL Category Control No.: NKCR
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.121704.html
Catalog NotesContacts with safety function, by positive opening to IEC/EN 60947-5-1
Actuator functionMaintained Switching function latching
Actuator colorWithout button plate
Actuating force5 N
Actuator diameter29.7 mm
