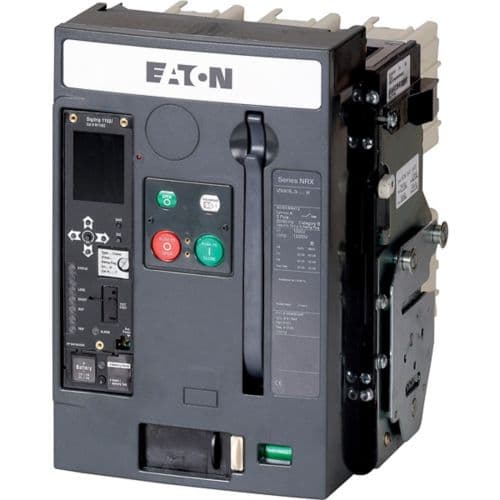

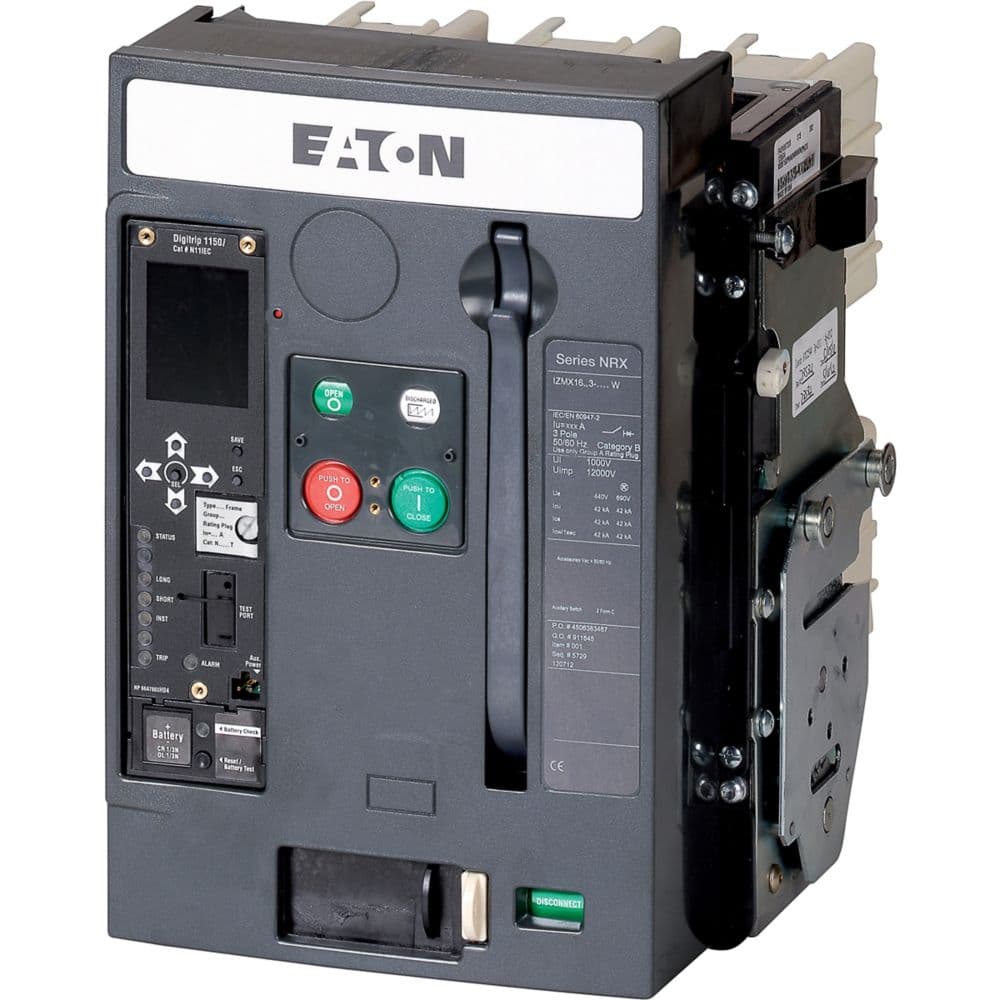

Eaton Moeller series IZMX/INX circuit-breaker

Name: Eaton Moeller series IZMX/INX circuit-breaker
Brand: Eaton
SKU: 123132

رقم القطعة: 123132

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series IZMX/INX circuit-breaker

Special features	Cassette must be separately ordered.IZMX-DTP-PTM external voltage measuring module requiredsuitable for zone selectivitysuitable for communicationwith integrated system monitorwith integrated test possibilitywith graphic LCD color displayoptionally fittable by user with comprehensive accessoriesThese are values used in separate switchgear. The actual values will depend on the temperature around the circuit-breaker, which is influenced by the ambient temperature, the degree of protection (IP), the mounting height, the partitions, and any external ventilation. Depending on the specific switchgear design, this may result in derating, which can then be compensated for by increasing the cross-sectional area. Temperature rise tests in the specific switchgear can provide specific and detailed information.
Product Name	Eaton Moeller series IZMX/INX circuit-breaker
Catalog Number	123132
Model Code	IZMX16N3-P08W
EAN	4015081207374
Product Length/Depth	584 mm
Product Height	597 mm
Product Width	521 mm
Product Weight	27.74 kg
Compliances	IEC/EN 60947 IEC
Source URL	https://www.eaton.com/gb/en-gb/skuPage.123132.html
Suitable for	Main conducting paths with 23 kA in IT electrical power networks up to U = 440 V
Used with	Air circuit breakers/switch-disconnector Open circuit breaker
Features	Motor drive optional
Type	Air circuit breakers/switch-disconnectorOpen circuit breaker
Fitted with:	Switched-off indicator
Number of poles	Three-pole
Amperage Rating	800 A
Frame	IZMX16
Release system	Electronic release
