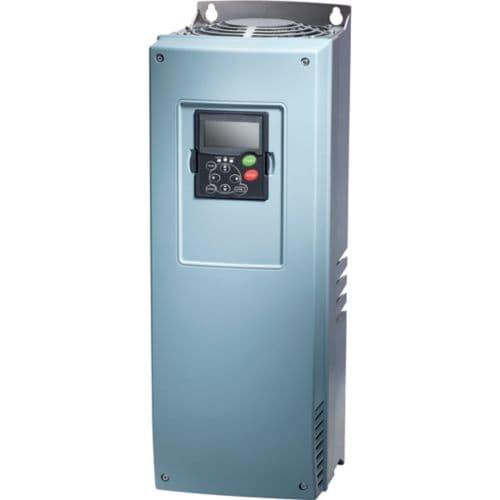

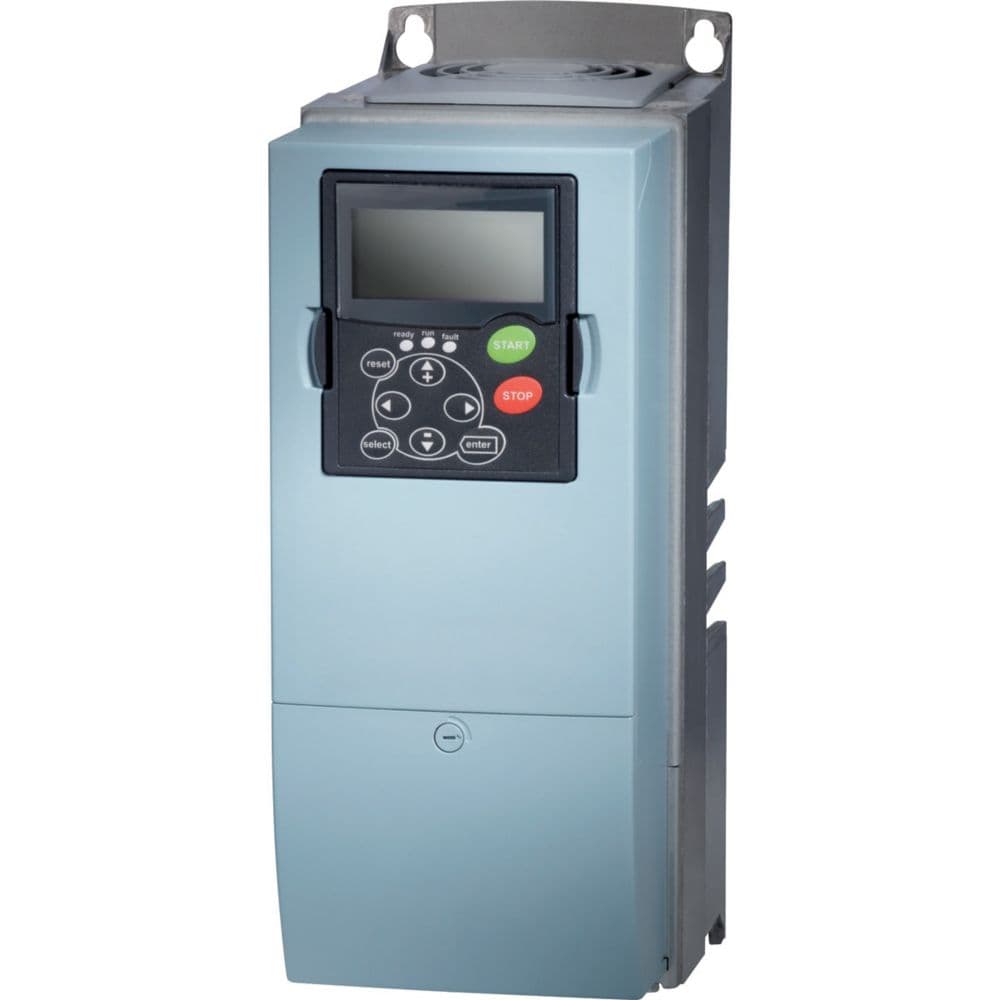

Eaton SPX variable frequency drive

Eaton

Eaton SPX variable frequency drive

رقم القطعة: 125245

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton SPX variable frequency drive

المواصفات

Ambient operating temperature - max50 °C
Ambient operating temperature - min-10 °C
Ambient storage temperature - max70 °C
Ambient storage temperature - min-40 °C
Climatic proofing< 95 % relative humidity, no condensation, no corrosion, no dripping water
Product NameEaton SPX variable frequency drive
Catalog Number125245
Model CodeSPX005A2-4A1B1
EAN4015081228515
Product Length/Depth190 mm
Product Height327 mm
Product Width128 mm
Product Weight5 kg
CertificationsCSA Class No.: 3211-06 DNV UL report applies to both US and Canada Safety: EN 61800-5-1: 2003 UL 508C UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8 UL CSA-C22.2 No. 14 CE IEC/EN 61800-3 RoHS, ISO 9001 CUL IEC/EN61800-5 UL File No.: E134360 IEC/EN61800-3 Specification for general requirements: IEC/EN 61800-2 Certified by UL for use in Canada RCM
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.125245.html
AltitudeAbove 1000 m with 1 % performance reduction per 100 m Max. 3000 m Max. 1000 m
Ambient operating temperature at 150% overload - max50 °C
Ambient operating temperature at 150% overload - min-10 °C
