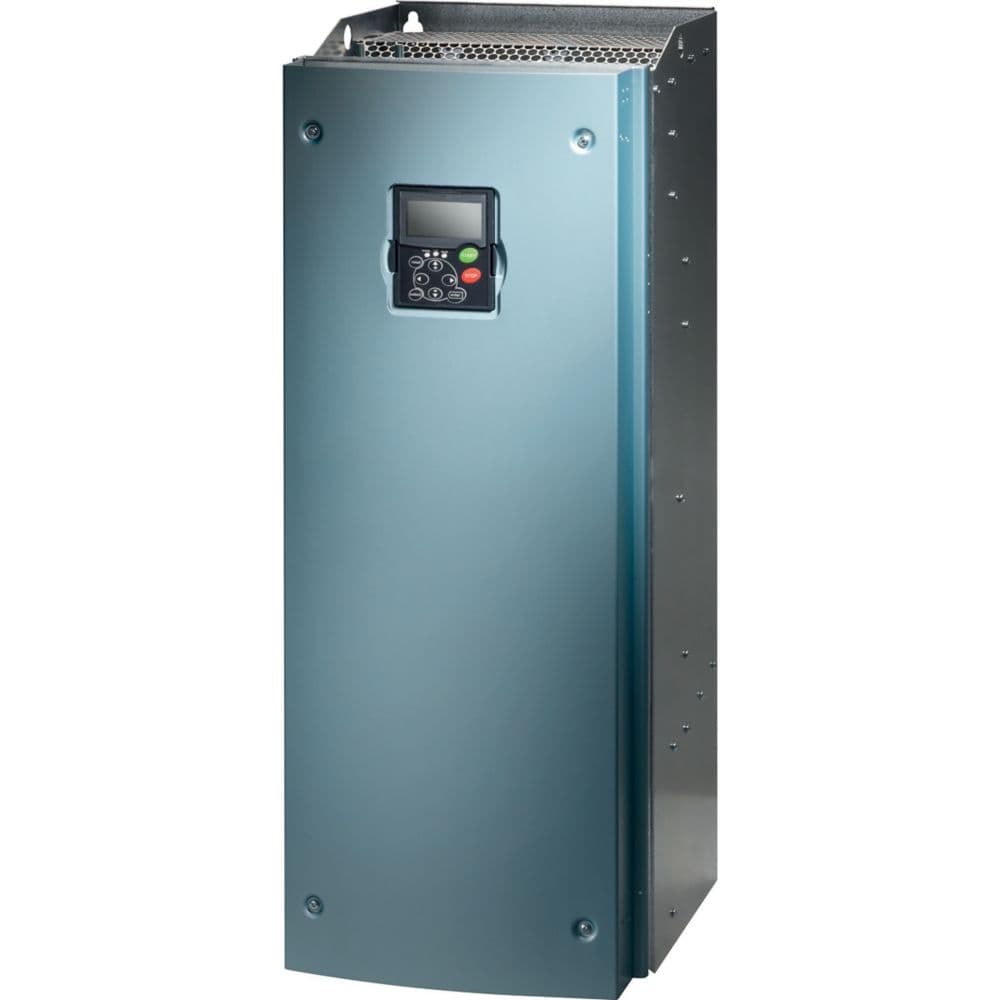

Eaton SPX variable frequency drive

Eaton

Eaton SPX variable frequency drive

رقم القطعة: 125370

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton SPX variable frequency drive

المواصفات

Ambient operating temperature - max50 °C
Ambient operating temperature - min-10 °C
Ambient storage temperature - max70 °C
Ambient storage temperature - min-40 °C
Climatic proofing< 95 % relative humidity, no condensation, no corrosion, no dripping water
Product NameEaton SPX variable frequency drive
Catalog Number125370
Model CodeSPX100A2-4A1N1
EAN4015081229765
Product Length/Depth758 mm
Product Height344 mm
Product Width291 mm
Product Weight58 kg
CertificationsUL report applies to both US and Canada RCM UL 508C RoHS, ISO 9001 Certified by UL for use in Canada UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8 UL File No.: E134360 IEC/EN61800-3 DNV CSA Class No.: 3211-06 Safety: EN 61800-5-1: 2003 CE Specification for general requirements: IEC/EN 61800-2 IEC/EN61800-5 CSA-C22.2 No. 14 IEC/EN 61800-3 UL CUL
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.125370.html
AltitudeMax. 1000 m Max. 3000 m Above 1000 m with 1 % performance reduction per 100 m
Ambient operating temperature at 150% overload - max50 °C
Ambient operating temperature at 150% overload - min-10 °C
