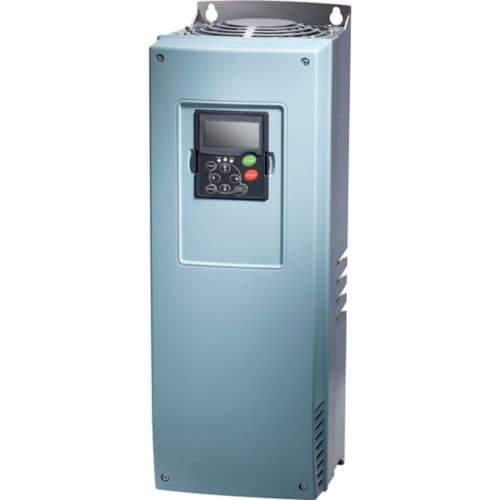

Eaton SVX Variable frequency drive

Eaton

Eaton SVX Variable frequency drive

رقم القطعة: 125760

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton SVX Variable frequency drive

المواصفات

Ambient operating temperature - max50 °C
Ambient operating temperature - min-10 °C
Ambient storage temperature - max70 °C
Ambient storage temperature - min-40 °C
Climatic proofing< 95 % relative humidity, no condensation, no corrosion, no dripping water
Product NameEaton SVX Variable frequency drive
Catalog Number125760
Model CodeSVX007A1-5A4N1
EAN4015081233700
Product Length/Depth558 mm
Product Height237 mm
Product Width195 mm
Product Weight18.5 kg
CertificationsUL report applies to both US and Canada Certified by UL for use in Canada RoHS, ISO 9001 Specification for general requirements: IEC/EN 61800-2 UL CSA-C22.2 No. 14 CSA Class No.: 3211-06 DNV RCM UL 508C IEC/EN61800-3 UL File No.: E134360 CUL IEC/EN 61800-3 IEC/EN61800-5 UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8 CE Safety: EN 61800-5-1: 2003
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.125760.html
AltitudeMax. 3000 m Above 1000 m with 1 % performance reduction per 100 m Max. 1000 m
Ambient operating temperature at 150% overload - max50 °C
Ambient operating temperature at 150% overload - min-10 °C
