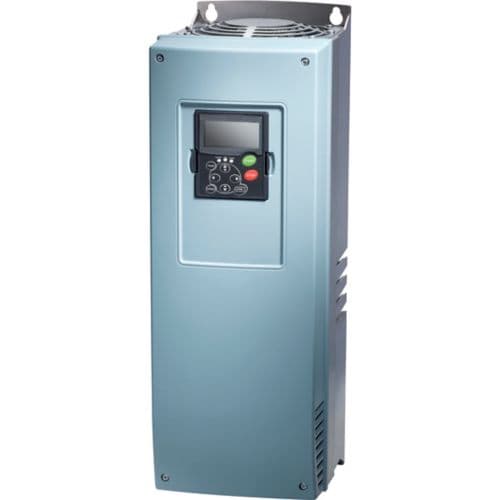

Eaton SVX Variable frequency drive

Eaton

Eaton SVX Variable frequency drive

رقم القطعة: 125777

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton SVX Variable frequency drive

المواصفات

Ambient operating temperature - max50 °C
Ambient operating temperature - min-10 °C
Ambient storage temperature - max70 °C
Ambient storage temperature - min-40 °C
Climatic proofing< 95 % relative humidity, no condensation, no corrosion, no dripping water
Product NameEaton SVX Variable frequency drive
Catalog Number125777
Model CodeSVX005A2-5A4N1
EAN4015081233878
Product Length/Depth558 mm
Product Height237 mm
Product Width195 mm
Product Weight18.5 kg
CertificationsCSA Class No.: 3211-06 Safety: EN 61800-5-1: 2003 IEC/EN61800-3 RoHS, ISO 9001 CUL UL 508C Specification for general requirements: IEC/EN 61800-2 UL File No.: E134360 CSA-C22.2 No. 14 IEC/EN61800-5 UL report applies to both US and Canada IEC/EN 61800-3 RCM CE DNV UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8 Certified by UL for use in Canada UL
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.125777.html
AltitudeMax. 1000 m Max. 3000 m Above 1000 m with 1 % performance reduction per 100 m
Ambient operating temperature at 150% overload - max50 °C
Ambient operating temperature at 150% overload - min-10 °C
