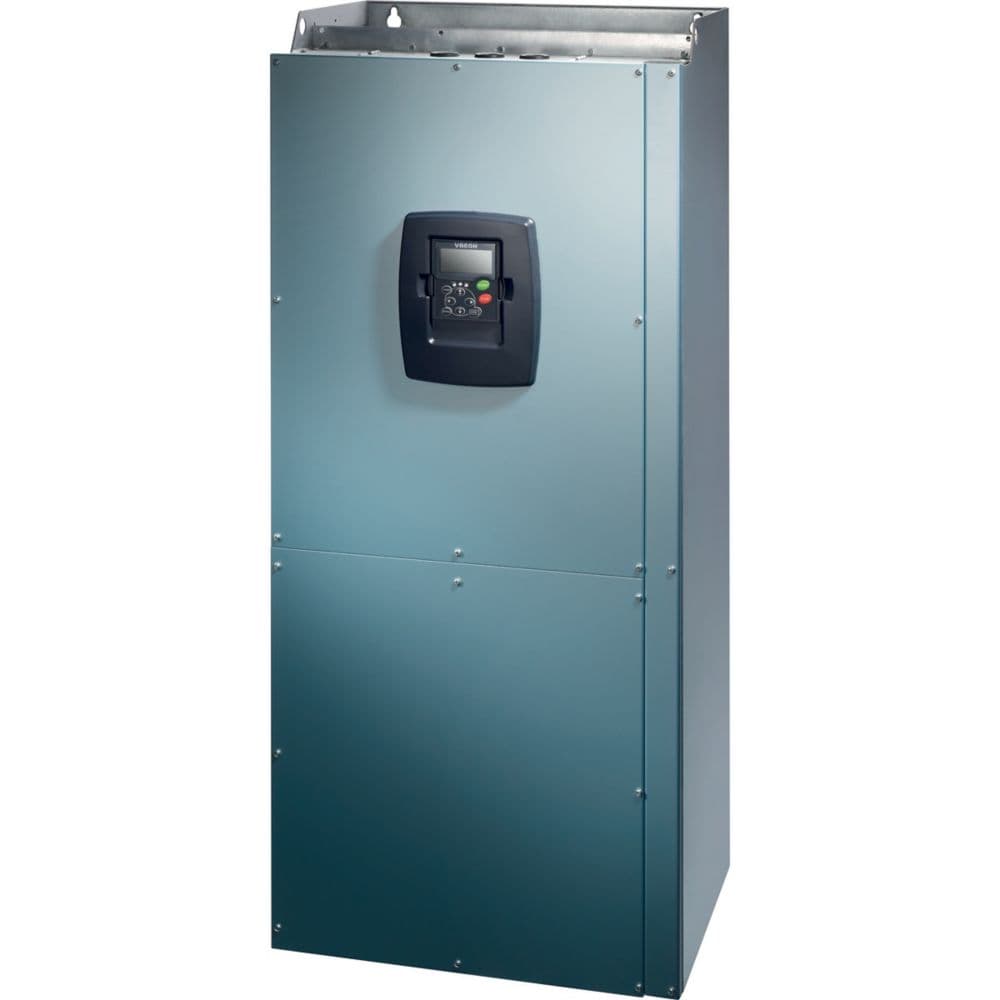

Eaton SVX Variable frequency drive

Eaton

Eaton SVX Variable frequency drive

رقم القطعة: 125789

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton SVX Variable frequency drive

المواصفات

Ambient operating temperature - max50 °C
Ambient operating temperature - min-10 °C
Ambient storage temperature - max70 °C
Ambient storage temperature - min-40 °C
Climatic proofing< 95 % relative humidity, no condensation, no corrosion, no dripping water
Product NameEaton SVX Variable frequency drive
Catalog Number125789
Model CodeSVX125A2-5A4N1
EAN4015081233991
Product Length/Depth1150 mm
Product Height362 mm
Product Width480 mm
Product Weight58 kg
CertificationsIEC/EN 61800-3 UL RCM IEC/EN61800-3 IEC/EN61800-5 UL report applies to both US and Canada Certified by UL for use in Canada Specification for general requirements: IEC/EN 61800-2 DNV RoHS, ISO 9001 UL File No.: E134360 UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8 UL 508C CSA-C22.2 No. 14 CUL Safety: EN 61800-5-1: 2003 CSA Class No.: 3211-06 CE
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.125789.html
AltitudeMax. 3000 m Above 1000 m with 1 % performance reduction per 100 m Max. 1000 m
Ambient operating temperature at 150% overload - max50 °C
Ambient operating temperature at 150% overload - min-10 °C
