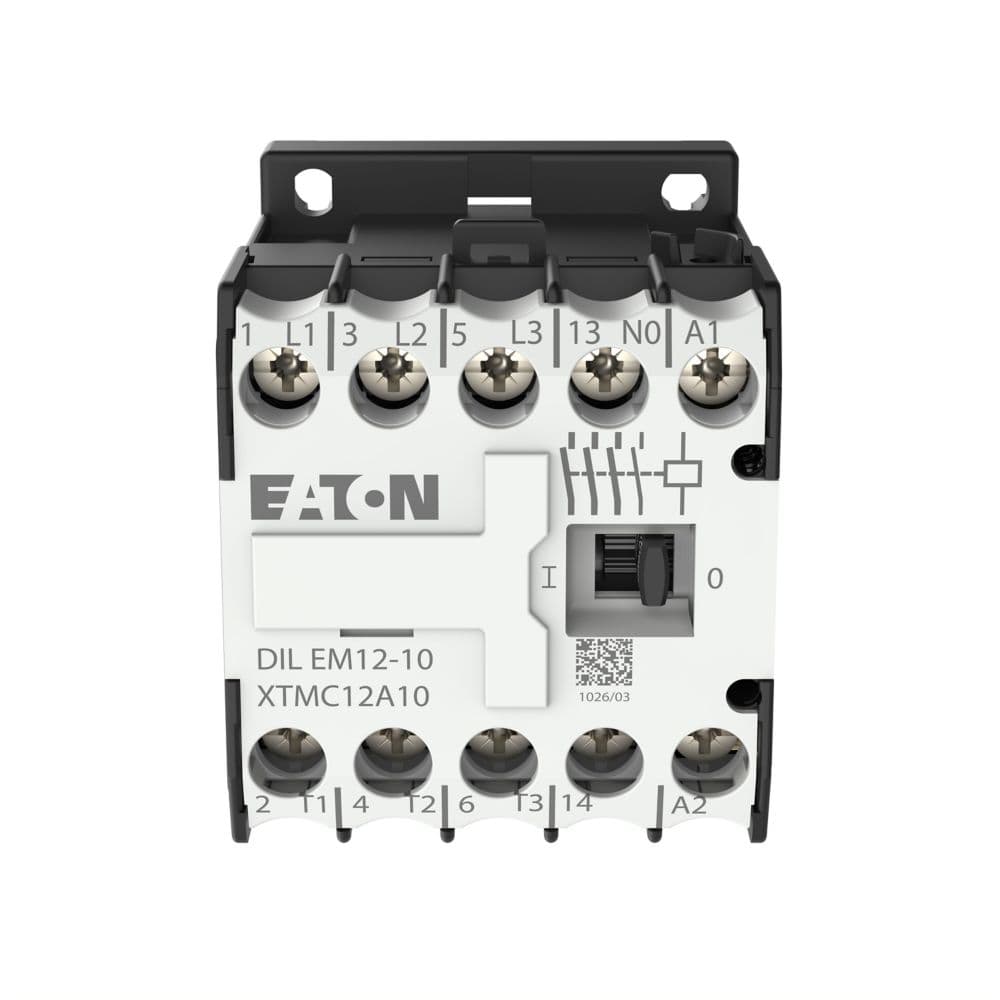

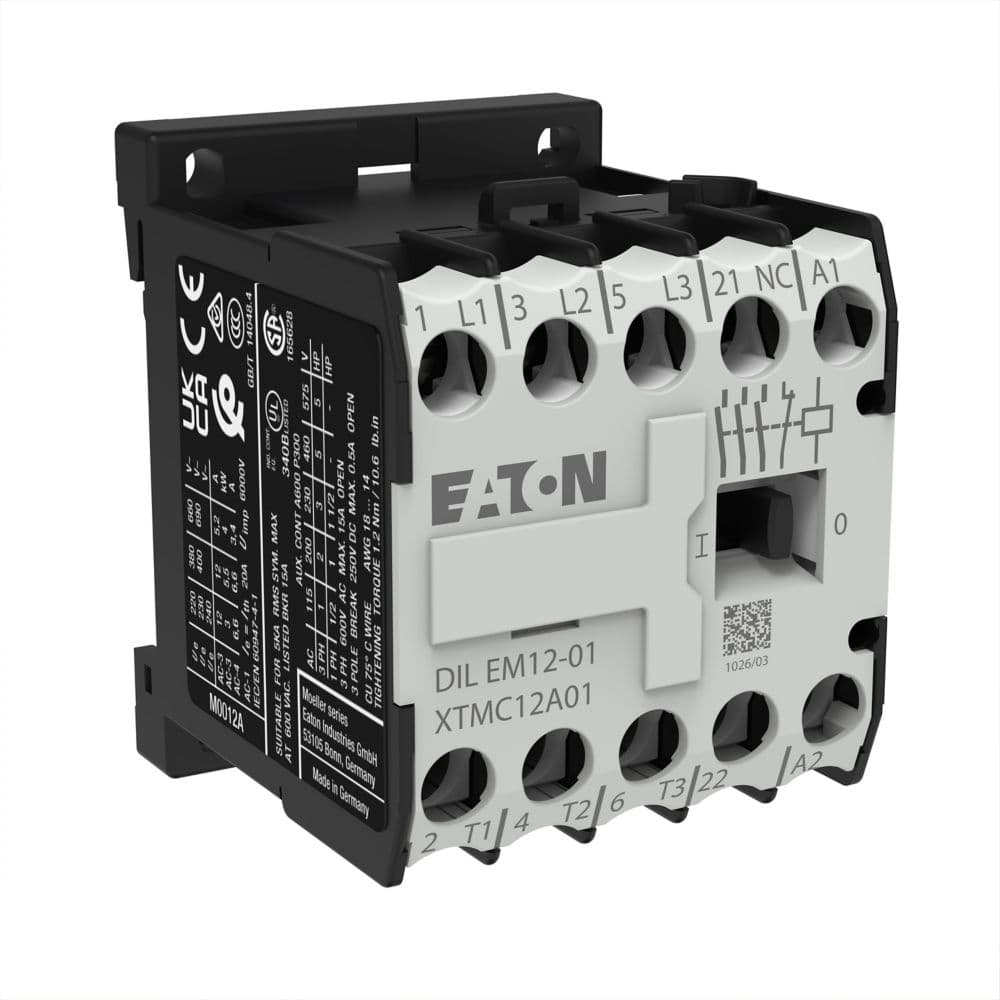

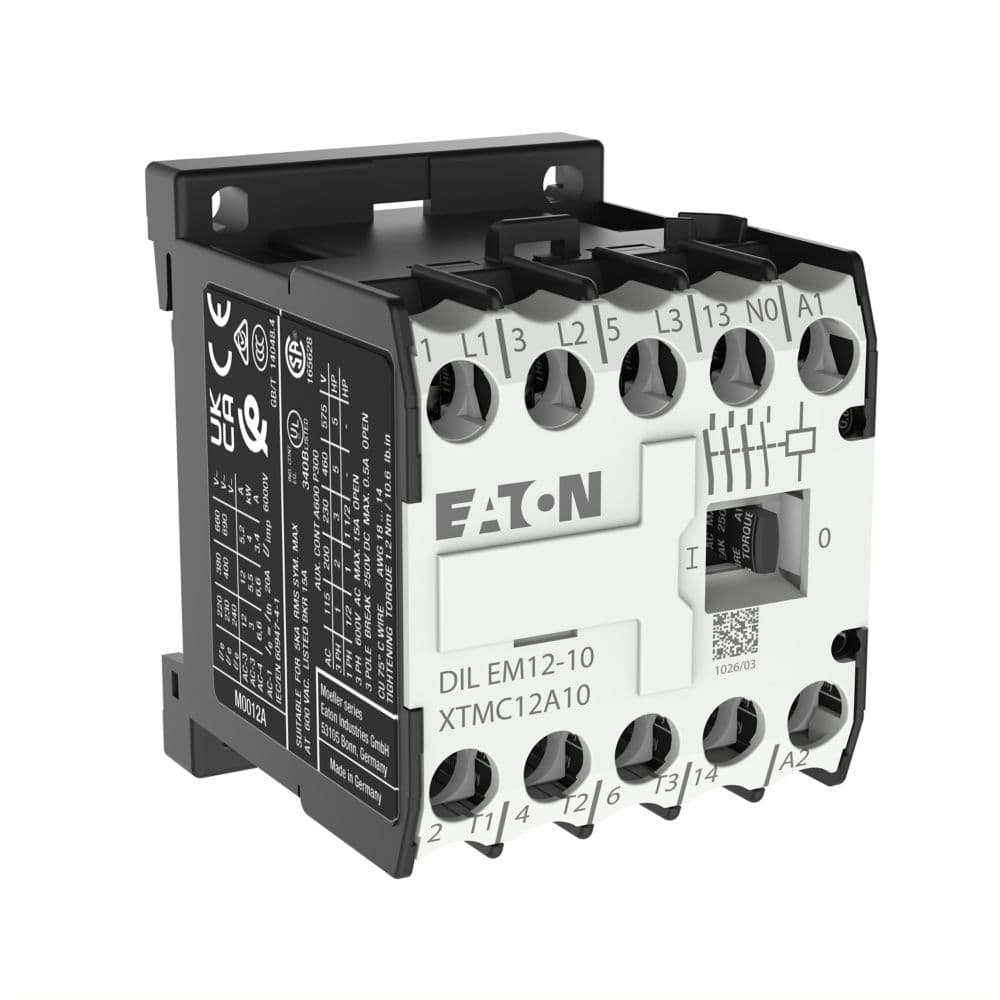

Eaton Moeller® series DILEM Mini contactor

Name: Eaton Moeller® series DILEM Mini contactor
Brand: Eaton
SKU: 127082

رقم القطعة: 127082

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series DILEM Mini contactor

Ambient operating temperature (enclosed) - max	40 °C
Ambient operating temperature (enclosed) - min	-25 °C
Ambient operating temperature - max	50 °C
Ambient operating temperature - min	-25 °C
Ambient storage temperature - max	80 °C
Ambient storage temperature - min	-40 °C
Climatic proofing	Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78
Product Name	Eaton Moeller® series DILEM Mini contactor
Catalog Number	127082
Model Code	DILEM12-10(230V50/60HZ)
EAN	4015081246175
Product Length/Depth	52 mm
Product Height	58 mm
Product Width	45 mm
Product Weight	0.17 kg
Certifications	UL CSA-C22.2 No. 14-05 IEC/EN 60947 CE UL Category Control No.: NLDX CSA Class No.: 3211-04 UL File No.: E29096 UL 508 CSA File No.: 012528 VDE 0660 CSA IEC/EN 60947-4-1
Source URL	https://www.eaton.com/gb/en-gb/skuPage.127082.html
Catalog Notes	Contacts according to EN 50012
