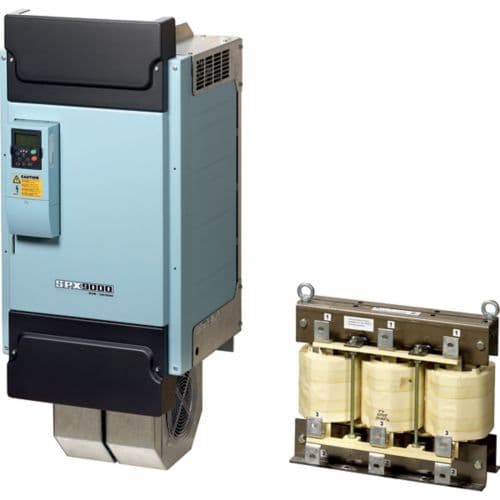

Eaton SPX variable frequency drive

Eaton

Eaton SPX variable frequency drive

رقم القطعة: 129602

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton SPX variable frequency drive

المواصفات

Ambient operating temperature - max40 °C
Ambient operating temperature - min-10 °C
Ambient storage temperature - max70 °C
Ambient storage temperature - min-40 °C
Climatic proofing< 95 % relative humidity, no condensation, no corrosion, no dripping water
Product NameEaton SPX variable frequency drive
Catalog Number129602
Model CodeSPX250A0-5A2N1
EAN4015081269297
Product Length/Depth506 mm
Product Height1165 mm
Product Width500 mm
Product Weight275 kg
CertificationsIEC/EN 61800-3 UL File No.: E134360 RCM CUL CSA-C22.2 No. 14 UL 508C CSA Class No.: 3211-06 DNV IEC/EN61800-5 Safety: EN 61800-5-1: 2003 Certified by UL for use in Canada RoHS, ISO 9001 Specification for general requirements: IEC/EN 61800-2 UL report applies to both US and Canada UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8 CE IEC/EN61800-3 UL
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.129602.html
AltitudeAbove 1000 m with 1 % performance reduction per 100 m Max. 1000 m Max. 3000 m
Ambient operating temperature at 150% overload - max40 °C
Ambient operating temperature at 150% overload - min-10 °C
