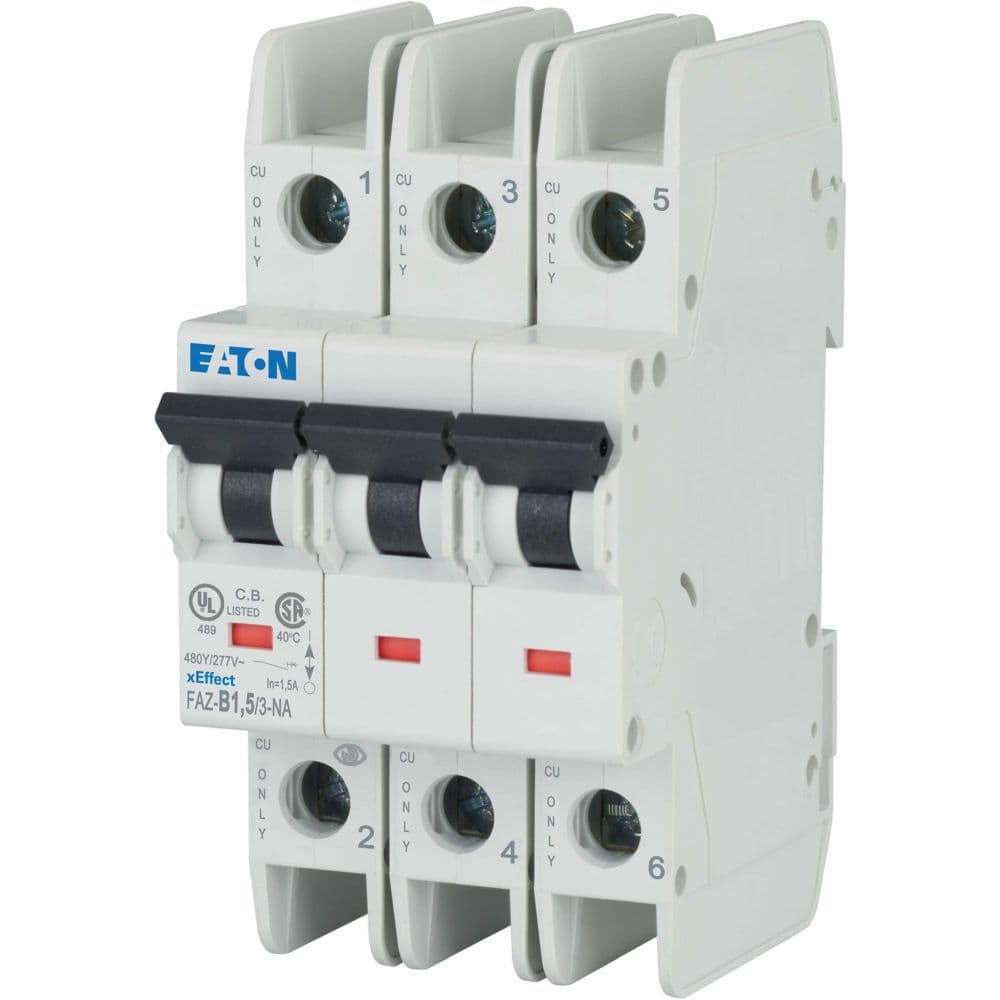

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

Eaton

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

رقم القطعة: 132713

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

المواصفات

FunctionsCurrent limiting circuit breaker
Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB
Catalog Number132713
Model CodeFAZ-B1,5/3-NA
EAN4015081296620
Product Length/Depth105 mm
Product Height75.5 mm
Product Width53.1 mm
Product Weight0.37 kg
CompliancesRoHS conform
CertificationsCSA (File No. 204453) UL (Category Control Number DIVQ) UL (File No. E235139) CE marking UL 489, CSA C22.2 No. 5 Specially designed for North America, suitable as BCPD North America (UL listed, CSA certified) CSA-C22.2 No. 5-09 CSA (Class No. 1432-01) IEC/EN 60947-2 IEC 60947-2 UL 489 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.132713.html
Used withMiniature circuit breaker FAZ-NA
FeaturesAdditional equipment possible
Current limiting class3
