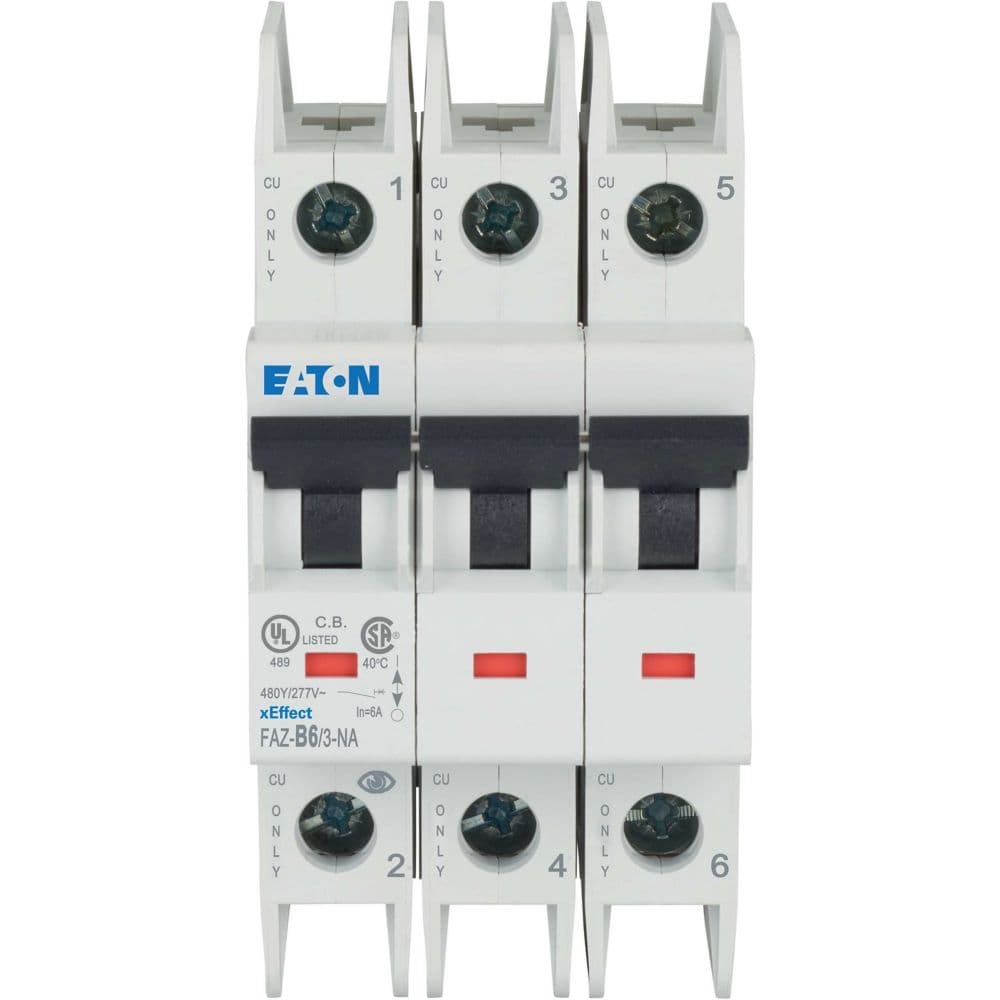

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

المواصفات

FunctionsCurrent limiting circuit breaker
Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB
Catalog Number132718
Model CodeFAZ-B6/3-NA
EAN4015081296675
Product Length/Depth105 mm
Product Height75.5 mm
Product Width53.1 mm
Product Weight0.361 kg
CompliancesRoHS conform
CertificationsUL (Category Control Number DIVQ) UL 489 North America (UL listed, CSA certified) UL 489, CSA C22.2 No. 5 Specially designed for North America, suitable as BCPD IEC 60947-2 CE marking IEC/EN 60947-2 CSA (File No. 204453) UL (File No. E235139) CSA-C22.2 No. 5-09 CSA (Class No. 1432-01) EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.132718.html
Used withMiniature circuit breaker FAZ-NA
FeaturesAdditional equipment possible
Current limiting class3
