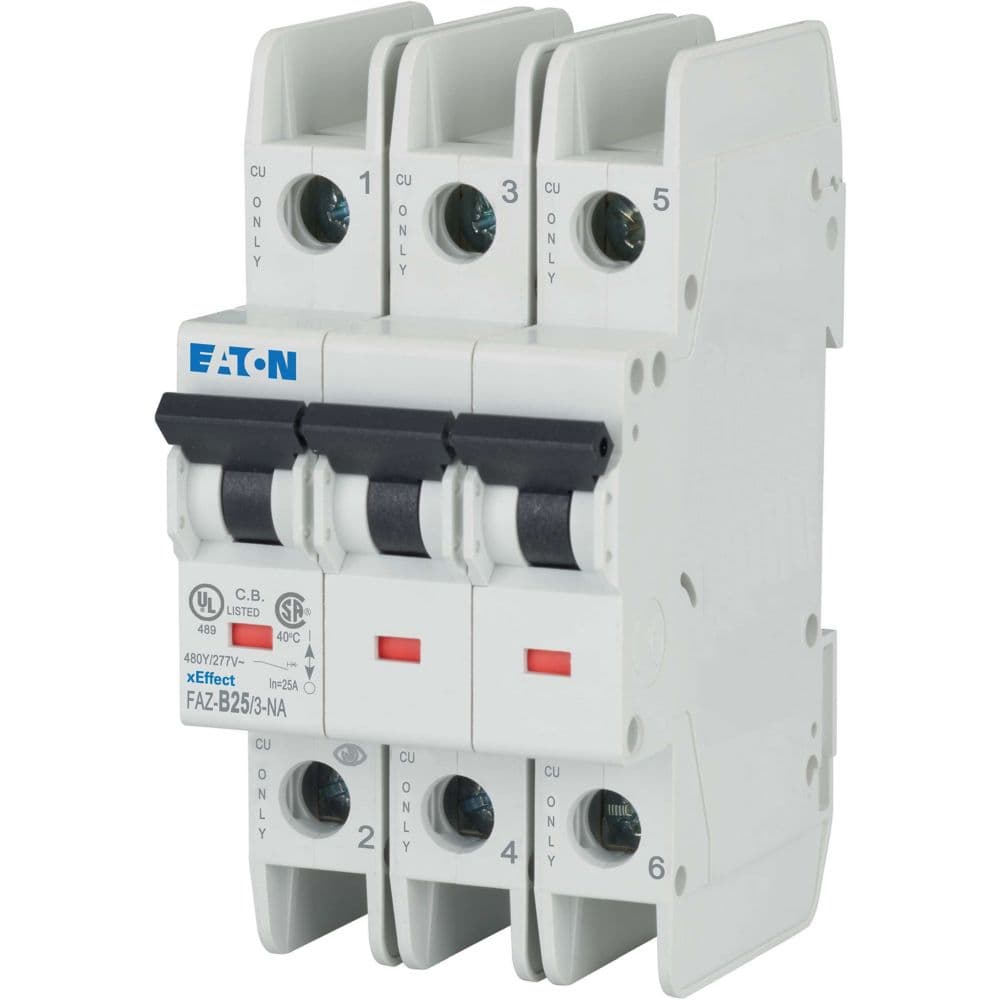

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

Eaton

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

رقم القطعة: 132726

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB

المواصفات

FunctionsCurrent limiting circuit breaker
Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ-NA, FAZ-RT MCB
Catalog Number132726
Model CodeFAZ-B25/3-NA
EAN4015081296750
Product Length/Depth105 mm
Product Height75.5 mm
Product Width53.1 mm
Product Weight0.379 kg
CompliancesRoHS conform
CertificationsCSA (Class No. 1432-01) Specially designed for North America, suitable as BCPD IEC 60947-2 UL 489 CE marking UL (Category Control Number DIVQ) UL (File No. E235139) UL 489, CSA C22.2 No. 5 CSA (File No. 204453) North America (UL listed, CSA certified) CSA-C22.2 No. 5-09 IEC/EN 60947-2 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.132726.html
Used withMiniature circuit breaker FAZ-NA
FeaturesAdditional equipment possible
Current limiting class3
