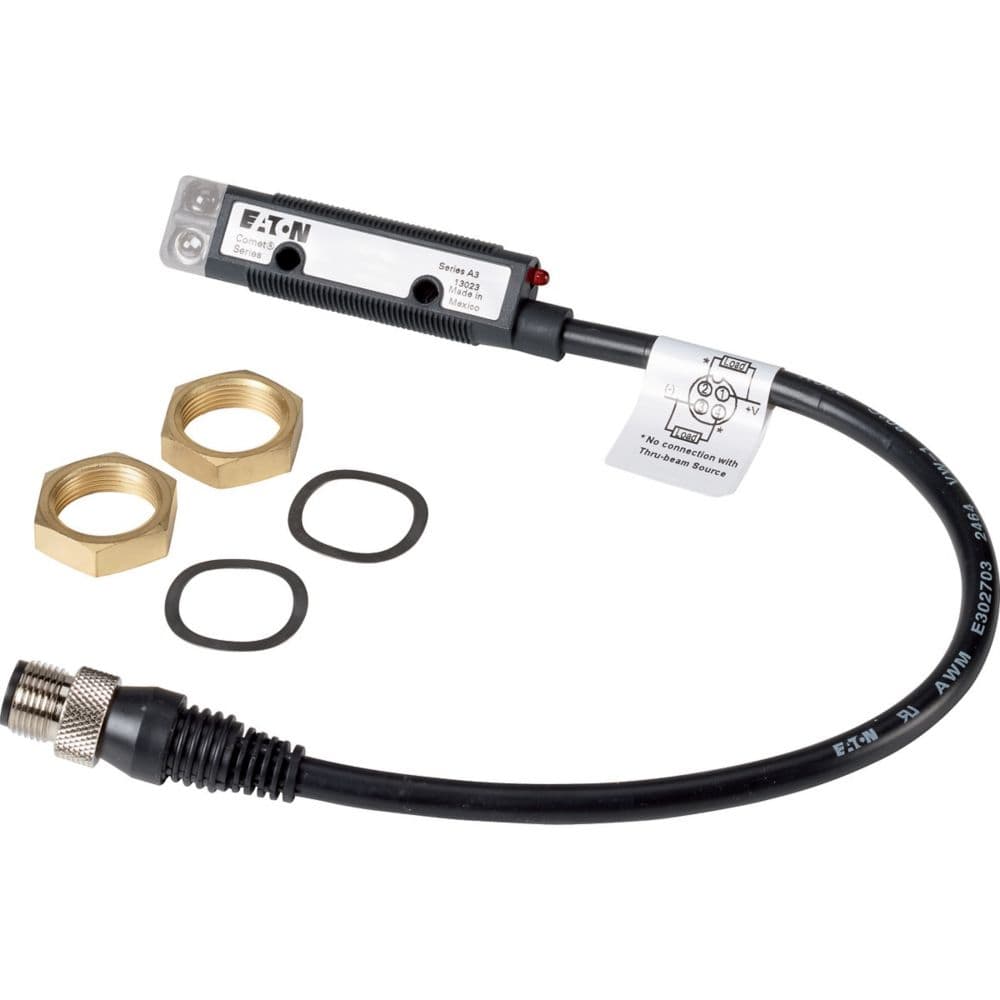

Eaton Moeller® series E58 Diffuse reflective sensor

Name: Eaton Moeller® series E58 Diffuse reflective sensor
Brand: Eaton
SKU: 135625

رقم القطعة: 135625

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series E58 Diffuse reflective sensor

المواصفات

Ambient operating temperature - max	70 °C
Ambient operating temperature - min	-40 °C
Functions	Reflected-light beam Short-circuit protection Protection against polarity reversal
Product Name	Eaton Moeller® series E58 Diffuse reflective sensor
Catalog Number	135625
Model Code	13106RQD07
EAN	4015081324187
Product Length/Depth	158.75 mm
Product Height	50.8 mm
Product Width	133.35 mm
Product Weight	0.32 kg
Certifications	CSA Class No.: 3211-07 CSA CSA-C22.2 No. 14 CSA File No.: 50513 UL 508 UL File No.: E117028 IEC/EN 60947-5-2 UL UL Category Control No.: NRKH, NRKH7 CE
Source URL	https://www.eaton.com/gb/en-gb/skuPage.135625.html
Features	Right-angled beam
Type	Optical sensors
Degree of protection	IP67 NEMA 6
Enclosure material	Plastic
Shock resistance	100 g, Mechanical, Shock duration 3 ms
Electric connection type	Plug-in connection
Product category	Comet Series
Connection type	4-wire Plug-in connection M12 x 1
Enclosure type	Cylinder, screw-thread
Voltage type	DC
Cable sheath material	Polyvinyl chloride (PVC)
Operating mode	Switching principle: Adjustable bright/dark switching
Explosion safety category for dust	None
Explosion safety category for gas	None
Light type	Infrared light
Interface type	Other
LED indicator	Status indication of Switching state: Red LED
Switch function type	Other
Load current	Max. 250 mA (Ie, NPN, 120 > 50°C) Max. 100 mA (Ie, PNP)
Laser protection class	None
Optical surface material	Plastic
Output current (mA) - max	250 mA
Rated control supply voltage (Us) at DC - max	30 V
Rated control supply voltage (Us) at DC - min	10 V
Rated switching distance (Sn)	200 mm
Sensor length	65 mm
Switching distance - max	200 mm
Voltage rating - max	30 V
Safety type (IEC 61496-1)	1
Switching frequency	500 Hz
Sensing mode	Light-/dark switching
Switching output type	PNP/NPN
Sensor material	Insulated material
Response time	1 ms
Number of contact energized outputs with signalling function	0
Number of outputs (protected contact energized)	0
Number of outputs (protected semiconductor)	0
Number of outputs (semiconductor with signaling function)	2
Adjustment type	Manual adjustment
Wire size	22
Operation agent-safety class	Safety class 2
Diameter sensor	18 mm
Operational current (Ib) in the switched state at 24 V DC	30 A
