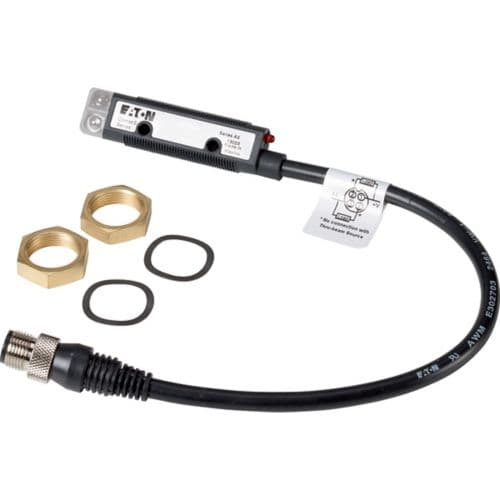

Eaton Moeller® series E58 Retroreflective sensor

Name: Eaton Moeller® series E58 Retroreflective sensor
Brand: Eaton
SKU: 135659

رقم القطعة: 135659

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series E58 Retroreflective sensor

المواصفات

Ambient operating temperature - max	70 °C
Ambient operating temperature - min	-40 °C
Functions	For combination with reflector Short-circuit protection Protection against polarity reversal Reflected-light beam
Product Name	Eaton Moeller® series E58 Retroreflective sensor
Catalog Number	135659
Model Code	14102R6517
EAN	4015081324521
Product Length/Depth	38.1 mm
Product Height	38.1 mm
Product Width	38.1 mm
Product Weight	0.23 kg
Certifications	CSA-C22.2 No. 14 CE UL 508 UL File No.: E117028 UL UL Category Control No.: NRKH, NRKH7 CSA Class No.: 3211-07 CSA File No.: 50513 IEC/EN 60947-5-2 CSA
Source URL	https://www.eaton.com/gb/en-gb/skuPage.135659.html
Features	Right-angled beam Non-polarized
Type	Optical sensors
Degree of protection	NEMA 6 IP67
Enclosure material	Plastic
Shock resistance	100 g, Mechanical, Shock duration 3 ms
Electric connection type	Cable
Product category	Comet Series
Connection type	4-wire 2 m connection cable
Enclosure type	Cylinder, screw-thread
Voltage type	DC
Operating mode	Switching principle: Adjustable bright/dark switching
Explosion safety category for dust	None
Explosion safety category for gas	None
Light type	Polarity free red light
Interface type	Other
LED indicator	Status indication of Switching state: Red LED
Switch function type	Programmable/configurable
Load current	Max. 250 mA (Ie, NPN, 120 > 50°C) Max. 100 mA (Ie, PNP)
Laser protection class	None
Optical surface material	Plastic
Output current (mA) - max	100 mA
Rated control supply voltage (Us) at DC - max	30 V
Rated control supply voltage (Us) at DC - min	10 V
Rated switching distance (Sn)	4500 mm
Sensor length	76 mm
Voltage rating - max	30 V
Safety type (IEC 61496-1)	1
Switching frequency	500 Hz
Sensing mode	Light-/dark switching
Switching output type	PNP
Sensor material	Insulated material
Response time	1 ms
Number of contact energized outputs with signalling function	0
Number of outputs (protected contact energized)	0
Number of outputs (protected semiconductor)	0
Number of outputs (semiconductor with signaling function)	2
Adjustment type	Manual adjustment
Diameter sensor	18 mm
Operational current (Ib) in the switched state at 24 V DC	30 A
