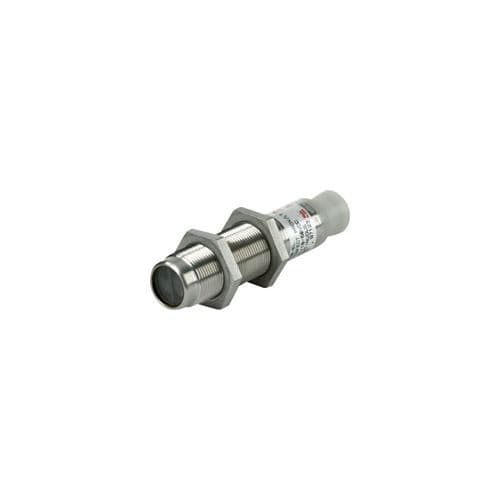

Eaton Moeller® series E58 Diffuse reflective sensor

Name: Eaton Moeller® series E58 Diffuse reflective sensor
Brand: Eaton
SKU: 135669

رقم القطعة: 135669

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series E58 Diffuse reflective sensor

المواصفات

Ambient operating temperature - max	55 °C
Ambient operating temperature - min	-40 °C
Functions	Short-circuit protection Reflected-light beam Protection against polarity reversal Protection against wire breakage
Product Name	Eaton Moeller® series E58 Diffuse reflective sensor
Catalog Number	135669
Model Code	E58-18DP50-DLP
EAN	4015081324620
Product Length/Depth	152.4 mm
Product Height	44.45 mm
Product Width	152.4 mm
Product Weight	0.23 kg
Certifications	UL 508 CSA-C22.2 No. 14 UL File No.: E166051 IEC/EN 60947-5-2 Certified by UL for use in Canada CE UL UL Category Control No.: NRKH, NRKH7 CSA File No.: UL report applies to both US and Canada
Source URL	https://www.eaton.com/gb/en-gb/skuPage.135669.html
Type	Optical sensors
Degree of protection	NEMA 6 IP68
Enclosure material	Metal
Fitted with:	Background suppression (Perfect Prox)
Shock resistance	100 g, Mechanical, Shock duration 3 ms
Electric connection type	Connector M12
Product category	E58 Harsh Duty Series
Connection type	2-wire Plug-in connection M12 x 1
Enclosure type	Cylinder, screw-thread
Voltage type	DC
Cable sheath material	Other
Operating mode	Switching principle: Light switching
Explosion safety category for dust	None
Explosion safety category for gas	None
Light type	Other
Interface type	Other
LED indicator	Status indication of Switching state: Red LED
Switch function type	Other
Load current	Max. 100 mA (Ie)
Laser protection class	None
Optical surface material	Glass
Output current (mA) - max	250 mA
Rated control supply voltage (Us) at DC - max	30 V
Rated control supply voltage (Us) at DC - min	10 V
Rated switching distance (Sn)	50 mm
Sensor length	80 mm
Switching distance - max	57 mm
Switching voltage of OSSD at state high	30 V
Voltage rating - max	50 V
Safety type (IEC 61496-1)	1
Switching frequency	500 Hz
Sensing mode	Light switching
Switching output type	PNP/NPN
Sensor material	Stainless steel
Wavelength of the sensor	660 nm
Response time	1.6 ms
Number of contact energized outputs with signalling function	0
Number of outputs (protected contact energized)	0
Number of outputs (protected semiconductor)	0
Number of outputs (semiconductor with signaling function)	2
Adjustment type	Other
Wire size	0
Operation agent-safety class	Safety class 2
Diameter sensor	18 mm
Triangulation	Background fade-out
Adjustment range - max	50 mm
Adjustment range - min	0 mm
Operational current (Ib) in the switched state at 24 V DC	1.7 A
