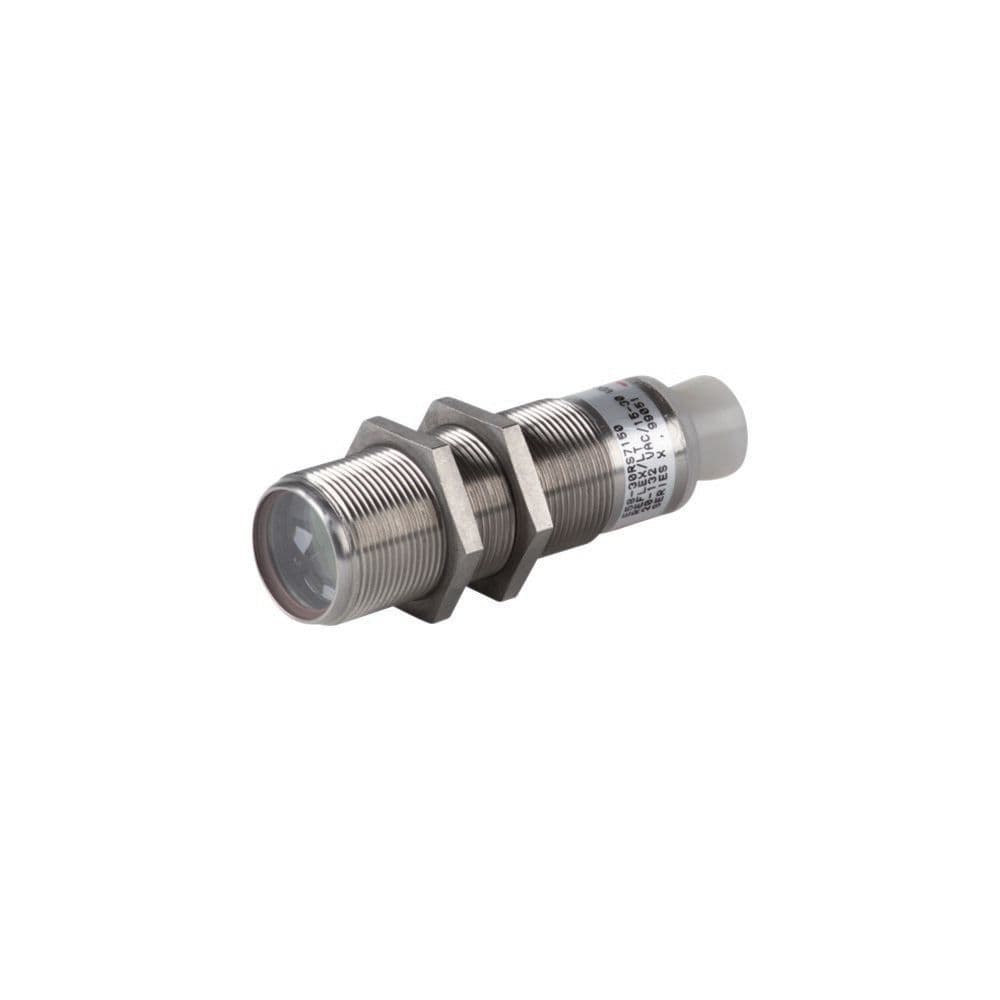

Eaton Moeller® series E58 Retroreflective sensor

Name: Eaton Moeller® series E58 Retroreflective sensor
Brand: Eaton
SKU: 135689

رقم القطعة: 135689

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series E58 Retroreflective sensor

المواصفات

Ambient operating temperature - max	55 °C
Ambient operating temperature - min	-40 °C
Functions	Reflected-light beam Short-circuit protection Protection against wire breakage For combination with reflector Protection against polarity reversal
Product Name	Eaton Moeller® series E58 Retroreflective sensor
Catalog Number	135689
Model Code	E58-30RS18-HDP
EAN	4015081324828
Product Length/Depth	165.1 mm
Product Height	44.45 mm
Product Width	165.1 mm
Product Weight	0.23 kg
Certifications	CSA-C22.2 No. 14 IEC/EN 60947-5-2 UL UL 508 CSA File No.: UL report applies to both US and Canada UL Category Control No.: NRKH, NRKH7 CE Certified by UL for use in Canada UL File No.: E166051
Source URL	https://www.eaton.com/gb/en-gb/skuPage.135689.html
Type	Optical sensors
Degree of protection	NEMA 6P, 13 IP68
Enclosure material	Metal
Shock resistance	100 g, Mechanical, Shock duration 3 ms
Electric connection type	Plug-in connection
Product category	E58 Harsh Duty Series
Connection type	4-wire Plug-in connection M12 x 1
Enclosure type	Cuboid
Voltage type	DC
Operating mode	Switching principle: Dark switching
Explosion safety category for dust	None
Explosion safety category for gas	None
Light type	Other
Interface type	Other
LED indicator	Status indication of Switching state: Red LED
Switch function type	Other
Load current	Max. 100 mA (Ie)
Laser protection class	None
Optical surface material	Glass
Output current (mA) - max	100 mA
Rated control supply voltage (Us) at DC - max	30 V
Rated control supply voltage (Us) at DC - min	10 V
Rated switching distance (Sn)	18000 mm
Sensor length	111 mm
Switching voltage of OSSD at state high	30 V
Voltage rating - max	30 V
Safety type (IEC 61496-1)	1
Switching frequency	312 Hz
Sensing mode	Dark switching
Switching output type	PNP
Sensor material	Stainless steel
Response time	1.6 ms
Number of contact energized outputs with signalling function	0
Number of outputs (protected contact energized)	0
Number of outputs (protected semiconductor)	0
Number of outputs (semiconductor with signaling function)	2
Adjustment type	Other
Diameter sensor	30 mm
