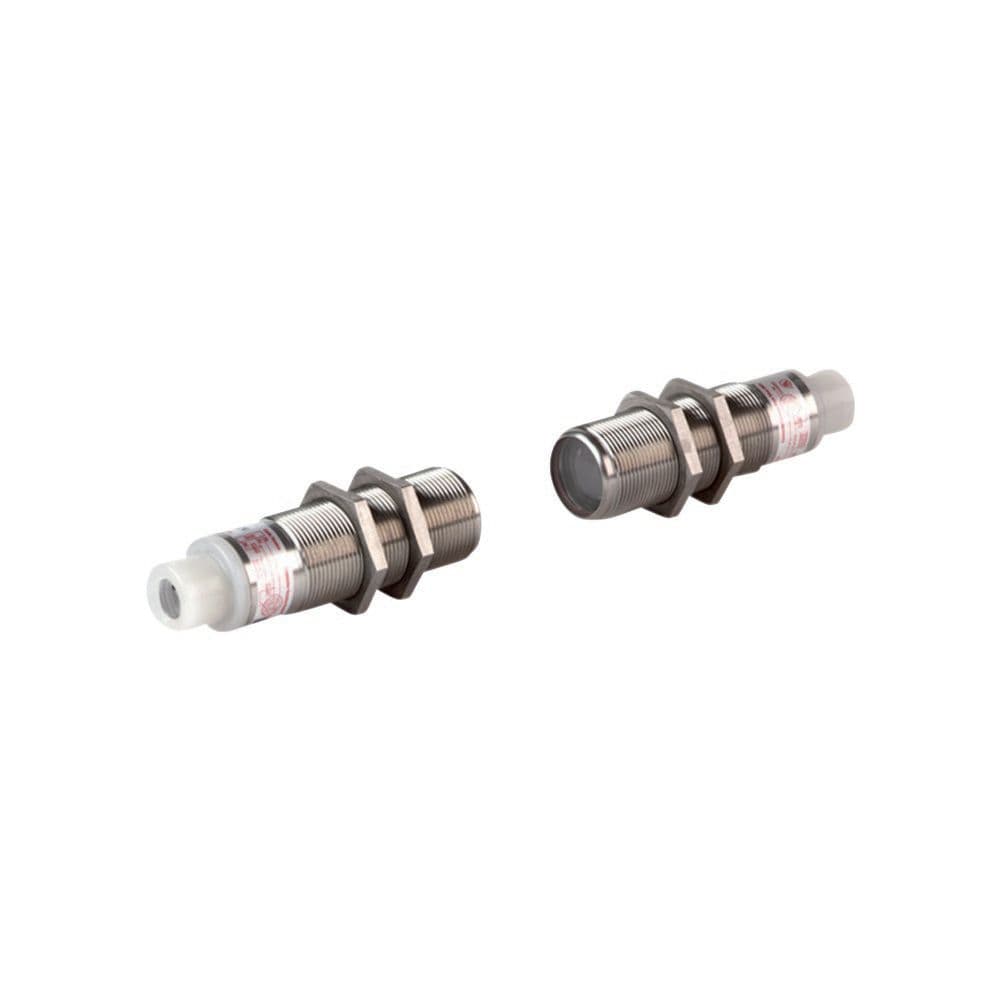

Eaton Moeller® series E58 Thru-beam photoelectric sensor

Name: Eaton Moeller® series E58 Thru-beam photoelectric sensor
Brand: Eaton
SKU: 135697

رقم القطعة: 135697

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series E58 Thru-beam photoelectric sensor

المواصفات

Ambient operating temperature - max	55 °C
Ambient operating temperature - min	-40 °C
Functions	Short-circuit protection Protection against polarity reversal Thru-light beam Protection against wire breakage
Product Name	Eaton Moeller® series E58 Thru-beam photoelectric sensor
Catalog Number	135697
Model Code	E58-30TS250-HAP
EAN	4015081324903
Product Length/Depth	228.6 mm
Product Height	44.45 mm
Product Width	165.1 mm
Product Weight	0.2 kg
Certifications	CSA-C22.2 No. 14 UL Category Control No.: NRKH, NRKH7 Certified by UL for use in Canada CSA File No.: UL report applies to both US and Canada IEC/EN 60947-5-2 UL File No.: E166051 CE UL UL 508
Source URL	https://www.eaton.com/gb/en-gb/skuPage.135697.html
Type	Optical sensors
Degree of protection	NEMA 4 IP68
Enclosure material	Metal
Fitted with:	Transmitter (for combination with detector)
Shock resistance	100 g, Mechanical, Shock duration 3 ms
Electric connection type	Plug-in connection
Product category	E58 Harsh Duty Series
Connection type	Plug-in connection M12 x 1 4-wire
Enclosure type	Cylinder, screw-thread
Voltage type	DC
Cable sheath material	Polyvinyl chloride (PVC)
Explosion safety category for dust	None
Explosion safety category for gas	None
Light type	Other
Interface type	Other
LED indicator	Status indication of Operating voltage: Red LED
Switch function type	Other
Load current	Max. 100 mA (Ie)
Laser protection class	None
Optical surface material	Glass
Output current (mA) - max	100 mA
Rated control supply voltage (Us) at DC - max	30 V
Rated control supply voltage (Us) at DC - min	10 V
Rated switching distance (Sn)	250000 mm
Sensor length	111 mm
Switching voltage of OSSD at state high	30 V
Voltage rating - max	30 V
Safety type (IEC 61496-1)	1
Switching frequency	312 Hz
Sensing mode	Light-/dark switching
Switching output type	PNP
Sensor material	Stainless steel
Response time	1 ms
Number of contact energized outputs with signalling function	0
Number of outputs (protected contact energized)	0
Number of outputs (protected semiconductor)	0
Number of outputs (semiconductor with signaling function)	0
Adjustment type	Other
Wire size	0
Operation agent-safety class	Safety class 2
Device type	Transmitter
Diameter sensor	30 mm
