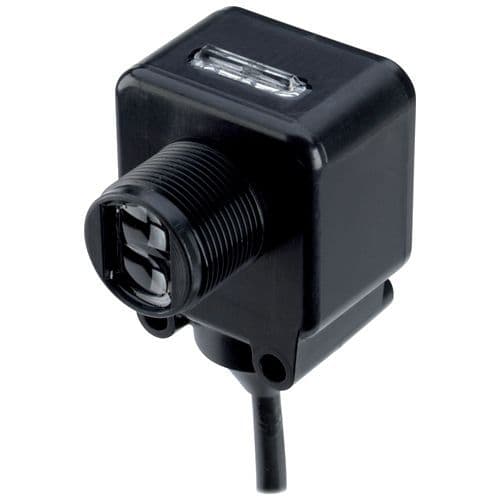

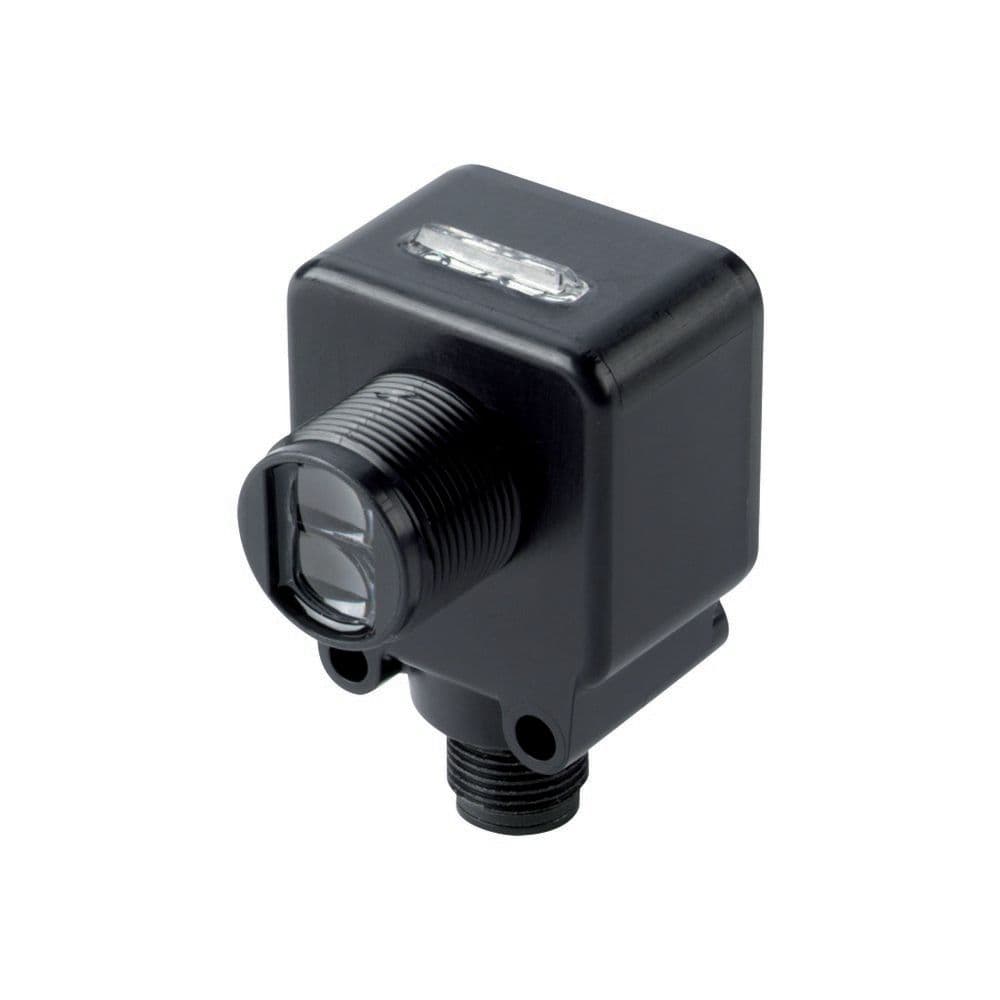

Eaton Moeller® series E65 Diffuse reflective sensor

Name: Eaton Moeller® series E65 Diffuse reflective sensor
Brand: Eaton
SKU: 135711

رقم القطعة: 135711

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series E65 Diffuse reflective sensor

المواصفات

Ambient operating temperature - max	55 °C
Ambient operating temperature - min	-25 °C
Ambient storage temperature - max	70 °C
Ambient storage temperature - min	-25 °C
Functions	Protection against wire breakage Short-circuit protection Protection against polarity reversal Reflected-light beam
Product Name	Eaton Moeller® series E65 Diffuse reflective sensor
Catalog Number	135711
Model Code	E65-SMPP100-HDD
EAN	4015081325047
Product Length/Depth	139.7 mm
Product Height	139.7 mm
Product Width	38.1 mm
Product Weight	0.11 kg
Certifications	UL CSA File No.: UL report applies to both US and Canada IEC/EN 60947-5-2 Certified by UL for use in Canada UL 508 CSA-C22.2 No. 14 CE UL Category Control No.: NRKH, NRKH7 UL File No.: E166051
Source URL	https://www.eaton.com/gb/en-gb/skuPage.135711.html
Catalog Notes	Yellow
Type	Optical sensors
Degree of protection	NEMA 6 IP68
Enclosure material	Plastic
Fitted with:	Background suppression (Perfect Prox)
Shock resistance	50 g, Mechanical, Shock duration 10 ms
Electric connection type	Plug-in connection
Operating temperature - max	55 °C
Operating temperature - min	-25 °C
Product category	E65 SM Series
Connection type	4-wire Plug-in connection M12 x 1
Enclosure type	Cuboid
Voltage type	DC
Cable sheath material	Other
Operating mode	Switching principle: Dark switching
Explosion safety category for dust	None
Explosion safety category for gas	None
Light type	Other
Interface type	Other
LED indicator	Status indication of Operating voltage: Green LED Status indication of Switching state: Red LED
Switch function type	Other
Load current	Max. 100 mA (Ie)
Laser protection class	None
Optical surface material	Plastic
Output current (mA) - max	100 mA
Rated control supply voltage (Us) at DC - max	30 V
Rated control supply voltage (Us) at DC - min	10 V
Rated switching distance (Sn)	100 mm
Sensor height	55 mm
Sensor length	41 mm
Switching distance - max	100 mm
Switching voltage of OSSD at state high	30 V
Voltage rating - max	30 V
Safety type (IEC 61496-1)	1
Switching frequency	500 Hz
Sensing mode	Dark switching
Switching output type	PNP/NPN
Sensor material	Insulated material
Wavelength of the sensor	660 nm
Width sensor	33 mm
Response time	1 ms
Number of contact energized outputs with signalling function	0
Number of outputs (protected contact energized)	0
Number of outputs (protected semiconductor)	0
Number of outputs (semiconductor with signaling function)	1
Adjustment type	Other
Wire size	0
Operation agent-safety class	Safety class 2
Output current at protected output - max	100 mA
Triangulation	Background fade-out
Adjustment range - max	100 mm
Adjustment range - min	0 mm
Operational current (Ib) in the switched state at 24 V DC	20 A
