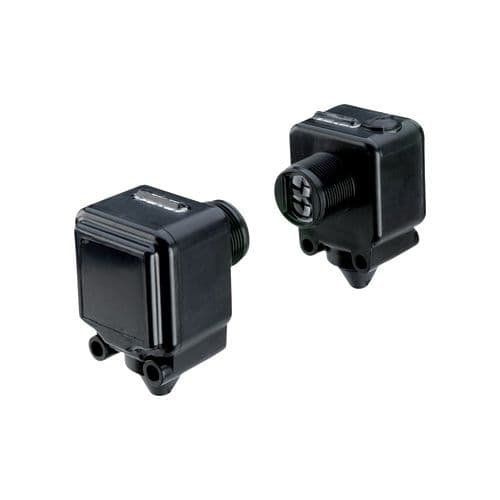

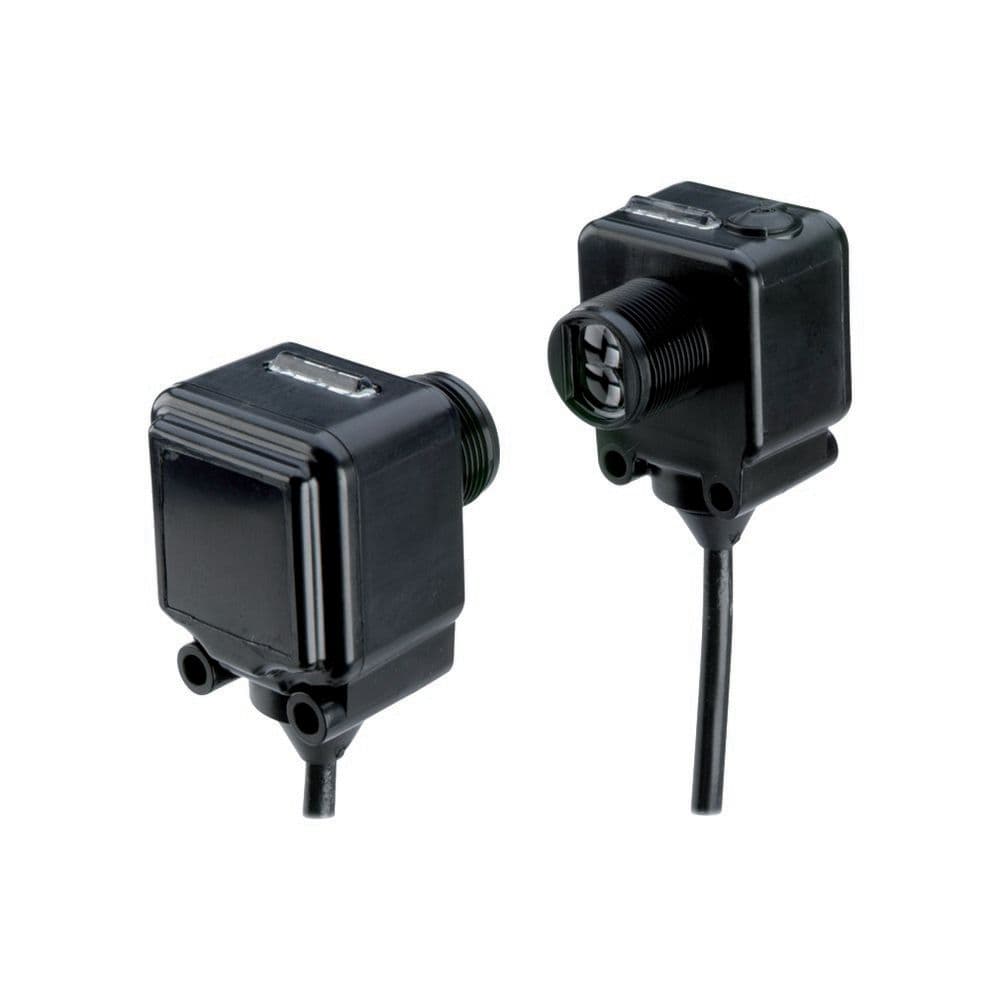

Eaton Moeller® series E65 Thru-beam photoelectric sensor

Name: Eaton Moeller® series E65 Thru-beam photoelectric sensor
Brand: Eaton
SKU: 135734

رقم القطعة: 135734

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series E65 Thru-beam photoelectric sensor

المواصفات

Ambient operating temperature - max	55 °C
Ambient operating temperature - min	-25 °C
Ambient storage temperature - max	70 °C
Ambient storage temperature - min	-25 °C
Functions	Protection against wire breakage Thru-light beam For combination with detector Protection against polarity reversal Short-circuit protection
Product Name	Eaton Moeller® series E65 Thru-beam photoelectric sensor
Catalog Number	135734
Model Code	E65-SMTS15-HA
EAN	4015081325276
Product Length/Depth	139.7 mm
Product Height	139.7 mm
Product Width	38.1 mm
Product Weight	0.11 kg
Certifications	CSA-C22.2 No. 14 UL Category Control No.: NRKH, NRKH7 UL File No.: E166051 CE CSA File No.: UL report applies to both US and Canada UL IEC/EN 60947-5-2 UL 508 Certified by UL for use in Canada
Source URL	https://www.eaton.com/gb/en-gb/skuPage.135734.html
Catalog Notes	Yellow
Type	Optical sensors
Degree of protection	NEMA 4X IP68
Enclosure material	Plastic
Fitted with:	Transmitter (for combination with detector)
Shock resistance	50 g, Mechanical, Shock duration 10 ms
Electric connection type	Cable
Operating temperature - max	55 °C
Operating temperature - min	-25 °C
Product category	E65 SM Series
Connection type	4-wire 2 m connection cable
Enclosure type	Cuboid
Voltage type	DC
Cable sheath material	Polyvinyl chloride (PVC)
Explosion safety category for dust	None
Explosion safety category for gas	None
Light type	Polarity free red light
Interface type	Other
LED indicator	Status indication of Operating voltage: Green LED Status indication of Switching state: Red LED
Switch function type	Other
Load current	Max. 100 mA (Ie)
Laser protection class	None
Optical surface material	Plastic
Rated control supply voltage (Us) at DC - max	30 V
Rated control supply voltage (Us) at DC - min	10 V
Rated switching distance (Sn)	15000 mm
Sensor height	43 mm
Sensor length	41 mm
Voltage rating - max	30 V
Safety type (IEC 61496-1)	1
Sensing mode	Light-/dark switching
Switching output type	NPN
Sensor material	Insulated material
Wavelength of the sensor	660 nm
Width sensor	33 mm
Response time	1 ms
Number of contact energized outputs with signalling function	0
Number of outputs (protected contact energized)	0
Number of outputs (protected semiconductor)	0
Number of outputs (semiconductor with signaling function)	0
Adjustment type	Other
Wire size	0
Operation agent-safety class	Safety class 2
Device type	Transmitter
Operational current (Ib) in the switched state at 24 V DC	40 A
Analog outputs	Analog output 4 mA ... 20 mA
