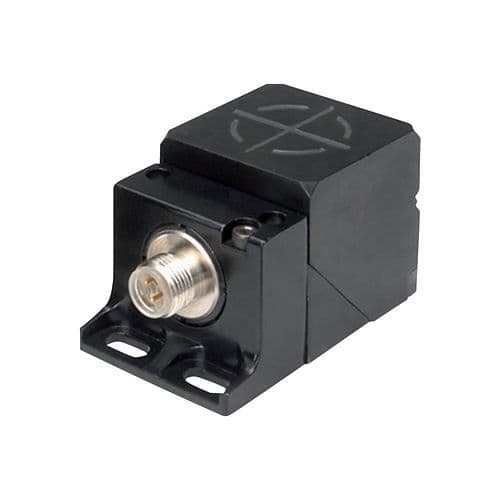

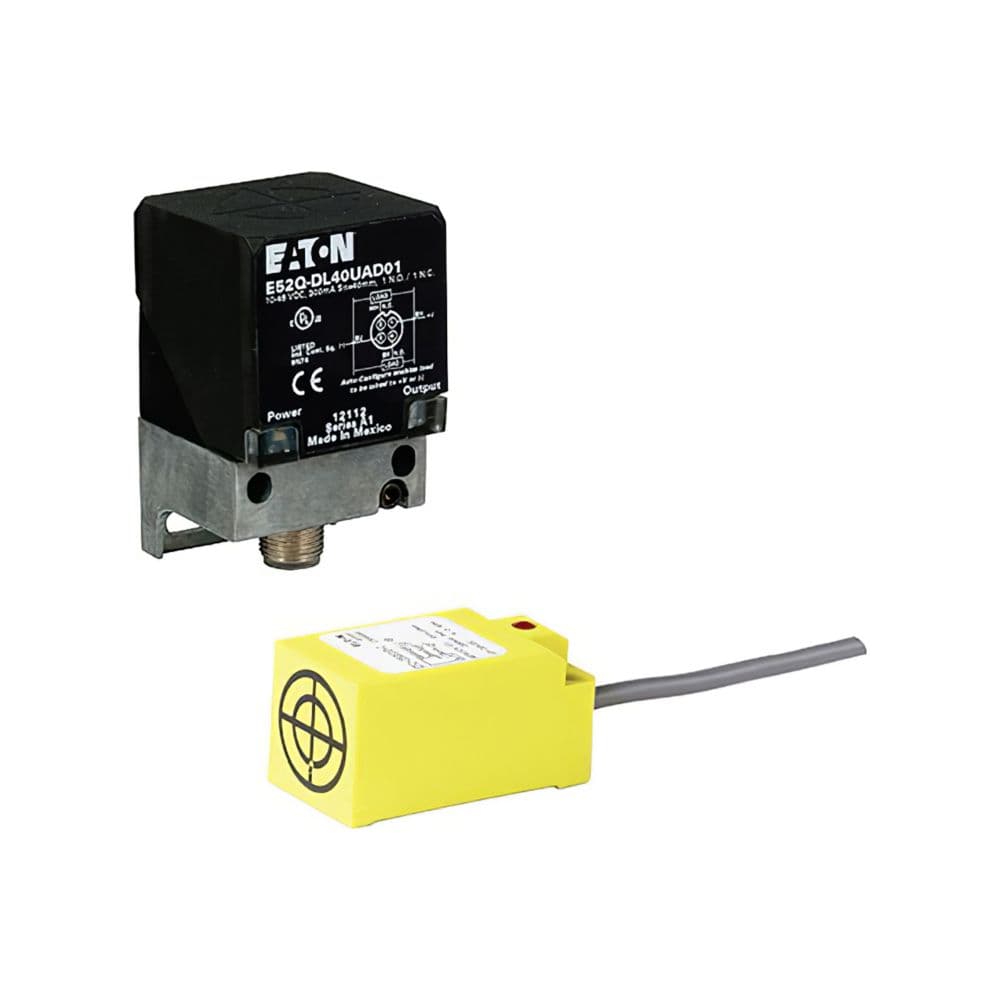

Eaton E52 inductive proximity sensor

Name: Eaton E52 inductive proximity sensor
Brand: Eaton
SKU: 135808

رقم القطعة: 135808

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton E52 inductive proximity sensor

المواصفات

Ambient operating temperature - max	70 °C
Ambient operating temperature - min	-40 °C
Functions	Protection against wire breakage Protection against polarity reversal Short-circuit protection
Number of contacts (normally closed contacts)	1
Number of contacts (normally open contacts)	1
Product Name	Eaton E52 inductive proximity sensor
Catalog Number	135808
Model Code	E52Q-DL25UAD01
EAN	4015081326013
Product Length/Depth	41.28 mm
Product Height	79.38 mm
Product Width	44.45 mm
Product Weight	0.27 kg
Certifications	Certified by UL for use in Canada CSA-C22.2 No. 14 UL File No.: E166051 CE CSA File No.: UL report applies to both US and Canada UL Category Control No.: NRKH, NRKH7 UL UL 508 IEC/EN 60947-5-2
Source URL	https://www.eaton.com/gb/en-gb/skuPage.135808.html
Catalog Notes	Housing adapter
Type	Inductive sensor
Surface finishing	Zinc alloy
Degree of protection	IP67 NEMA 4X, 6, 13
Enclosure material	Plastic
Mounting method	Non-flush mounting
Material	Zinc (Insulated)
Shock resistance	30 g, Mechanical, Shock duration 11 ms
Electric connection type	Connector M12
Product category	E52 Cube Series
Connection type	Plug-in connection M12 x 1 4-wire
Enclosure type	Cuboid
Voltage type	DC
Enclosure material finishing	Other
Explosion safety category for dust	None
Explosion safety category for gas	None
Interface type	None
LED indicator	Status indication of Switching state: Red LED Status indication of Operating voltage: Green LED
Switch function type	Anticoincidence
Load current	Max. 300 mA (Ie)
Rated control supply voltage (Us) at DC - max	48 V
Rated control supply voltage (Us) at DC - min	6 V
Sensor height	40 mm
Sensor length	40 mm
Voltage rating - max	48 V
Switching frequency	100 Hz
Switching output type	NPN
Width sensor	40 mm
Number of contact energized outputs with signalling function	0
Number of outputs (protected contact energized)	0
Number of outputs (protected semiconductor)	0
Number of outputs (semiconductor with signaling function)	1
Supply voltage - max	48 V
Supply voltage - min	6 V
Installation type	Not flat
Operational current (Ib) in the switched state at 24 V DC	25 A
Safety performance level (EN ISO 13849-1)	None
SIL (IEC 61508)	None
Actuation type	Metallic Target
Category (EN 954-1)	B
Repeatability	2 %
Switching hysteresis of Sn	15 %
Voltage drop (Ud)	2.5 V
Residual current	0.15 mA (through the load in the blocked state at 230 V AC and 24 V DC)
Temperature drift of sn	10 %
Rated switching distance (Sn) - max	25 mm
