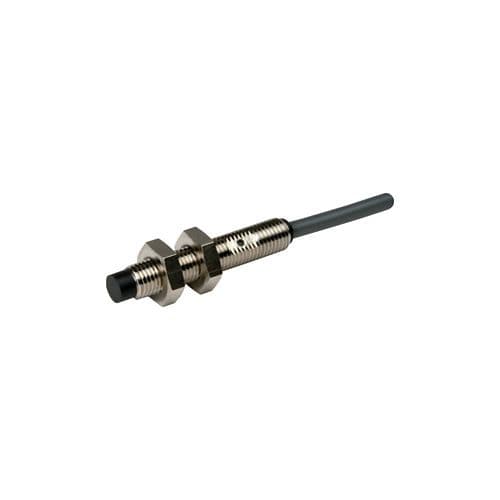

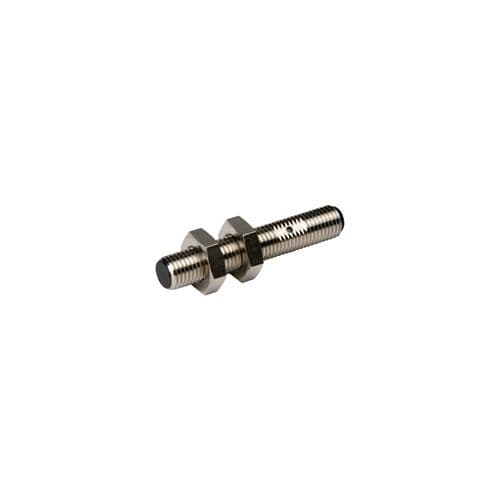

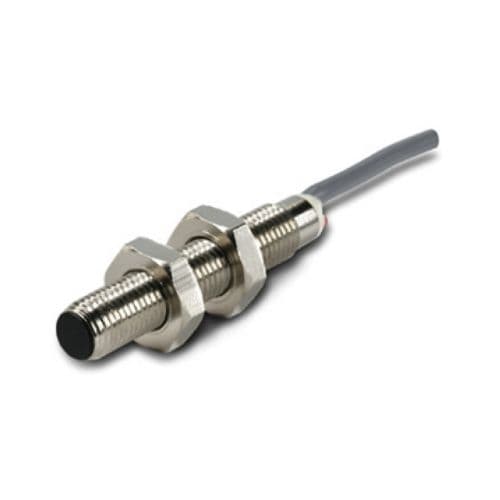

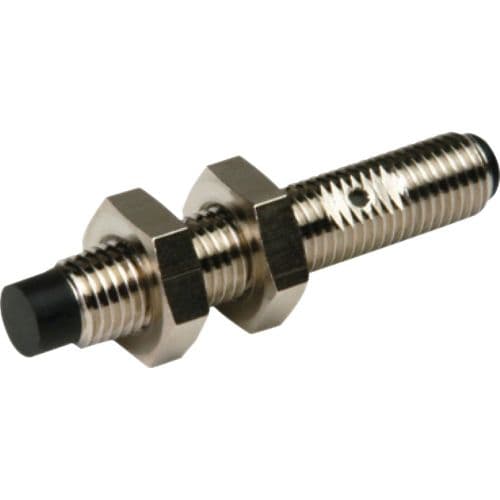

Eaton Moeller® series E57 Proximity switch

Name: Eaton Moeller® series E57 Proximity switch
Brand: Eaton
SKU: 135853

رقم القطعة: 135853

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series E57 Proximity switch

المواصفات

Ambient operating temperature - max	60 °C
Ambient operating temperature - min	0 °C
Functions	Protection against wire breakage Short-circuit protection Protection against polarity reversal
Number of contacts (normally open contacts)	1
Product Name	Eaton Moeller® series E57 Proximity switch
Catalog Number	135853
Model Code	E57-08GE03-G
EAN	4015081326464
Product Length/Depth	165.1 mm
Product Height	12.7 mm
Product Width	139.7 mm
Product Weight	0.16 kg
Certifications	CSA File No.: 224447 CSA CE IEC/EN 60947-5-2 UL File No.: CSA report applies to both US and Canada CSA Class No.: 4652-04 / 4652-84 UL 508 CSA-C22.2 No. 14
Source URL	https://www.eaton.com/gb/en-gb/skuPage.135853.html
Type	Inductive sensor
Degree of protection	IP69 IP67 NEMA Other
Enclosure material	Metal
Mounting method	Flush mounting
Material	Stainless steel
Shock resistance	30 g, Mechanical, Shock duration 11 ms
Electric connection type	Cable
Product category	E57 Global Series
Connection type	2 m connection cable 3-wire
Enclosure type	Cylinder, screw-thread
Voltage type	DC
Enclosure material finishing	Other
Explosion safety category for dust	None
Explosion safety category for gas	None
Interface type	None
LED indicator	Status indication of Switching state: Red LED
Switch function type	Normally open contact
Load current	Max. 100 mA (Ie)
Rated control supply voltage (Us) at DC - max	30 V
Rated control supply voltage (Us) at DC - min	10 V
Sensor length	46 mm
Voltage rating - max	30 V
Switching frequency	2000 Hz
Switching output type	PNP
Number of contact energized outputs with signalling function	0
Number of outputs (protected contact energized)	0
Number of outputs (protected semiconductor)	0
Number of outputs (semiconductor with signaling function)	1
Diameter sensor	8 mm
Supply voltage - max	30 V
Supply voltage - min	10 V
Installation type	Concise
Operational current (Ib) in the switched state at 24 V DC	10 A
Safety performance level (EN ISO 13849-1)	None
SIL (IEC 61508)	None
Residual ripple	10 % (Uₑ)
Actuation type	Metallic Target
Category (EN 954-1)	B
Repeatability	1 %
Switching hysteresis of Sn	15 %
Voltage drop (Ud)	1.5 V
Residual current	0.01 mA (through the load in the blocked state at 230 V AC and 24 V DC)
Temperature drift of sn	10 %
Rated switching distance (Sn) - max	3 mm
