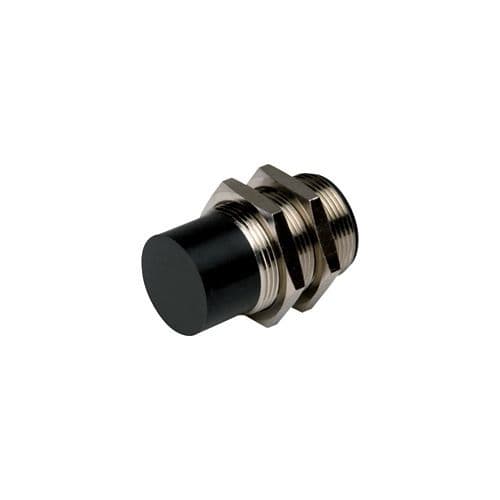

Eaton Moeller® series E57 Proximity switch
رقم القطعة: 135961
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Eaton Moeller® series E57 Proximity switch
المواصفات
| Ambient operating temperature - max | 60 °C |
|---|---|
| Ambient operating temperature - min | 0 °C |
| Number of contacts (normally open contacts) | 1 |
| Product Name | Eaton Moeller® series E57 Proximity switch |
| Catalog Number | 135961 |
| Model Code | E57-30GE25-D |
| EAN | 4015081327546 |
| Product Length/Depth | 165.1 mm |
| Product Height | 31.75 mm |
| Product Width | 139.7 mm |
| Product Weight | 0.28 kg |
| Certifications | CSA-C22.2 No. 14 UL 508 CSA Class No.: 4652-04 / 4652-84 UL File No.: CSA report applies to both US and Canada CE CSA File No.: 224447 IEC/EN 60947-5-2 CSA |
| Source URL | https://www.eaton.com/gb/en-gb/skuPage.135961.html |
| Type | Inductive sensor |
| Degree of protection | IP69 IP67 NEMA Other |
| Enclosure material | Metal |
| Mounting method | Non-flush mounting |
| Material | Metal |
| Shock resistance | 30 g, Mechanical, Shock duration 11 ms |
| Electric connection type | Cable |
| Product category | E57 Global Series |
| Connection type | 2-wire 2 m connection cable |
| Enclosure type | Cylinder, screw-thread |
| Voltage type | DC |
| Enclosure material finishing | Other |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Interface type | None |
| LED indicator | Status indication of Switching state: Red LED |
| Switch function type | Normally open contact |
| Load current | 3 - 100 mA (Ie) |
| Rated control supply voltage (Us) at DC - max | 30 V |
| Rated control supply voltage (Us) at DC - min | 10 V |
| Sensor length | 55 mm |
| Voltage rating - max | 30 V |
| Switching frequency | 200 Hz |
| Switching output type | PNP/NPN |
| Number of contact energized outputs with signalling function | 0 |
| Number of outputs (protected contact energized) | 0 |
| Number of outputs (protected semiconductor) | 0 |
| Number of outputs (semiconductor with signaling function) | 1 |
| Diameter sensor | 30 mm |
| Supply voltage - max | 30 V |
| Supply voltage - min | 10 V |
| Installation type | Not flat |
| Operational current (Ib) in the switched state at 24 V DC | 10 A |
| Safety performance level (EN ISO 13849-1) | None |
| SIL (IEC 61508) | None |
| Residual ripple | 10 % (Uₑ) |
| Actuation type | Metallic Target |
| Category (EN 954-1) | B |
| Repeatability | 2 % |
| Switching hysteresis of Sn | 15 % |
| Voltage drop (Ud) | 6 V |
| Residual current | 0.8 mA (through the load in the blocked state at 230 V AC and 24 V DC) |
| Temperature drift of sn | 10 % |
| Rated switching distance (Sn) - max | 25 mm |
