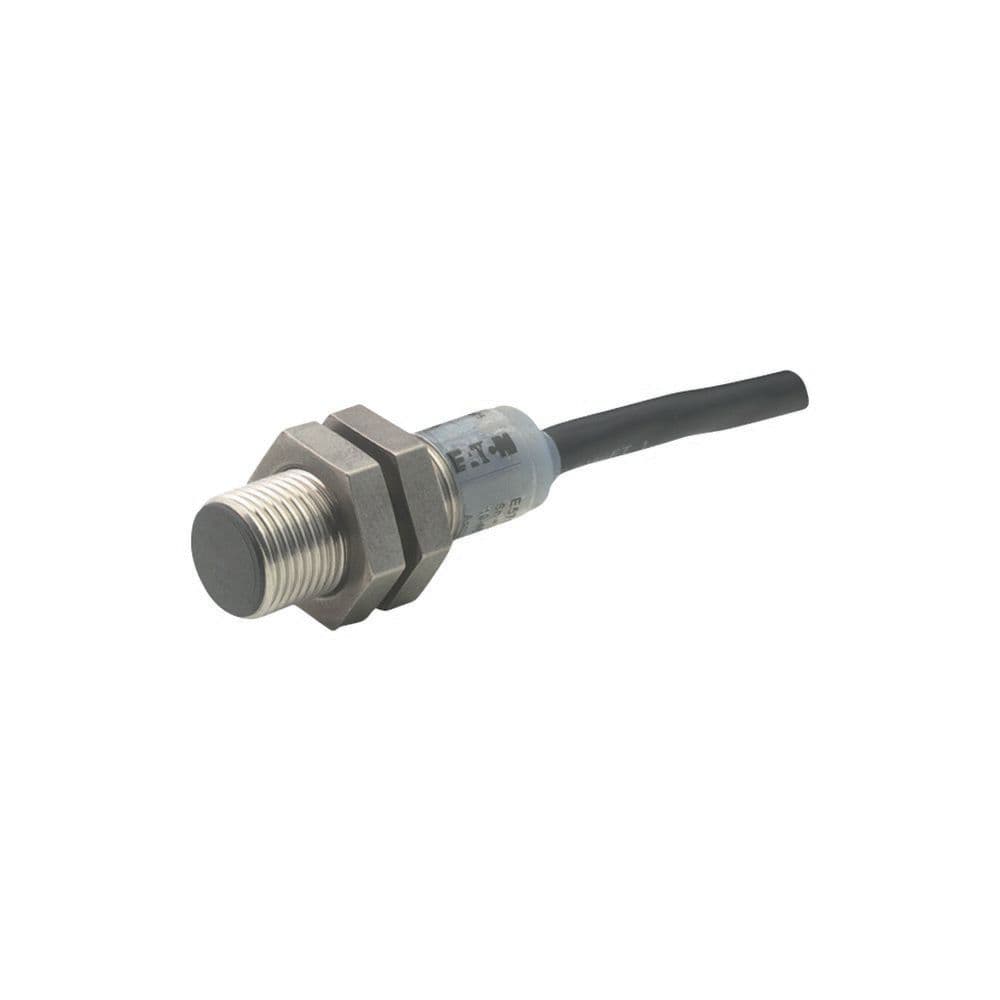

Eaton Moeller® series E57 Proximity switch

Name: Eaton Moeller® series E57 Proximity switch
Brand: Eaton
SKU: 136094

رقم القطعة: 136094

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series E57 Proximity switch

المواصفات

Ambient operating temperature - max	70 °C
Ambient operating temperature - min	-25 °C
Number of contacts (normally open contacts)	1
Product Name	Eaton Moeller® series E57 Proximity switch
Catalog Number	136094
Model Code	E57SAL12A4
EAN	4015081328871
Product Length/Depth	127 mm
Product Height	154.94 mm
Product Width	53.34 mm
Product Weight	0.23 kg
Certifications	IEC/EN 60947-5-2 UL UL File No.: E166051 CSA CSA File No.: 50513 UL Category Control No.: NRKH, NRKH7 UL 508 CE CSA Class No.: 3211-03 CSA-C22.2 No. 14
Source URL	https://www.eaton.com/gb/en-gb/skuPage.136094.html
Type	Inductive sensor
Degree of protection	IP67 NEMA 4X, 6, 13
Enclosure material	Metal
Mounting method	Flush mounting
Material	Stainless steel
Shock resistance	30 g, Mechanical, Shock duration 11 ms
Electric connection type	Cable
Product category	E57 Premium+ Short-Series
Connection type	2-wire 2 m connection cable
Enclosure type	Cylinder, screw-thread
Voltage type	AC
Enclosure material finishing	Other
Explosion safety category for dust	None
Explosion safety category for gas	None
Interface type	None
LED indicator	Status indication of Switching state: Red LED
Switch function type	Normally open contact
Load current	1 - 500 mA (Ie, at 25 °C) 1 - 250 mA (Ie, 70 °C)
Sensor length	62 mm
Voltage rating - max	250 V
Switching frequency	20 Hz
Switching output type	Two-wire
Number of contact energized outputs with signalling function	0
Number of outputs (protected contact energized)	0
Number of outputs (protected semiconductor)	0
Number of outputs (semiconductor with signaling function)	1
Rated control supply voltage (Us) at AC, 50 Hz - max	250 V
Rated control supply voltage (Us) at AC, 50 Hz - min	20 V
Rated control supply voltage (Us) at AC, 60 Hz - max	250 V
Rated control supply voltage (Us) at AC, 60 Hz - min	20 V
Diameter sensor	12 mm
Supply voltage - max	250 V
Supply voltage - min	20 V
Installation type	Concise
Operational current (Ib) in the switched state at 24 V DC	10 A
Safety performance level (EN ISO 13849-1)	None
SIL (IEC 61508)	None
Actuation type	Metallic Target
Category (EN 954-1)	B
Repeatability	3 %
Switching hysteresis of Sn	20 %
Voltage drop (Ud)	2.5 V
Residual current	0.1 mA (through the load in the blocked state at 230 V AC and 24 V DC)
Temperature drift of sn	10 %
Rated switching distance (Sn) - max	2 mm
