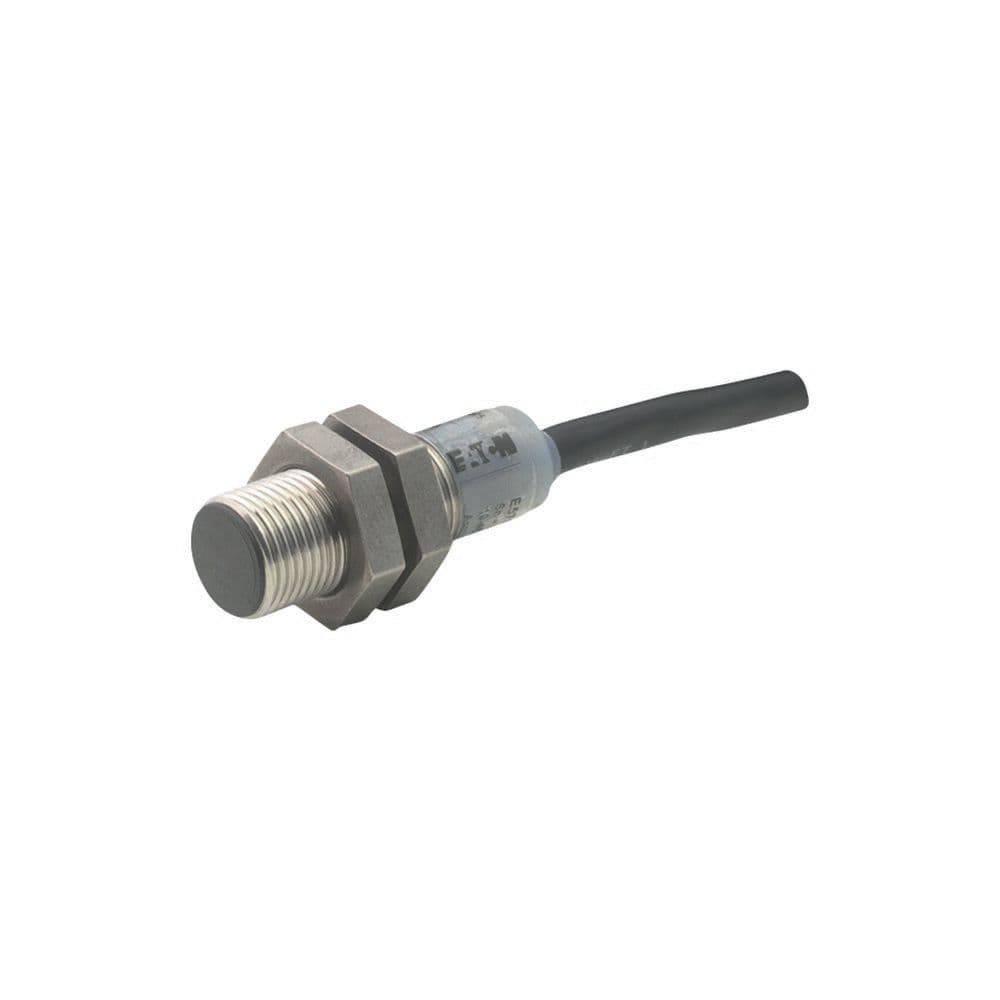

Eaton Moeller® series E57 Proximity switch
رقم القطعة: 136139
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Eaton Moeller® series E57 Proximity switch
المواصفات
| Ambient operating temperature - max | 70 °C |
|---|---|
| Ambient operating temperature - min | -25 °C |
| Number of contacts (normally closed contacts) | 1 |
| Product Name | Eaton Moeller® series E57 Proximity switch |
| Catalog Number | 136139 |
| Model Code | E57SBL12A2E |
| EAN | 4015081329328 |
| Product Length/Depth | 160.02 mm |
| Product Height | 43.18 mm |
| Product Width | 129.54 mm |
| Product Weight | 0.2 kg |
| Certifications | CSA File No.: 50513 UL File No.: E166051 CSA CSA-C22.2 No. 14 CE IEC/EN 60947-5-2 CSA Class No.: 3211-03 UL Category Control No.: NRKH, NRKH7 UL 508 UL |
| Source URL | https://www.eaton.com/gb/en-gb/skuPage.136139.html |
| Type | Inductive sensor |
| Degree of protection | IP67 NEMA 4X, 6, 13 |
| Enclosure material | Metal |
| Mounting method | Non-flush mounting |
| Material | Stainless steel |
| Shock resistance | 30 g, Mechanical, Shock duration 11 ms |
| Electric connection type | Cable |
| Product category | E57 Premium+ Short-Series |
| Connection type | 2-wire 2 m connection cable |
| Enclosure type | Cylinder, screw-thread |
| Voltage type | AC |
| Enclosure material finishing | Other |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Interface type | None |
| LED indicator | Status indication of Switching state: Red LED |
| Switch function type | Breaker contact |
| Load current | 5 - 250 mA (Ie, at 25 °C) 5 - 200 mA (Ie, 70 °C) |
| Sensor length | 52 mm |
| Voltage rating - max | 250 V |
| Switching frequency | 60 Hz |
| Switching output type | PNP/NPN |
| Number of contact energized outputs with signalling function | 0 |
| Number of outputs (protected contact energized) | 0 |
| Number of outputs (protected semiconductor) | 0 |
| Number of outputs (semiconductor with signaling function) | 1 |
| Rated control supply voltage (Us) at AC, 50 Hz - max | 250 V |
| Rated control supply voltage (Us) at AC, 50 Hz - min | 20 V |
| Rated control supply voltage (Us) at AC, 60 Hz - max | 250 V |
| Rated control supply voltage (Us) at AC, 60 Hz - min | 20 V |
| Diameter sensor | 12 mm |
| Supply voltage - max | 250 V |
| Supply voltage - min | 20 V |
| Installation type | Not flat |
| Safety performance level (EN ISO 13849-1) | None |
| SIL (IEC 61508) | None |
| Actuation type | Metallic Target |
| Category (EN 954-1) | B |
| Repeatability | 3 % |
| Switching hysteresis of Sn | 20 % |
| Voltage drop (Ud) | 12 V |
| Residual current | 2 mA (through the load in the blocked state at 230 V AC and 24 V DC) |
| Temperature drift of sn | 10 % |
| Rated switching distance (Sn) - max | 4 mm |
