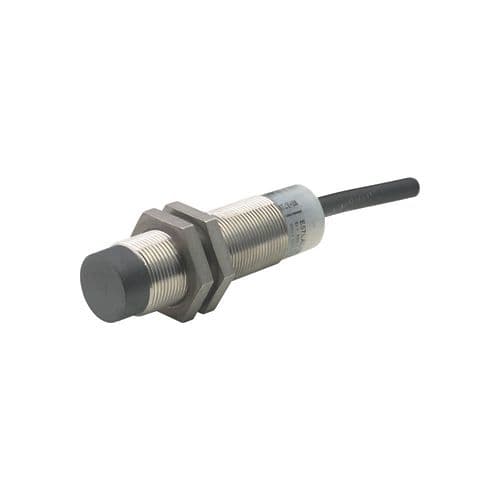

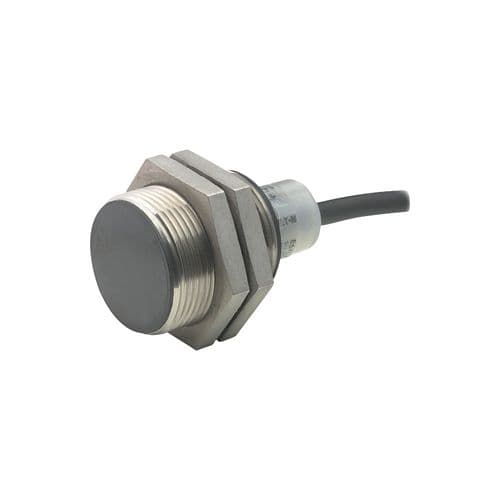

Eaton Moeller® series E57 Proximity switch

Name: Eaton Moeller® series E57 Proximity switch
Brand: Eaton
SKU: 136158

رقم القطعة: 136158

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series E57 Proximity switch

المواصفات

Ambient operating temperature - max	70 °C
Ambient operating temperature - min	-25 °C
Number of contacts (normally closed contacts)	1
Product Name	Eaton Moeller® series E57 Proximity switch
Catalog Number	136158
Model Code	E57SBL18A4EA
EAN	4015081329519
Product Length/Depth	157.48 mm
Product Height	50.8 mm
Product Width	127 mm
Product Weight	0.25 kg
Certifications	IEC/EN 60947-5-2 CE UL 508 CSA Class No.: 3211-03 CSA-C22.2 No. 14 UL Category Control No.: NRKH, NRKH7 UL CSA CSA File No.: 50513 UL File No.: E166051
Source URL	https://www.eaton.com/gb/en-gb/skuPage.136158.html
Type	Inductive sensor
Degree of protection	IP67 NEMA 4X, 6, 13
Enclosure material	Metal
Mounting method	Non-flush mounting
Material	Stainless steel
Shock resistance	30 g, Mechanical, Shock duration 11 ms
Electric connection type	Connector M12
Product category	E57 Premium+ Short-Series
Connection type	Plug-in connection M12 x 1 2-wire
Enclosure type	Cylinder, screw-thread
Voltage type	AC
Enclosure material finishing	Other
Explosion safety category for dust	None
Explosion safety category for gas	None
Interface type	None
LED indicator	Status indication of Switching state: Red LED
Switch function type	Breaker contact
Load current	1 - 250 mA (Ie, 70 °C) 1 - 500 mA (Ie, at 25 °C)
Sensor length	69 mm
Voltage rating - max	250 V
Switching frequency	20 Hz
Switching output type	Two-wire
Number of contact energized outputs with signalling function	0
Number of outputs (protected contact energized)	0
Number of outputs (protected semiconductor)	0
Number of outputs (semiconductor with signaling function)	1
Rated control supply voltage (Us) at AC, 50 Hz - max	250 V
Rated control supply voltage (Us) at AC, 50 Hz - min	20 V
Rated control supply voltage (Us) at AC, 60 Hz - max	250 V
Rated control supply voltage (Us) at AC, 60 Hz - min	20 V
Diameter sensor	18 mm
Supply voltage - max	250 V
Supply voltage - min	20 V
Installation type	Not flat
Operational current (Ib) in the switched state at 24 V DC	10 A
Safety performance level (EN ISO 13849-1)	None
SIL (IEC 61508)	None
Actuation type	Metallic Target
Category (EN 954-1)	B
Repeatability	3 %
Switching hysteresis of Sn	20 %
Voltage drop (Ud)	2.5 V
Residual current	0.1 mA (through the load in the blocked state at 230 V AC and 24 V DC)
Temperature drift of sn	10 %
Rated switching distance (Sn) - max	8 mm
