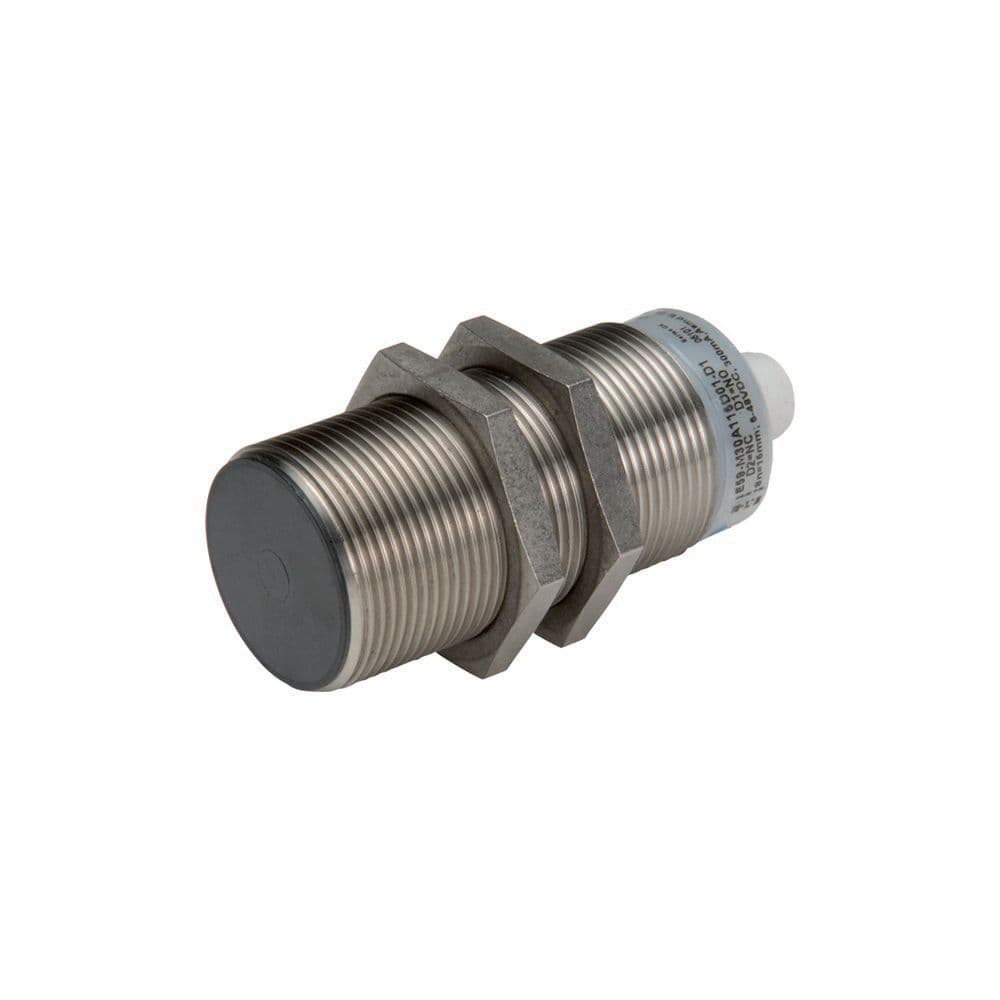

Eaton E59 AccuProx analog inductive proximity sensor

Name: Eaton E59 AccuProx analog inductive proximity sensor
Brand: Eaton
SKU: 136223

رقم القطعة: 136223

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton E59 AccuProx analog inductive proximity sensor

المواصفات

Ambient operating temperature - max	70 °C
Ambient operating temperature - min	-40 °C
Functions	Protection against polarity reversal Protection against wire breakage Short-circuit protection
Number of contacts (normally open contacts)	1
Product Name	Eaton E59 AccuProx analog inductive proximity sensor
Catalog Number	136223
Model Code	E59-M30A115D01-D1
EAN	4015081330164
Product Length/Depth	152.4 mm
Product Height	44.45 mm
Product Width	127 mm
Product Weight	0.45 kg
Certifications	CE Certified by UL for use in Canada UL CSA File No.: UL report applies to both US and Canada CSA-C22.2 No. 14 UL 508 UL File No.: E166051 UL Category Control No.: NRKH, NRKH7 IEC/EN 60947-5-2
Source URL	https://www.eaton.com/gb/en-gb/skuPage.136223.html
Type	Inductive sensor
Degree of protection	IP67 IP69 NEMA 4X, 6, 13
Enclosure material	Metal
Mounting method	Flush mounting
Material	Stainless steel
Shock resistance	30 g, Mechanical, Shock duration 11 ms
Electric connection type	Connector M12
Product category	iProx Series
Connection type	Plug-in connection M12 x 1 3-wire
Enclosure type	Cylinder, screw-thread
Voltage type	DC
Enclosure material finishing	Other
Explosion safety category for dust	None
Explosion safety category for gas	None
Interface type	None
LED indicator	Status indication of Operating voltage: Green LED Status indication of Switching state: Red LED
Switch function type	Normally open contact
Load current	1 - 300 mA (Ie)
Rated control supply voltage (Us) at DC - max	48 V
Rated control supply voltage (Us) at DC - min	6 V
Sensor length	74 mm
Voltage rating - max	48 V
Switching frequency	240 Hz
Switching output type	PNP/NPN
Number of contact energized outputs with signalling function	0
Number of outputs (protected contact energized)	0
Number of outputs (protected semiconductor)	0
Number of outputs (semiconductor with signaling function)	1
Diameter sensor	30 mm
Supply voltage - max	48 V
Supply voltage - min	6 V
Installation type	Concise
Operational current (Ib) in the switched state at 24 V DC	15 A
Safety performance level (EN ISO 13849-1)	None
SIL (IEC 61508)	None
Actuation type	Metallic Target
Category (EN 954-1)	B
Repeatability	1 %
Switching hysteresis of Sn	15 %
Voltage drop (Ud)	2.5 V
Residual current	0.15 mA (through the load in the blocked state at 230 V AC and 24 V DC)
Temperature drift of sn	10 %
Rated switching distance (Sn) - max	15 mm
