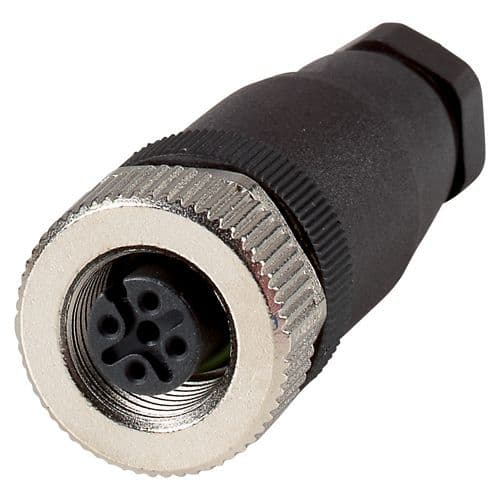

Eaton Moeller® series CSDS Accessory Coupling

Name: Eaton Moeller® series CSDS Accessory Coupling
Brand: Eaton
SKU: 136286

رقم القطعة: 136286

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series CSDS Accessory Coupling

Ambient operating temperature - max	85 °C
Ambient operating temperature - min	-40 °C
Product Name	Eaton Moeller® series CSDS Accessory Coupling
Catalog Number	136286
Model Code	CSDS4
EAN	4015081330751
Product Length/Depth	69.85 mm
Product Height	12.7 mm
Product Width	19.05 mm
Product Weight	0.02 kg
Certifications	CE
Source URL	https://www.eaton.com/gb/en-gb/skuPage.136286.html
Degree of protection	IP67
Enclosure material	Other
Electric connection type	Other
Number of poles	Four-pole
Thread size	12 M12
Rated operational voltage (Ue) - max	24 V
Rated operational current for specified heat dissipation (In)	1 A
Product category	Accessories
Connection type	Screwed terminal
Terminal capacity	0.25 - 0.75 mm², flexible 24 - 18 AWG, flexible
Enclosure material finishing	Other
Contact surface material	Other
Contact type	Bus
Degree of protection (mounted)	IP54
Connectable conductor cross section (fine strand) - max	0.75 mm²
Connectable conductor cross section (fine strand) - min	0.25 mm²
Connectable conductor cross section (solid-core) - max	0.75 mm²
Connectable conductor cross section (solid-core) - min	0.25 mm²
Diameter connector	14 mm
Inflammability class of insulation material (UL 94)	Other
Material thread ring	Other
Locking mechanism	Other
Housing type	Straight
Number of control contacts	4
Number of data contacts	0
Number of insertion cycles - min	0
Number of power contacts	0
