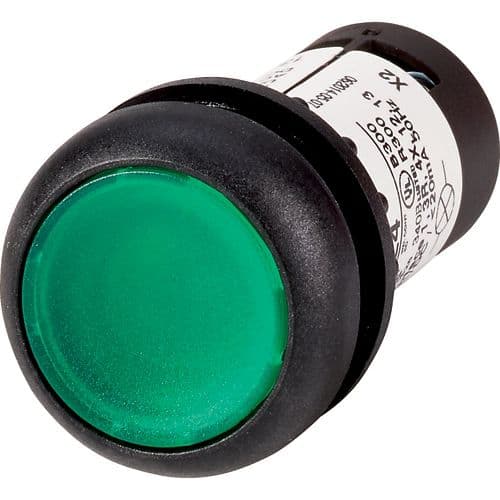

Eaton Moeller® series C22 Illuminated pushbutton actuator

Name: Eaton Moeller® series C22 Illuminated pushbutton actuator
Brand: Eaton
SKU: 136635

رقم القطعة: 136635

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series C22 Illuminated pushbutton actuator

Product Name	Eaton Moeller® series C22 Illuminated pushbutton actuator
Catalog Number	136635
Model Code	C22S-DL-G-K10-24
EAN	4015081334551
Product Length/Depth	55 mm
Product Height	30 mm
Product Width	30 mm
Product Weight	0.02 kg
Certifications	CSA File No.: 165628 CSA Class No.: 321103 CSA certified UL 508 VDE 0660 UL Category Control No.: NKCR UL Listed CE marking CSA-C22.2 No. 14-05 and 94-M91 UL File No.: E29184 IEC/EN 60947-5-1
Source URL	https://www.eaton.com/gb/en-gb/skuPage.136635.html
Catalog Notes	Contacts with safety function, by positive opening to IEC/EN 60947-5-1
Actuator function	Spring-return Momentary
Actuator color	Green
Actuating force	5 N
Actuator diameter	29.7 mm
